SP100SP - Hammond Power Solutions Spartan 100VA 208/416V Control Transformer 1-Phase

SP100SP

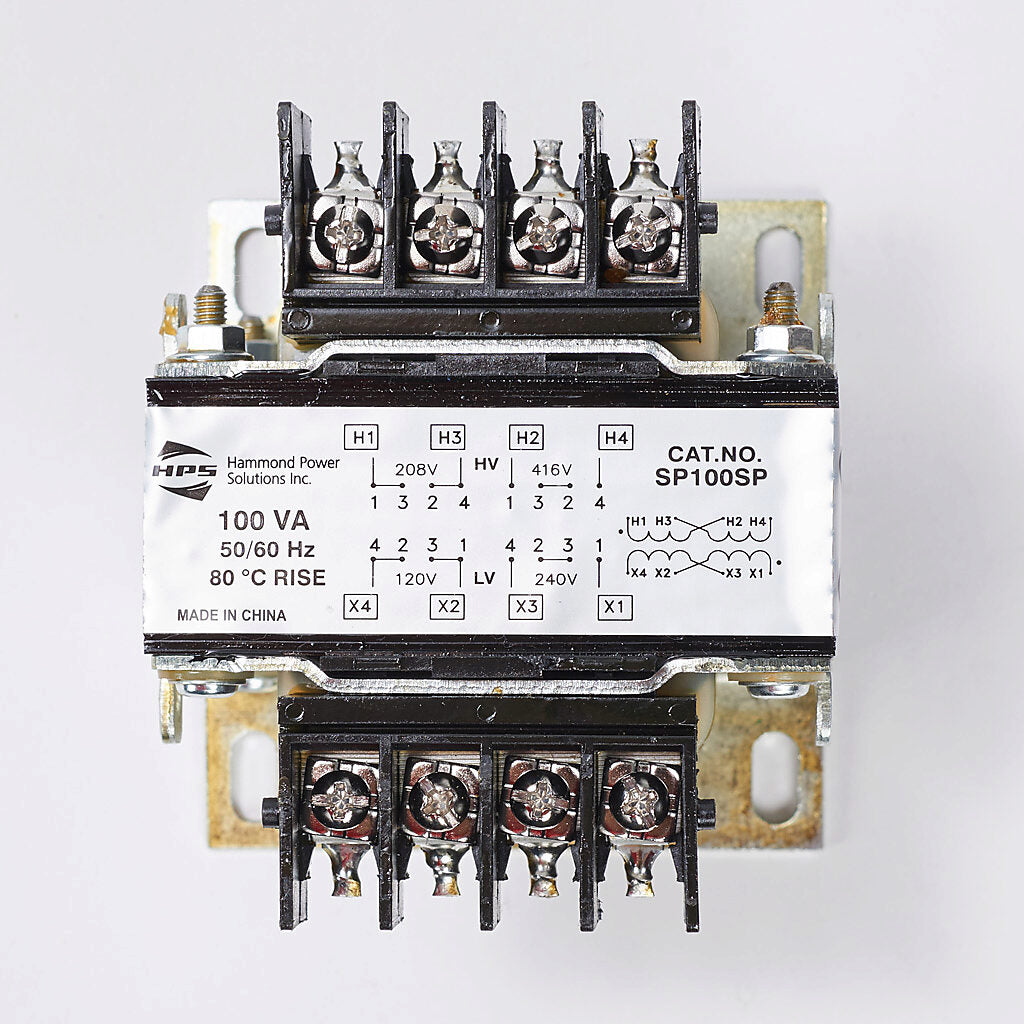

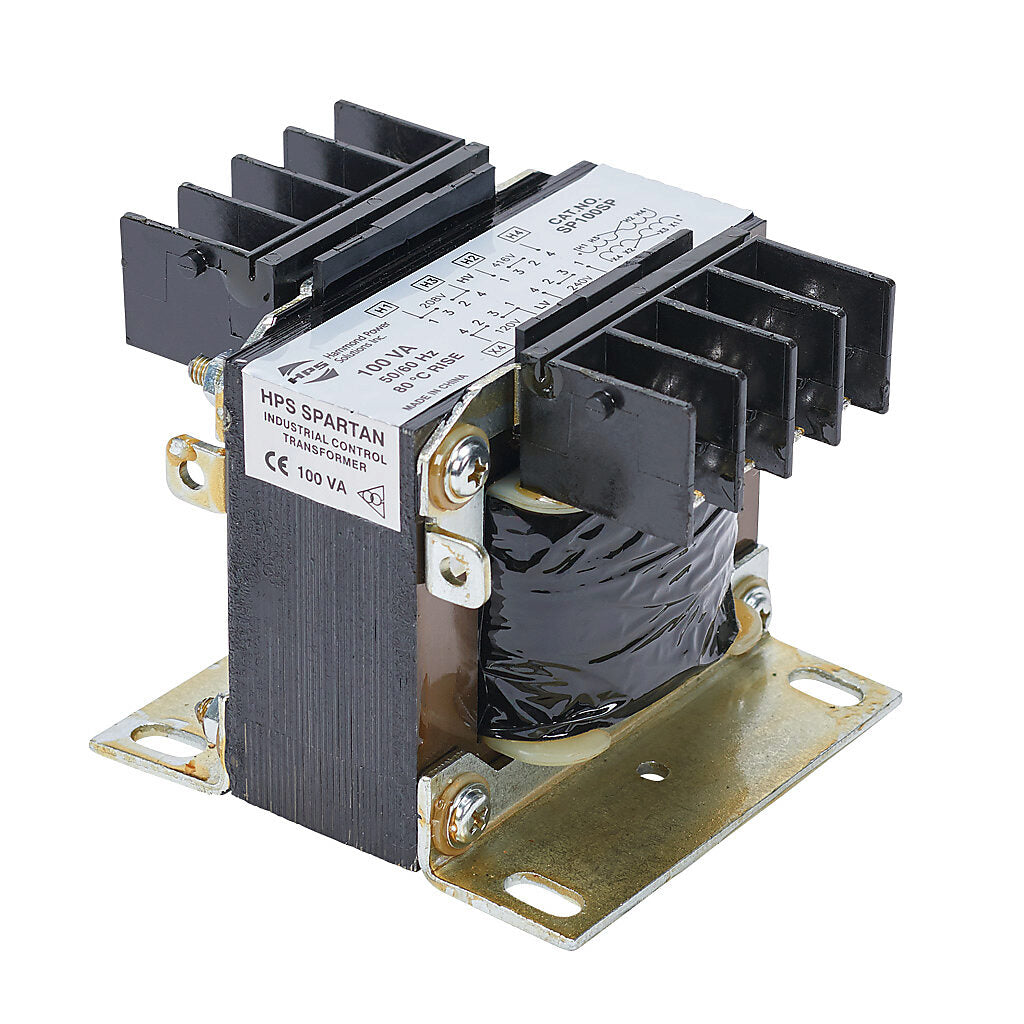

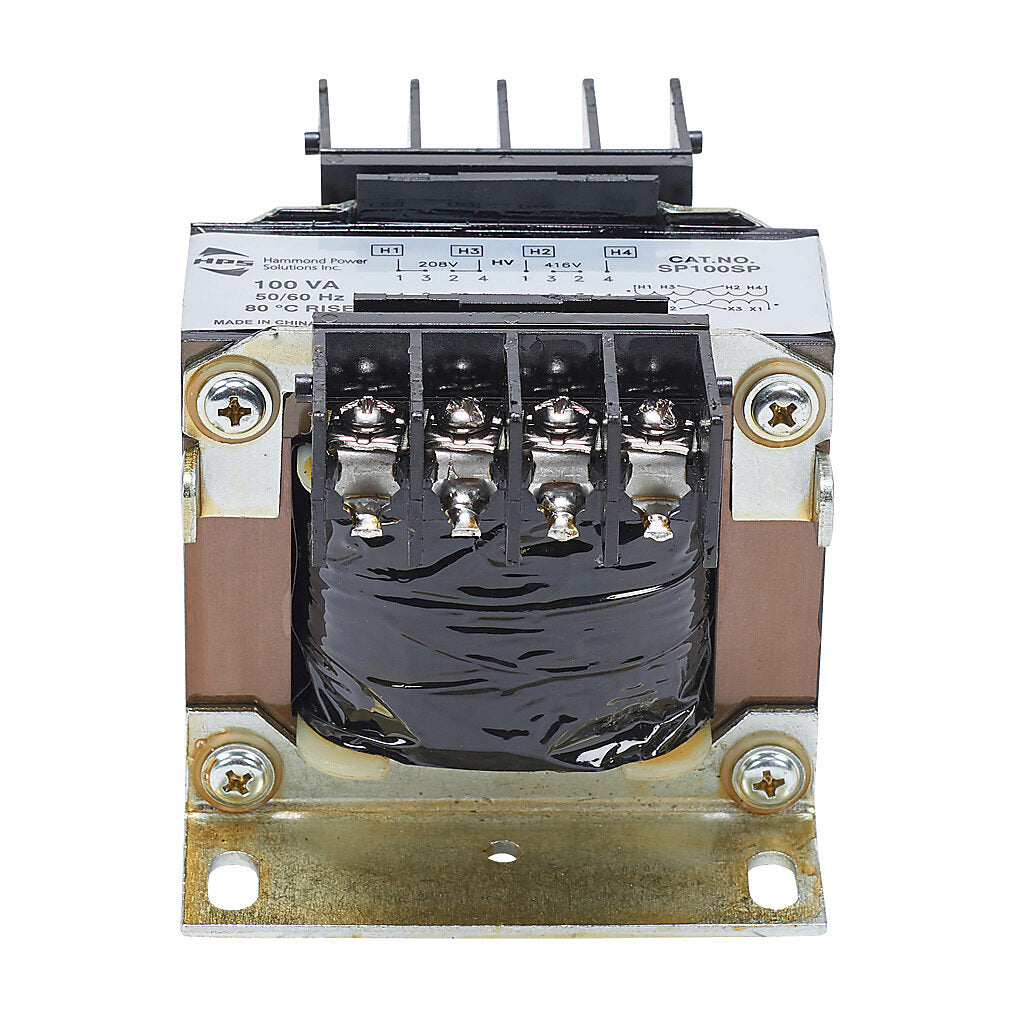

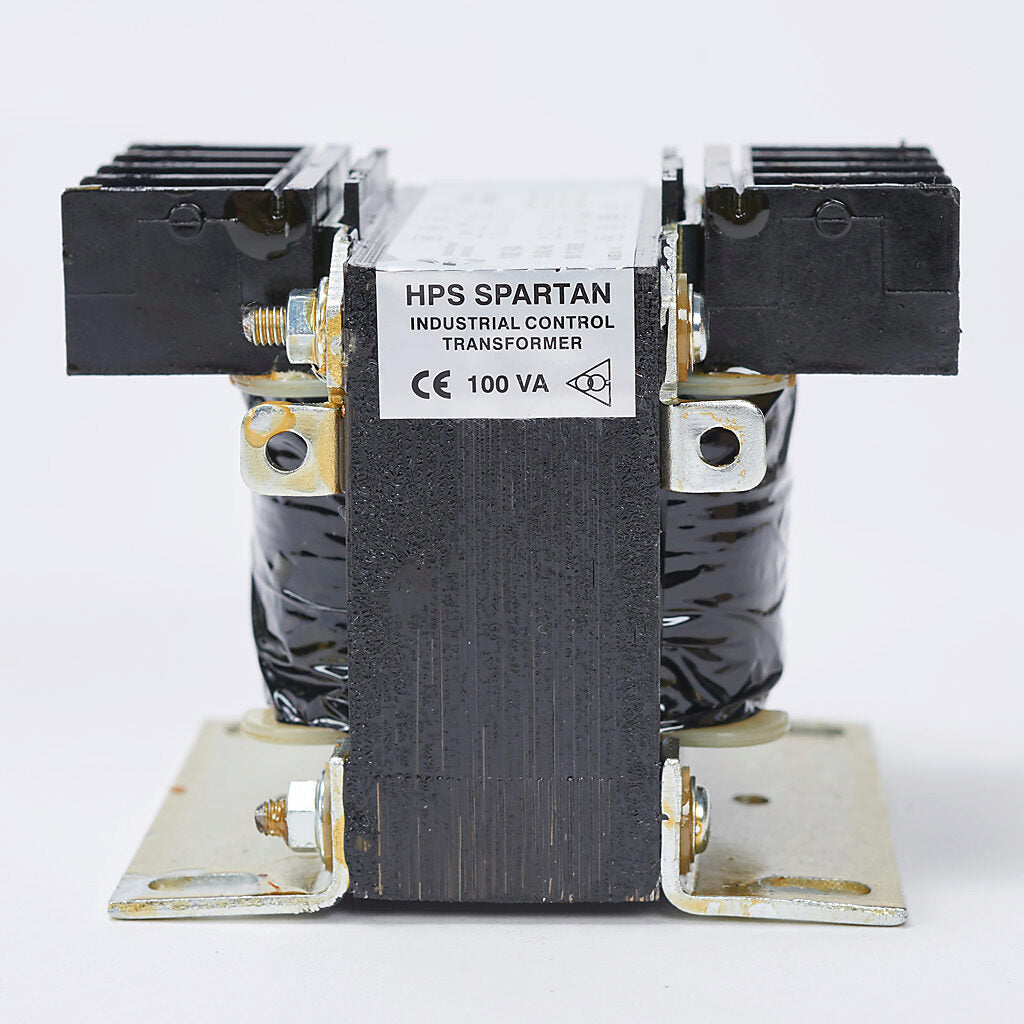

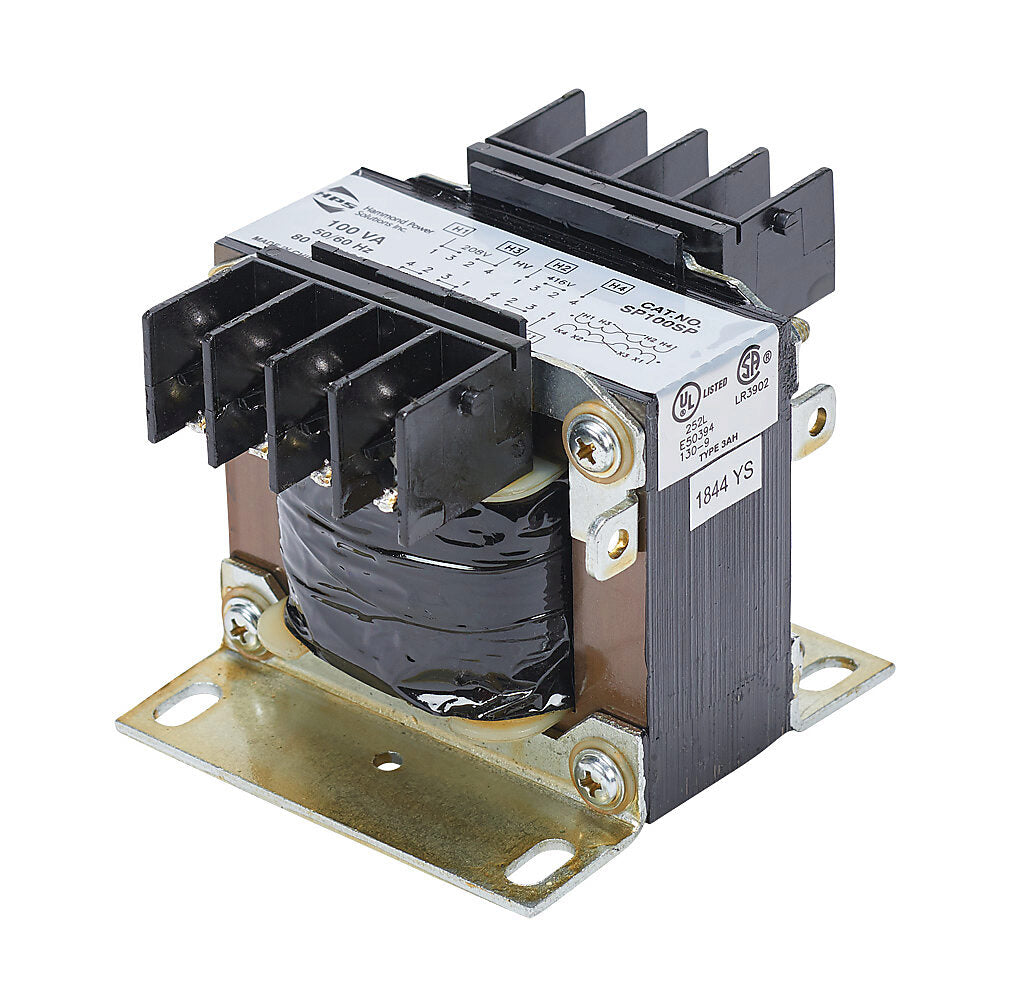

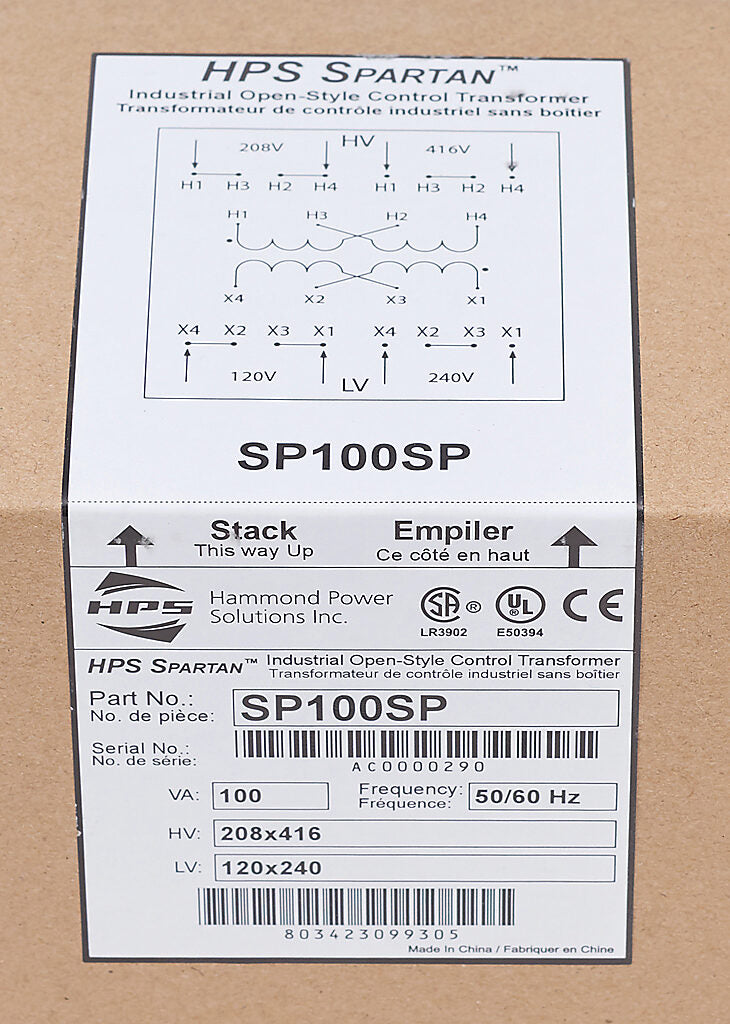

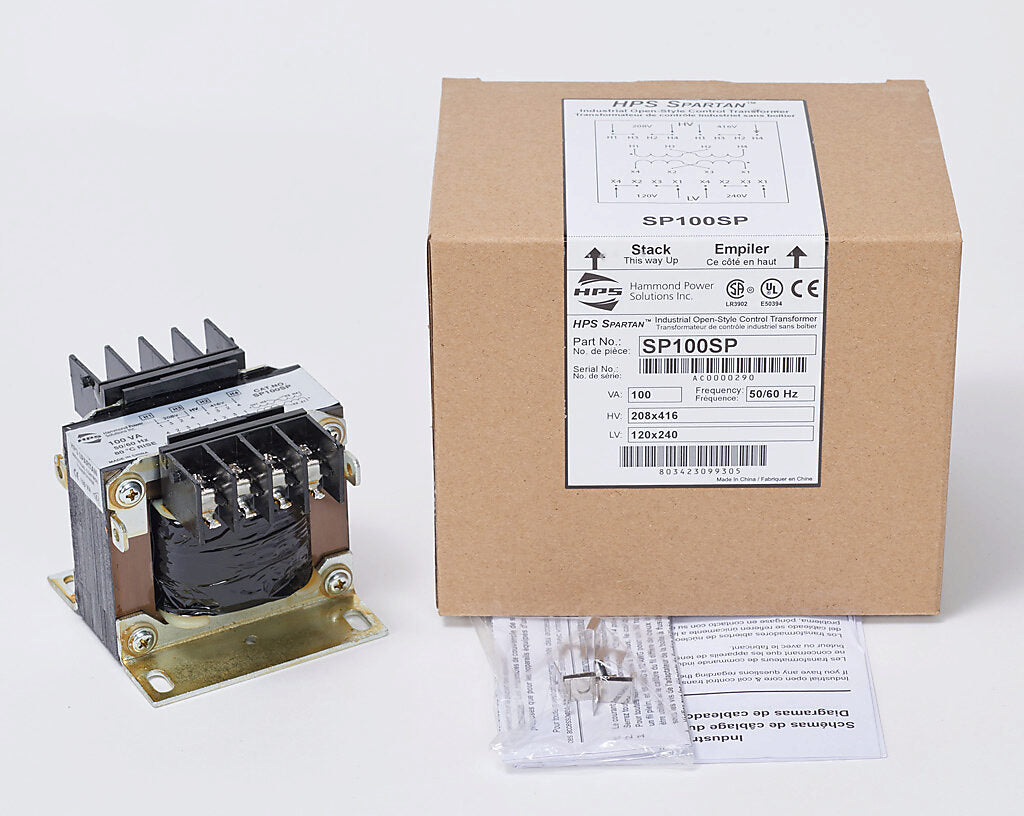

SP100SP is a Spartan series dry type control transformer designed for general purpose and industrial applications with 100 VA power rating. This open core and coil transformer features 208/416 VAC primary voltage, 120/240 VAC secondary voltage, and operates at 50/60 Hz frequency for single-phase applications. The unit includes solid terminal blocks with standard combination screw connections, copper wound coils with high dielectric strength insulation, bolted core construction, and vacuum impregnated polyester resin for durability. Maximum output current is 0.83/0.42 amperes with 130 degree C insulation rating and 40 degree C ambient temperature operation. Panel mounting capability with bolt-on mounting brackets and seismic qualification per International Building Code 2018 and ASCE 7-10 specifications make this transformer suitable for demanding industrial environments.

• 100 VA Power Rating
• 208/416 VAC Primary Voltage
• 120/240 VAC Secondary Voltage
• 1 Phase
• 50/60 Hz Frequency
• 0.83/0.42 A Maximum Output
• Open Core and Coil Enclosure
• Screw Terminal Connection
• Panel Mount Configuration
• 130 Degree C Insulation

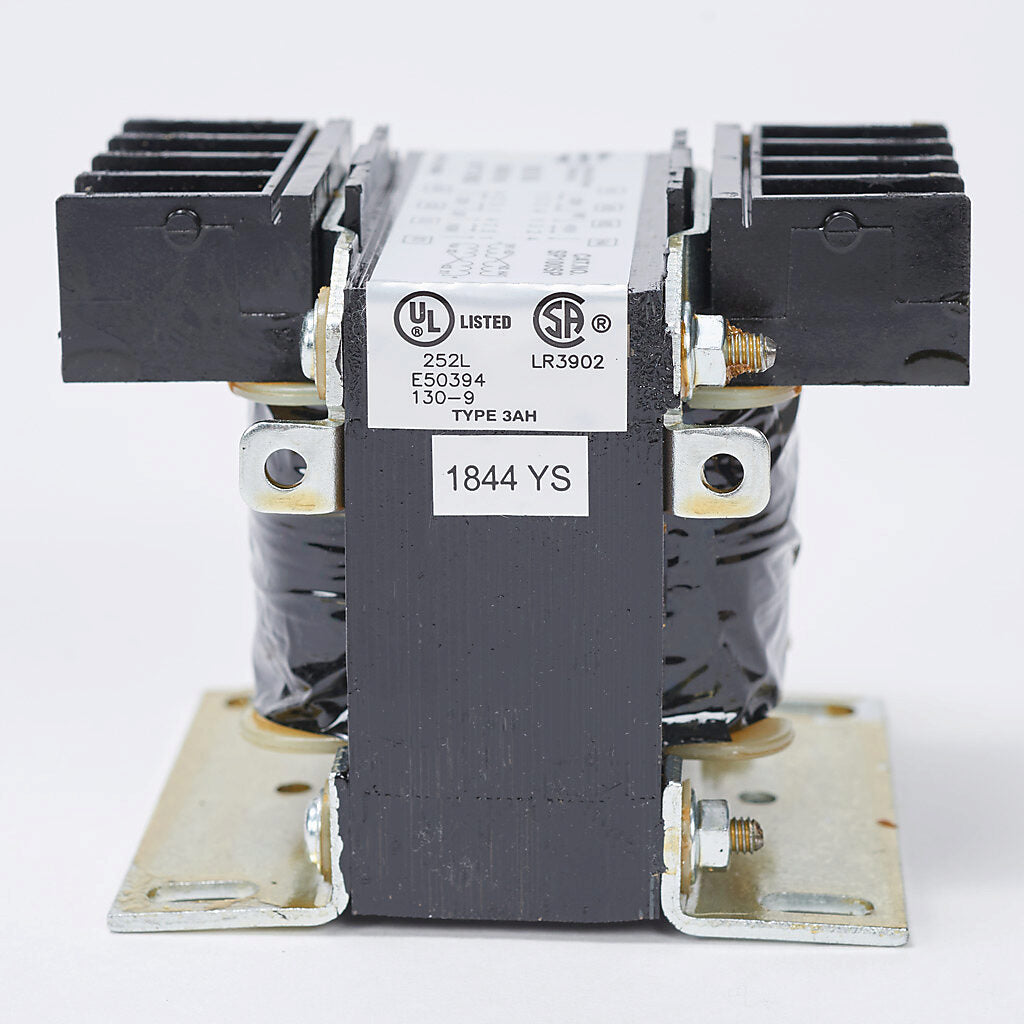

• UL, CSA, CE Certified
• Dimensions: 2.99 in L x 3.54 in W x 2.85 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP100SP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 208x416
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.148124
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423099305
• Weight : 3
• Certification : CSA, UL, CE
