SP100MQMJ - Hammond Power Solutions 100VA 1-Phase Control Transformer 240/480V Primary 120/240V Secondary Panel Mount

SP100MQMJ

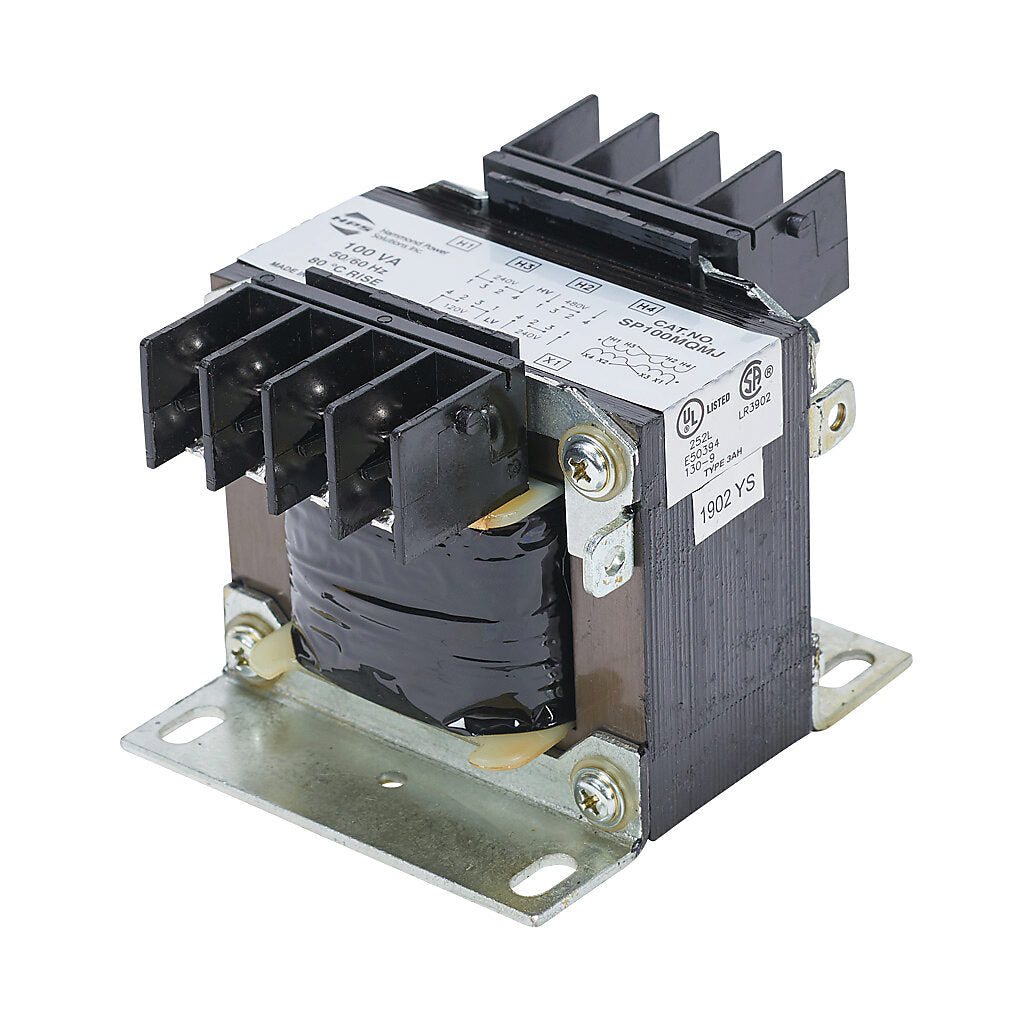

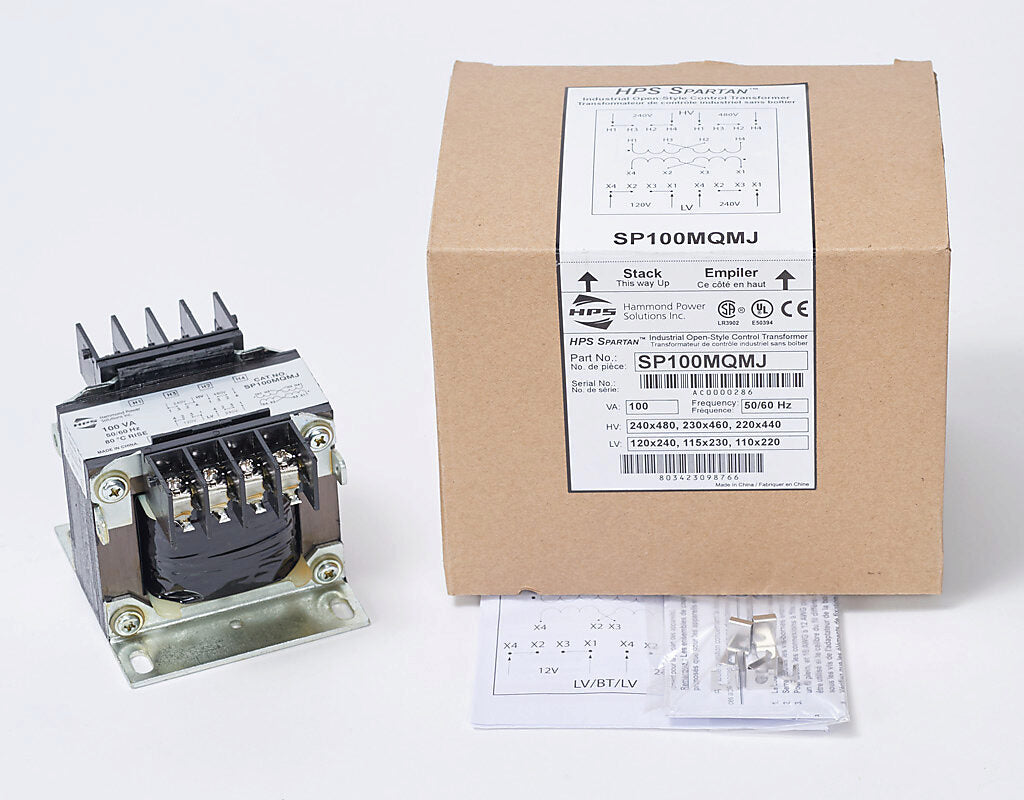

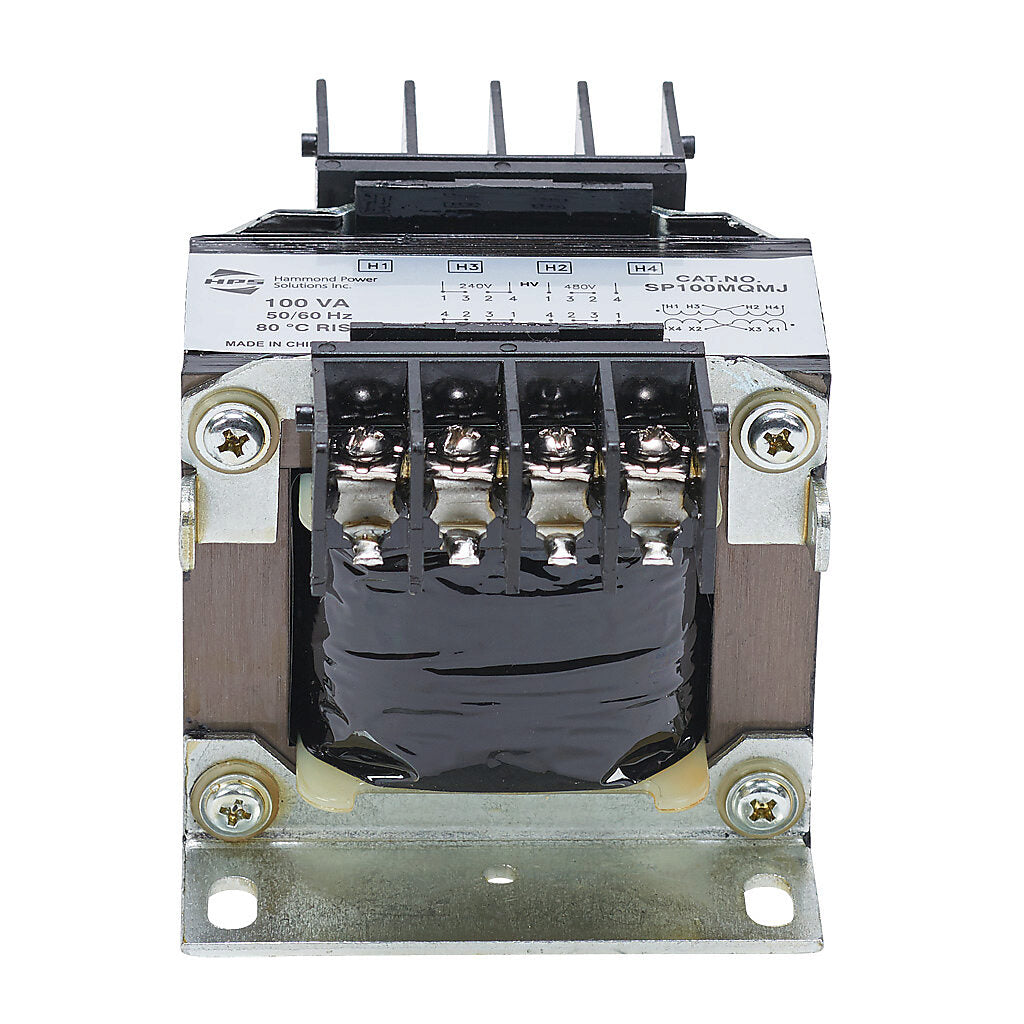

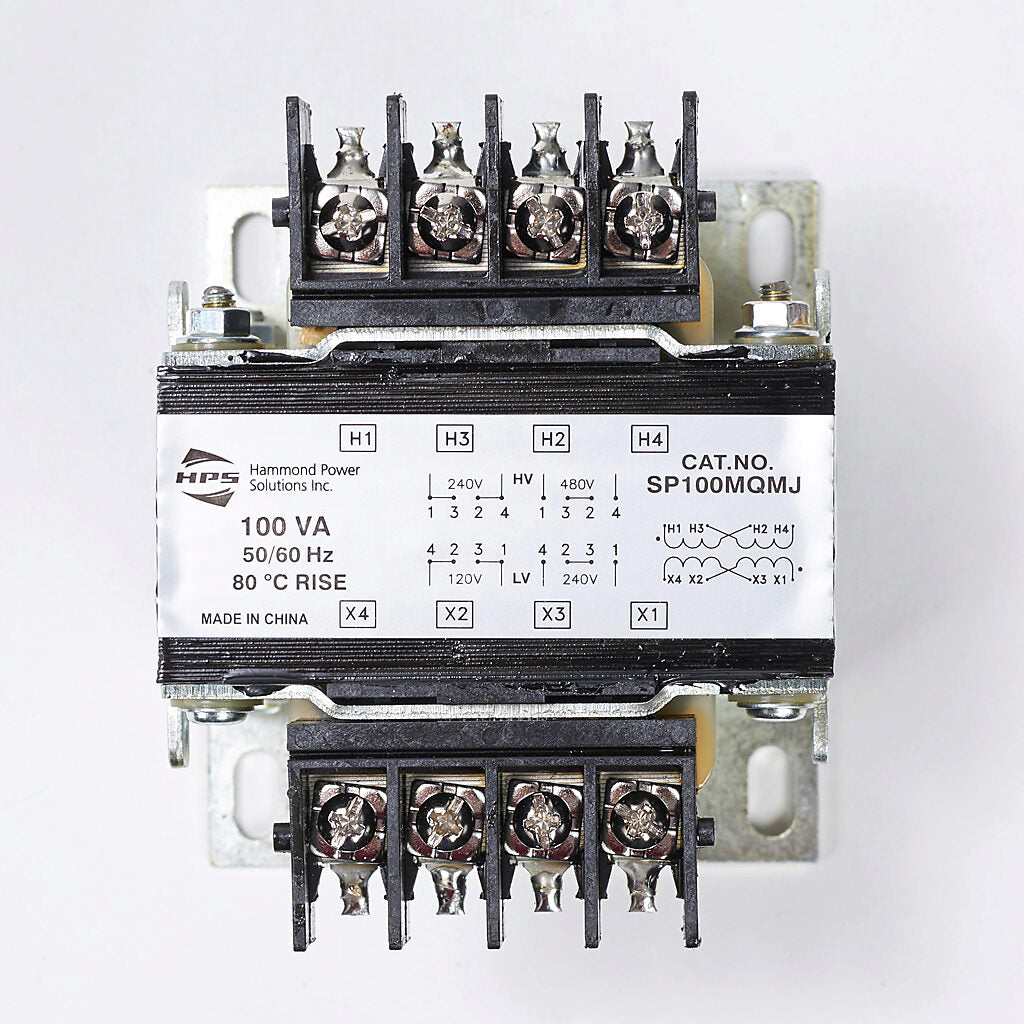

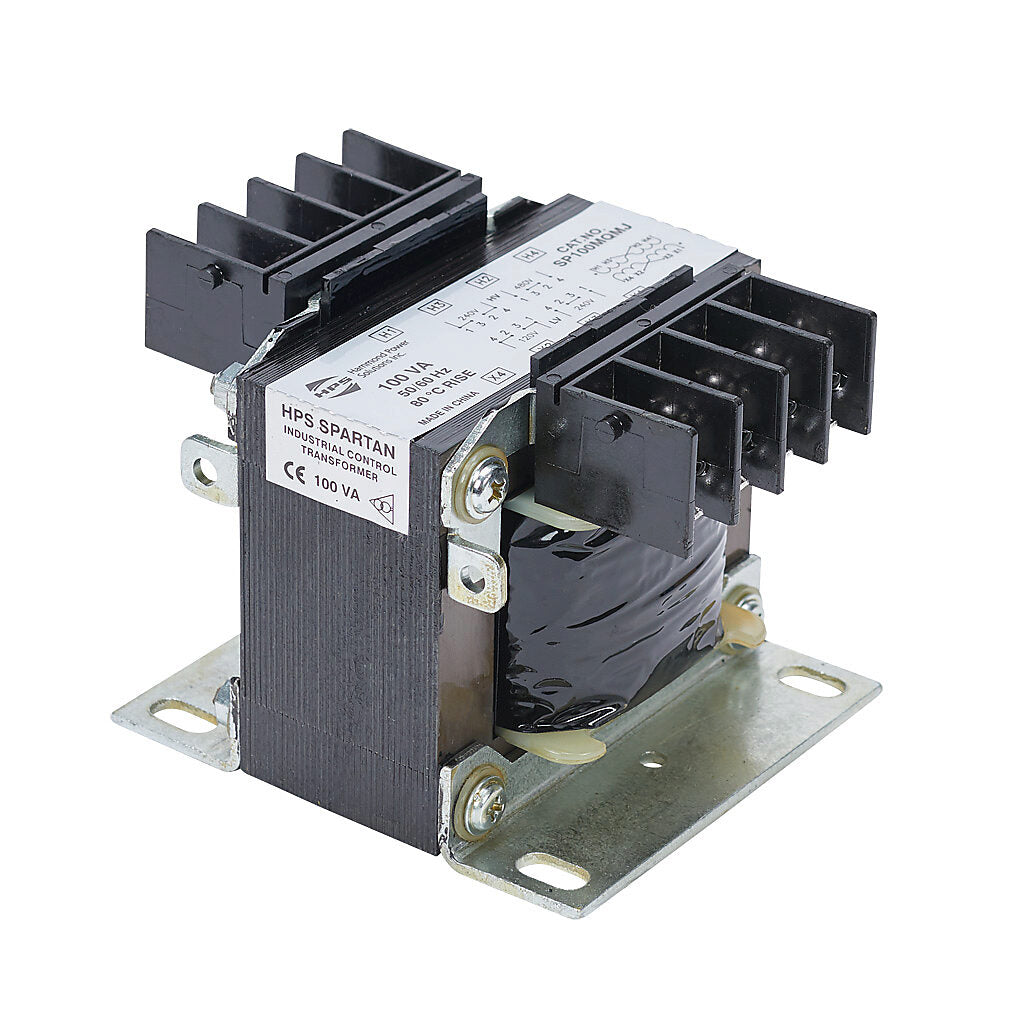

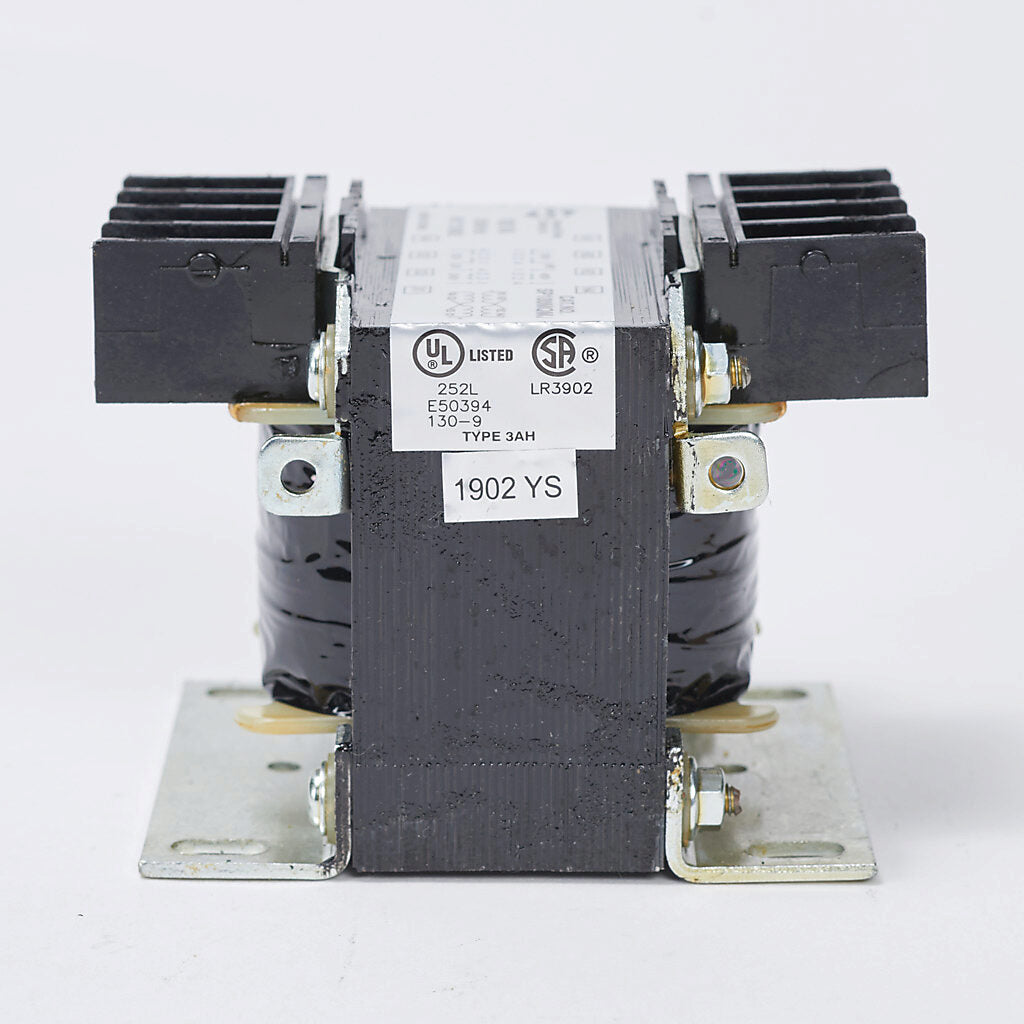

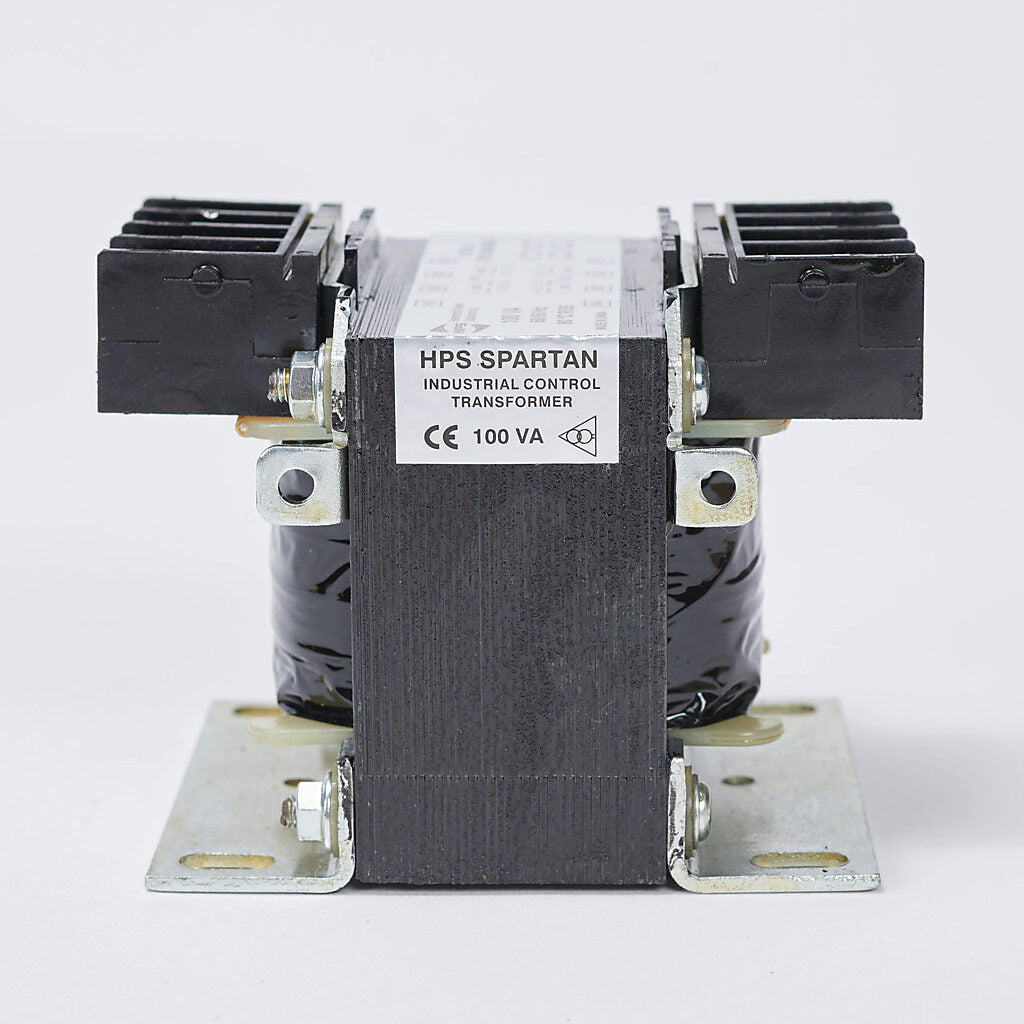

SP100MQMJ is a 100VA single-phase control transformer from Hammond Power Solutions designed for industrial and light duty applications.This open core control transformer features a primary voltage of 240/480V and a secondary voltage of 120/240V, operating at 50/60 Hz. It is part of the HPS Spartan series, known for economical and reliable performance in HVAC, motor control, alarm, and lighting circuits. The unit includes molded terminal blocks and is panel mountable, meeting NEMA standards with UL, CSA, and CE certifications.

• Power Rating: 100VA
• Phase: Single Phase
• Primary Voltage: 240/480V
• Secondary Voltage: 120/240V
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Series: HPS Spartan
• Open Core Design
• Certifications: UL Listed, CSA Certified, CE Marked
• Application: Industrial and Light Duty Control Circuits
• Terminal Blocks: Molded

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP100MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 0.148124
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block

Product Data

• UPC : 803423098766
• Weight : 3
• Certification : CSA, UL, CE
