SP1000ACP - Hammond Power Solutions 1KVA Industrial Control Transformer 600/480V to 120x240V 1-Phase Slot Mount

SP1000ACP

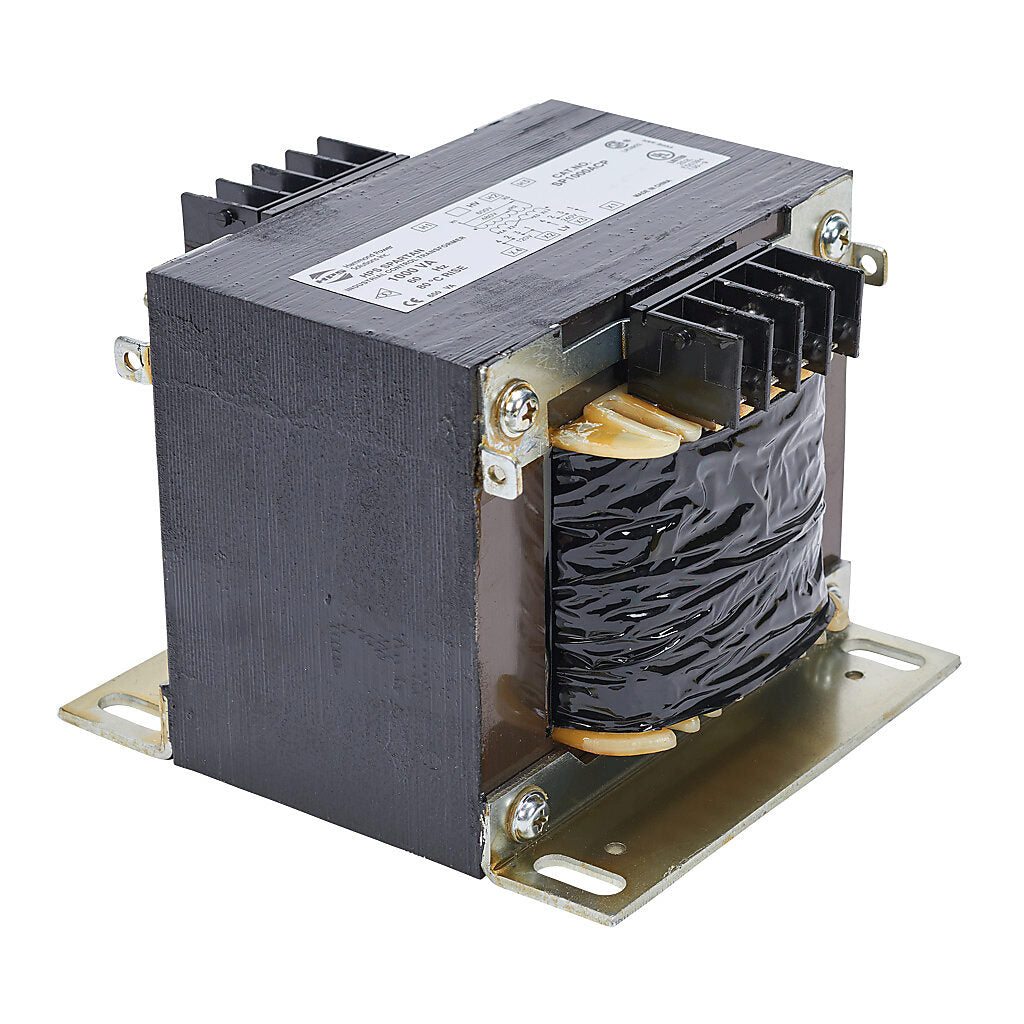

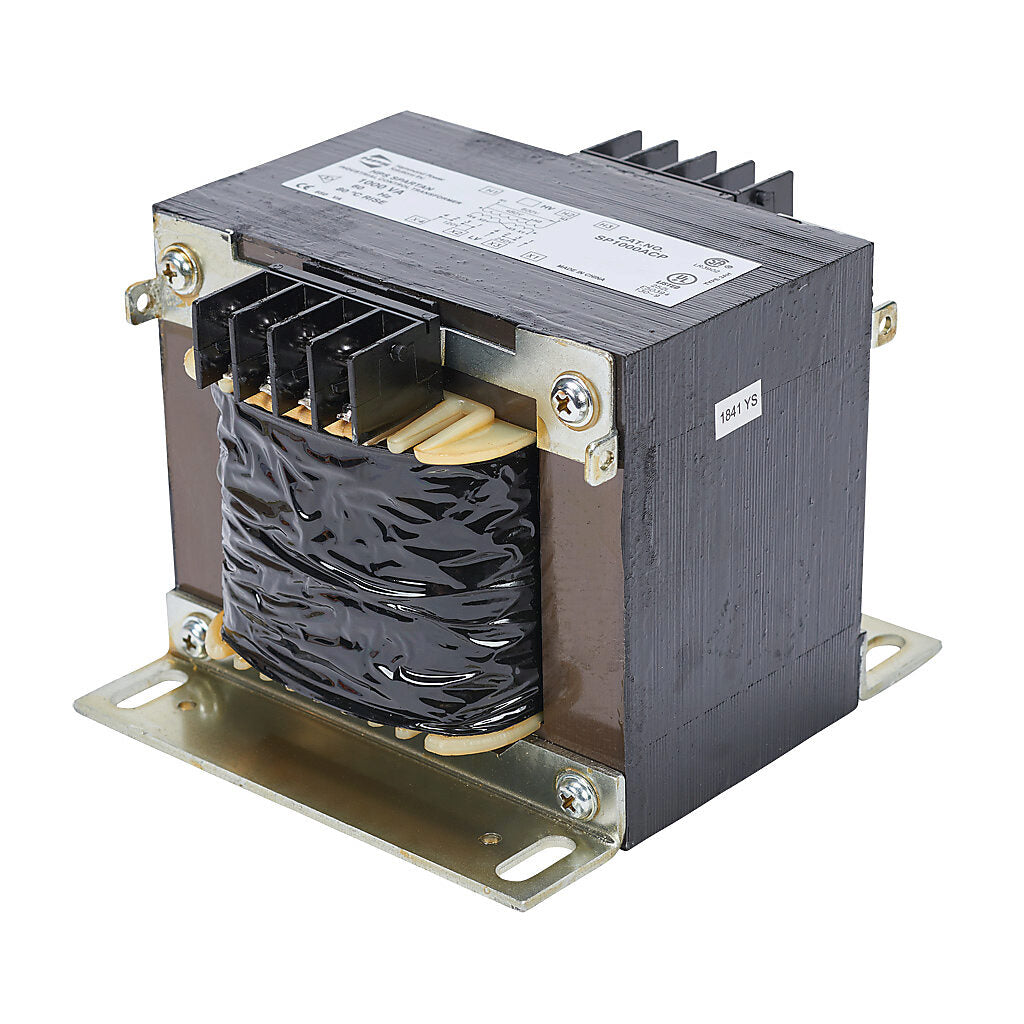

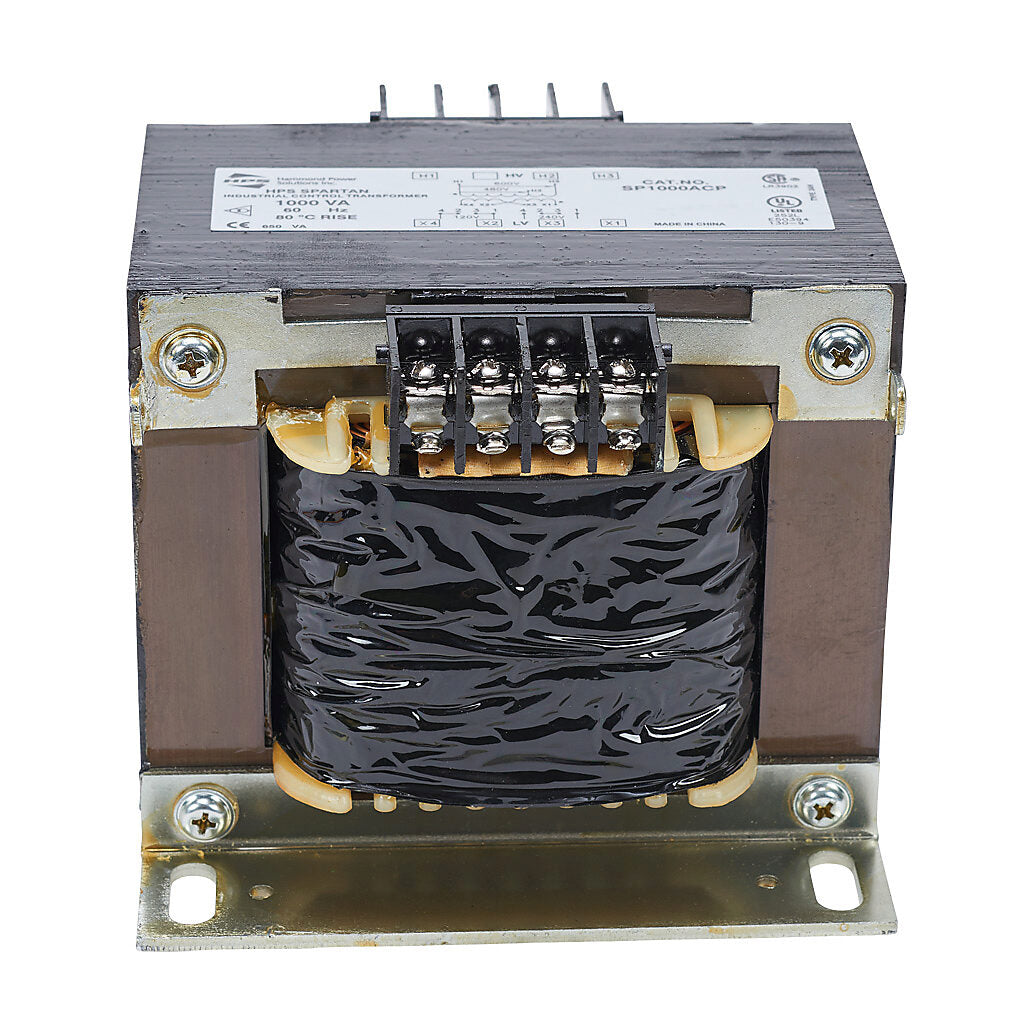

SP1000ACP is a 1KVA industrial control transformer from Hammond Power Solutions designed for general purpose and light duty industrial applications.This transformer features a 600/480 Volt primary voltage and a 120 x 240 Volt secondary voltage with single-phase operation. It is part of the Spartan series, known for open core and coil construction, molded terminal blocks, and slot mounting. The unit is UL listed, CSA certified, and CE marked, suitable for HVAC, motor control circuits, lighting, and signal systems. It operates at 60 Hz frequency and includes primary and secondary voltage links/jumpers standard.

• Power Rating: 1 KVA
• Primary Voltage: 600/480 Volts
• Secondary Voltage: 120 x 240 Volts
• Phase: Single-Phase
• Mounting Type: Slot Mount
• Frequency: 60 Hz
• Series: Spartan
• Terminal Type: Molded Terminal Blocks
• Certifications: UL Listed, CSA Certified, CE Marked
• Construction: Open Core and Coil
• Application: Industrial Control, HVAC, Motor Control, Lighting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SP1000ACP
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 60Hz
• Primary Voltage : 600, 480
• Primary Connection : Series (V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 1.48124
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block

Product Data

• UPC : 803423098643
• Weight : 21
• Certification : CSA, UL, CE
