Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Shunt Trip
Description
SNT1RP08K

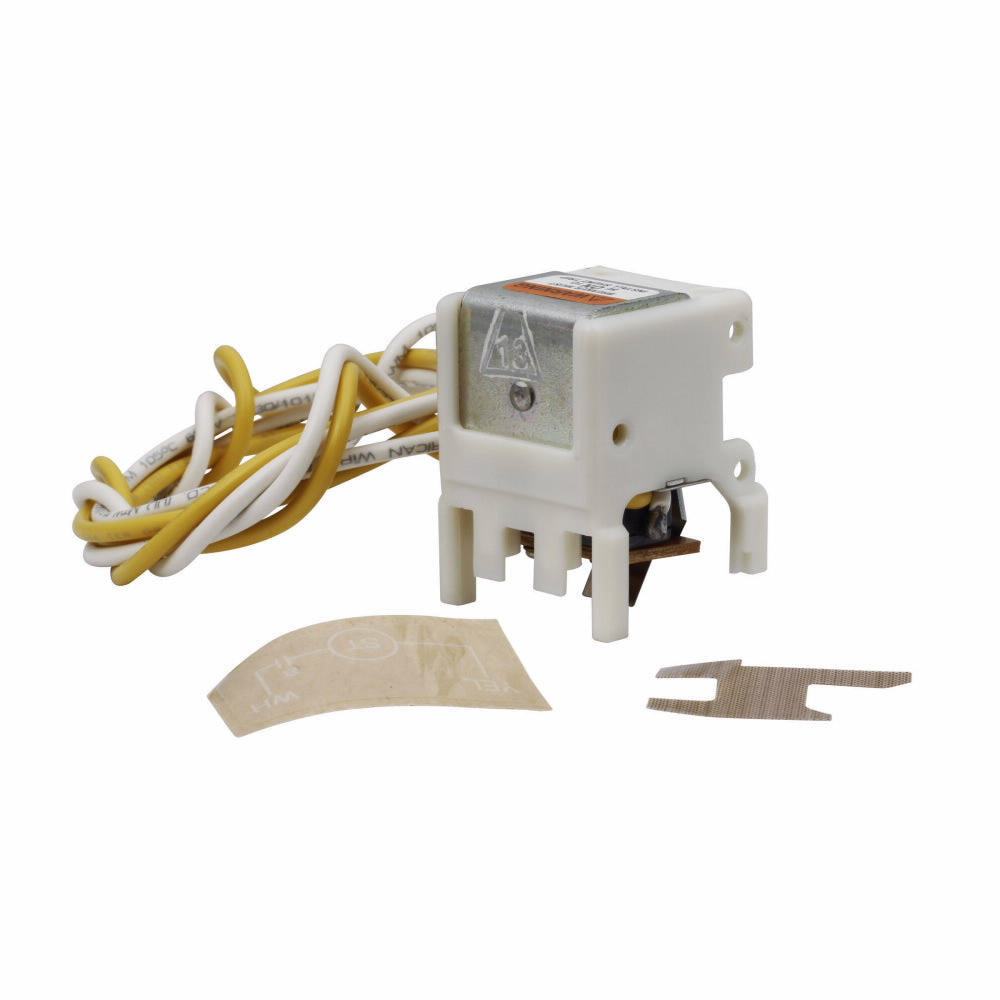

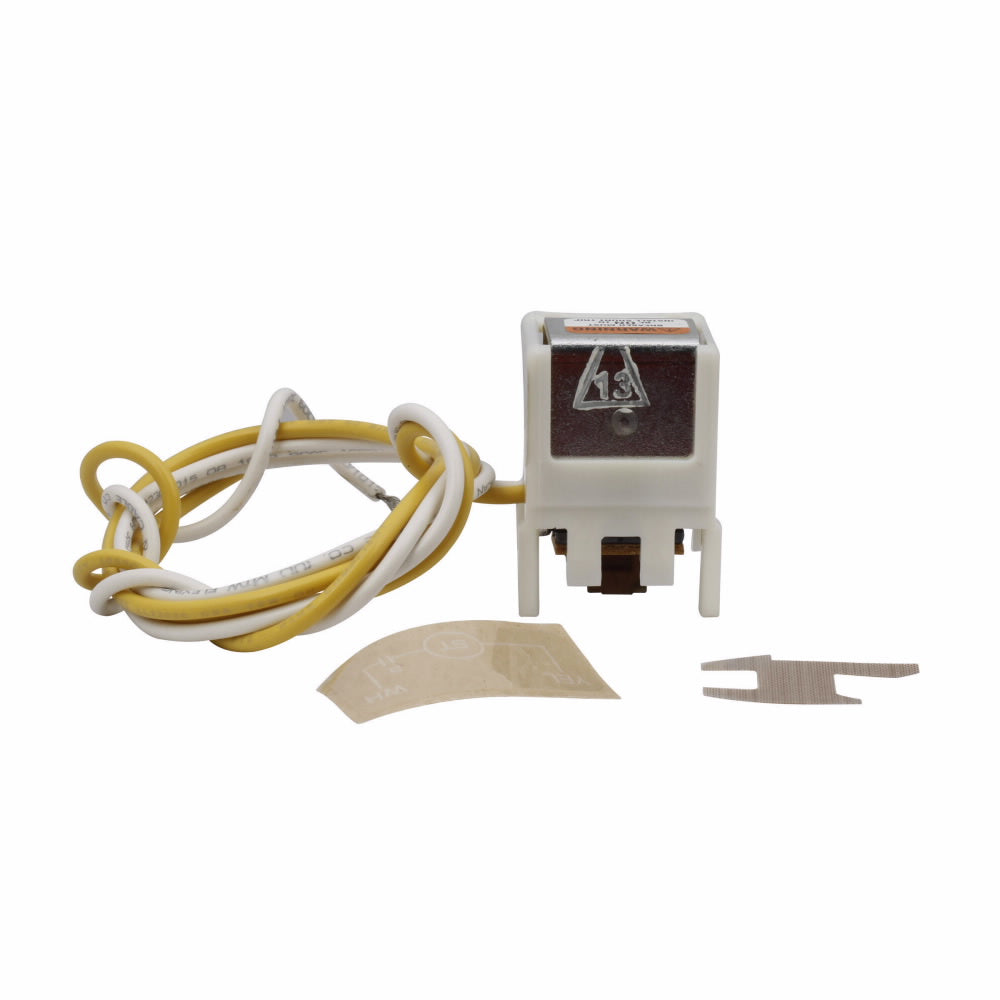

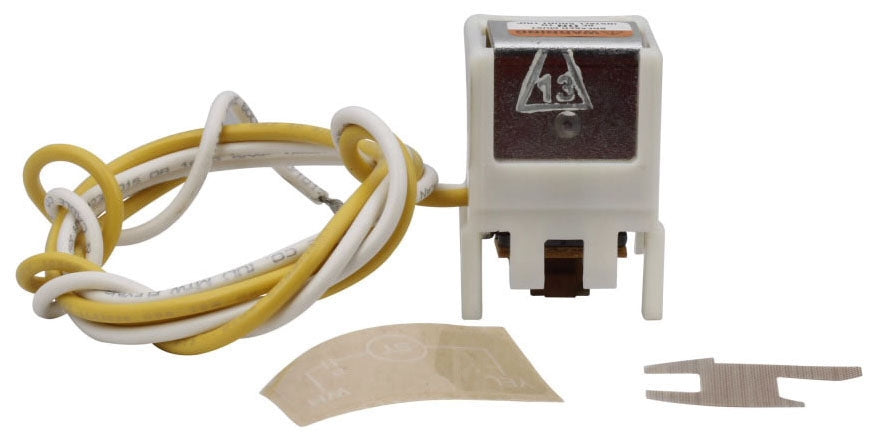

SNT1RP08K is a Cutler Hammer molded case circuit breaker accessory shunt trip designed for F-frame HMCP breakers with a voltage rating of 48-127 Vac or 48-60 Vdc.This factory installation kit features pigtail leads and is compatible with Series C F-frame breakers, providing reliable remote tripping capability. It mounts on the right-hand side and is UL Listed for safety and compliance.
- Type: Shunt trip factory installation kit
- Voltage Rating: 48-127 Vac or 48-60 Vdc
- Current Rating: 225 Amps
- Frame Size: F-frame (Series C)
- Mounting: Right-hand
- Connection: Pigtail leads
- Compatible with: Type F-frame HMCP breakers
- Poles: 3
- Certifications: UL Listed
- Series: Series C
Specifications
- Part Number: SNT1RP08K
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : C
- Voltage : 48/127VAC, 48/60VDC
- Amperage : 225
- Poles : 3
- Connection : Pigtail Leads
- Control Voltage Minimum : 48
- Compatible Frames : FD
- Control Voltate Maximum : 127
Product Data
- UPC : 786679808610
- GTIN : 00786679808610
- Country of Origin : Dominican Republic
- Dimensions : 5.5 in x 3 in x 3.1 in (Length/Depth x Height x Width)
- Weight : 0.34
- Certification : UL
