SNT1RP03K - Cutler Hammer 225A 3 Pole Shunt Trip Circuit Breaker Accessory 12/24VDC Series C FD Frame

SNT1RP03K

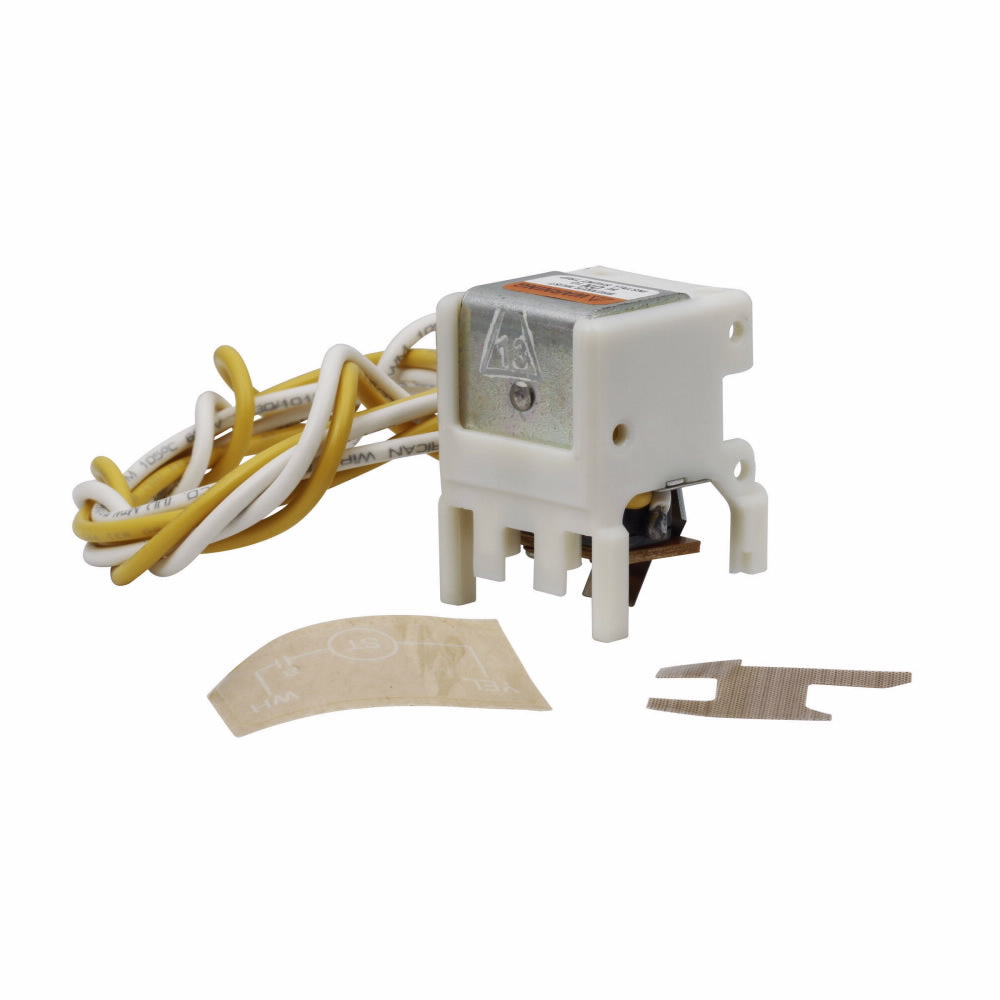

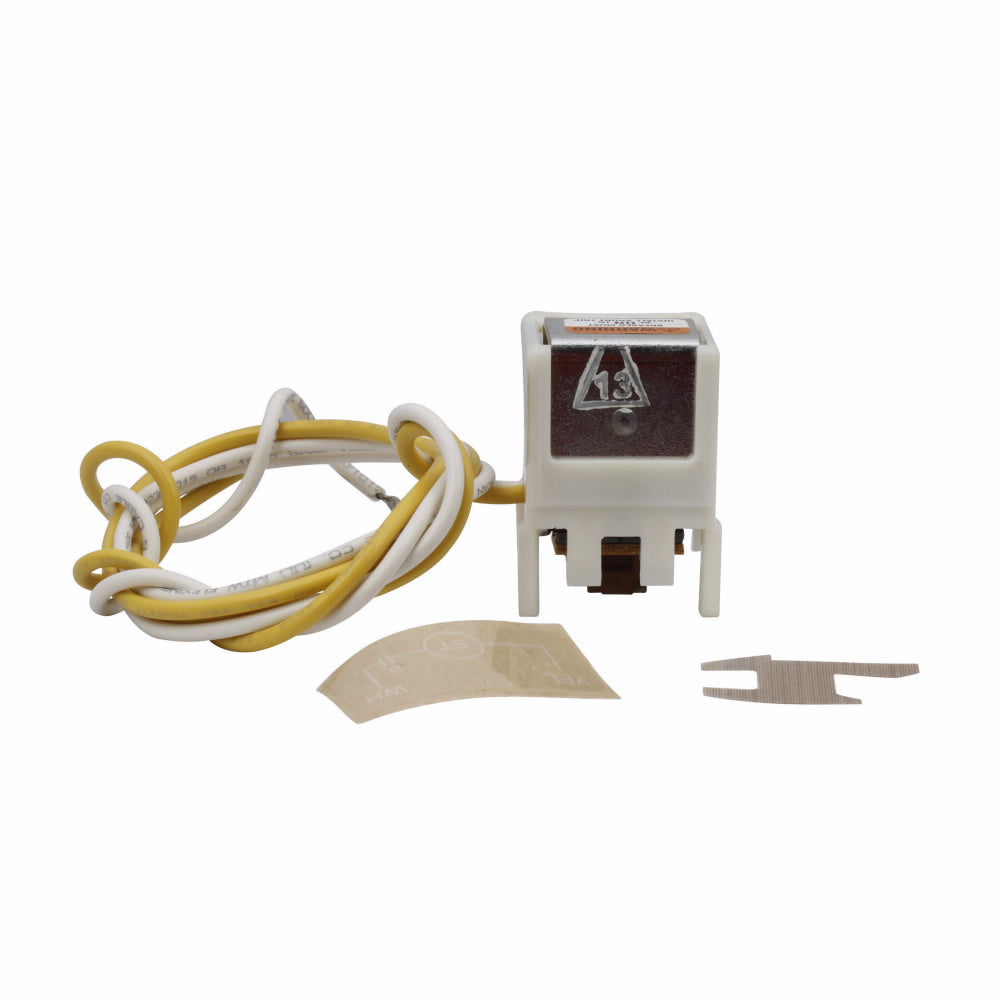

SNT1RP03K is a Cutler Hammer 3 pole shunt trip accessory designed for 225 Amp circuit breakers with 12/24VDC operation.This shunt trip is compatible with Series C FD frame molded case circuit breakers including FDB, FD, HFD, HFDDC, FDC, FG, E2F, E2FM, and F-frame HMCP types. It features pigtail leads for connection and right side mounting. The device is UL approved and intended to provide remote tripping capability for enhanced safety and control.

Key Specifications
• Manufacturer: Cutler Hammer
• Part Number: SNT1RP03K
• Amperage: 225 Amps
• Voltage: 12/24 VDC
• Poles: 3
• Mounting Type: Right side
• Frame Type: FD (Series C)
• Connection Type: Pigtail leads
• UL Approved
• Compatible with Series C FDB, FD, HFD, HFDDC, FDC, FG, E2F, E2FM, and F-frame HMCP breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SNT1RP03K
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Shunt Trip
• Family : Series C
• Type : C
• Voltage : 12/24VDC
• Amperage : 225
• Poles : 3
• Connection : Pigtail Leads
• Control Voltage Minimum : 12
• Compatible Frames : FD
• Control Voltate Maximum : 24

Product Data

• UPC : 078667980860
• GTIN : 00786679808603
• Country of Origin : Dominican Republic
• Dimensions : 5.5 in x 2.9 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : UL
