Description
SLVBH4660G

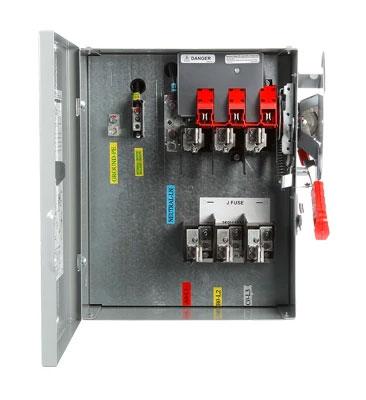

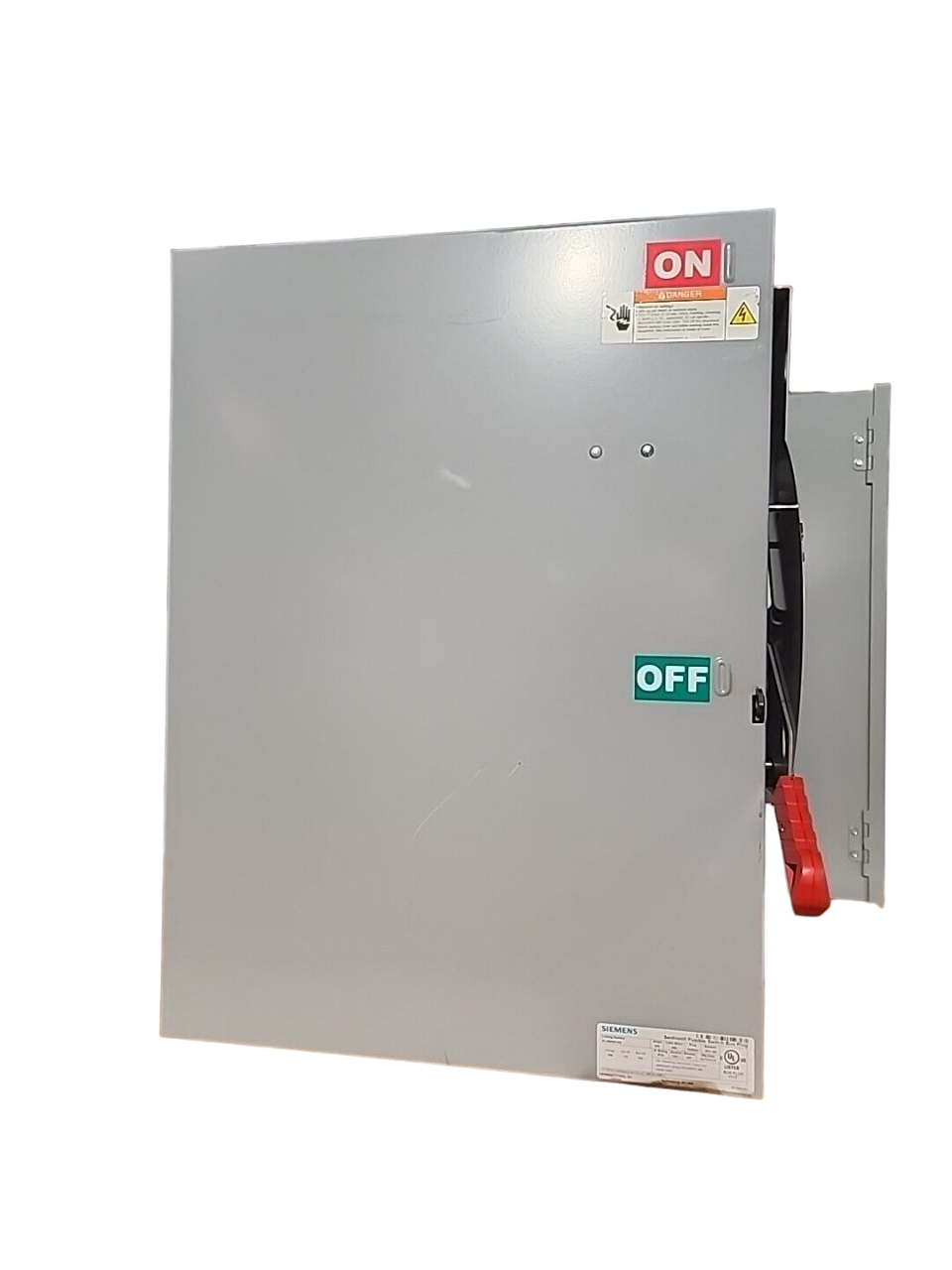

SLVBH4660G is a Siemens 600 Amp, 600 Volt, 4-pole fusible bus plug from the Sentron Low-Amp series designed for busway applications.This bus plug features a 3 phase 4 wire configuration with a horizontal mounting orientation. It supports a short circuit interrupt rating of 200kA at 480V and accepts Class H, K, R, and J fuses. The enclosure is aluminum with an IP40 rating, and the unit includes dual stab busway and cover interlocks for enhanced safety. It is UL and CSA approved and suitable for use with Sentron busway systems.
- Key Specifications
- Amperage: 600 Amps
- Voltage Rating: 600 Volts
- Poles: 4 (3 phase, 4 wire)
- Interrupt Rating: 200kA at 480V
- Fuse Type: Class H, K, R, J, T
- Mounting: Bolt-on, Horizontal Orientation
- Enclosure Material: Aluminum
- IP Rating: IP40
- Certifications: UL, CSA
- Series: Sentron Low-Amp
- Weight: Approximately 100 lbs
Specifications
- Part Number: SLVBH4660G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 600
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 783643549692
- GTIN : 00783643549692
- Country of Origin : Mexico
- Dimensions : 42.913 x 20.866 x 23.622 inch
- Weight : 230.493
