Description
SLVBH4630G

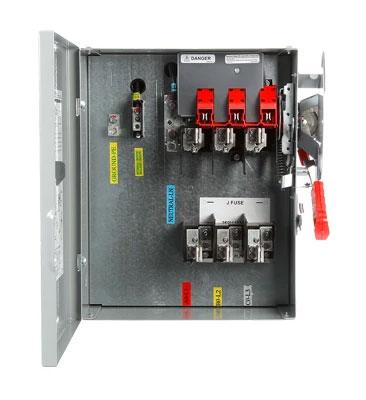

SLVBH4630G is a Siemens 100 Amp, 600 Volt, 3-pole 4-wire fusible bus plug designed for Sentron Low-Amp busway systems.This bus plug features a fusible design compatible with Class R, H, and K fuses, rated for 100 Amps continuous current and 600 VAC operation. It supports 3-phase 4-wire configurations with internal grounding and is suitable for use with aluminum and copper busway systems. The unit has a 200kA interrupting rating at 480V and is part of the Sentron II heavy-duty series, providing reliable protection and connection in busway applications.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 VAC
- Poles: 3
- Wires: 4 (including ground)
- Fusible: Yes, accepts Class R, H, K fuses
- Interrupt Rating: 200kA at 480V
- Series/Frame: Sentron Low-Amp / Sentron II
- Mounting Type: Busway plug-in unit
- Ground: Internal grounding provided
- Certifications: UL Listed (implied by Siemens standard)
Specifications
- Part Number: SLVBH4630G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 783643549517
- GTIN : 00783643549517
- Country of Origin : Mexico
- Dimensions : 22.835 x 12.992 x 14.961 inch
- Weight : 41.888
- Certification : UL
