Description
SLVBH3650G

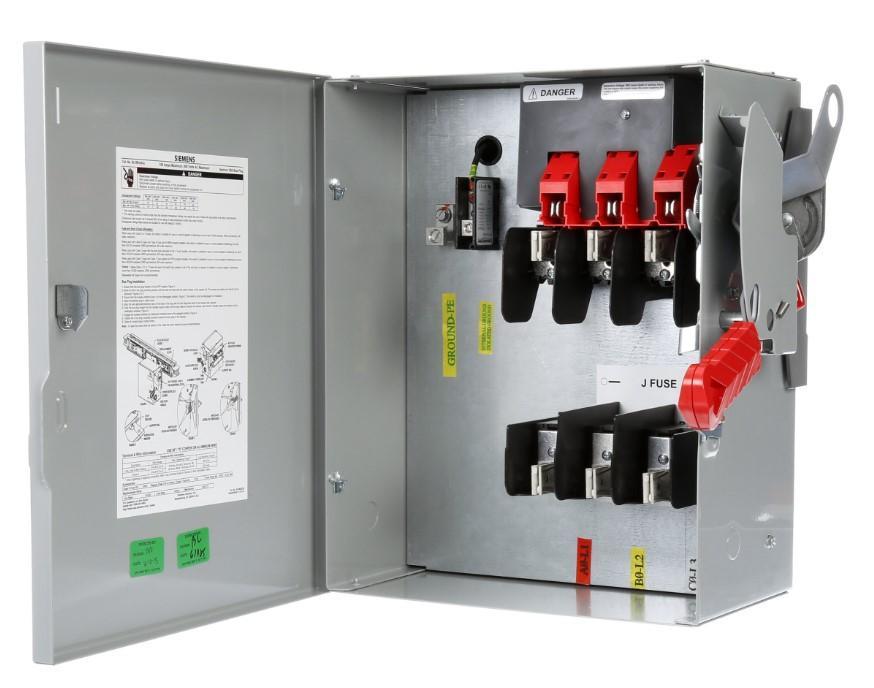

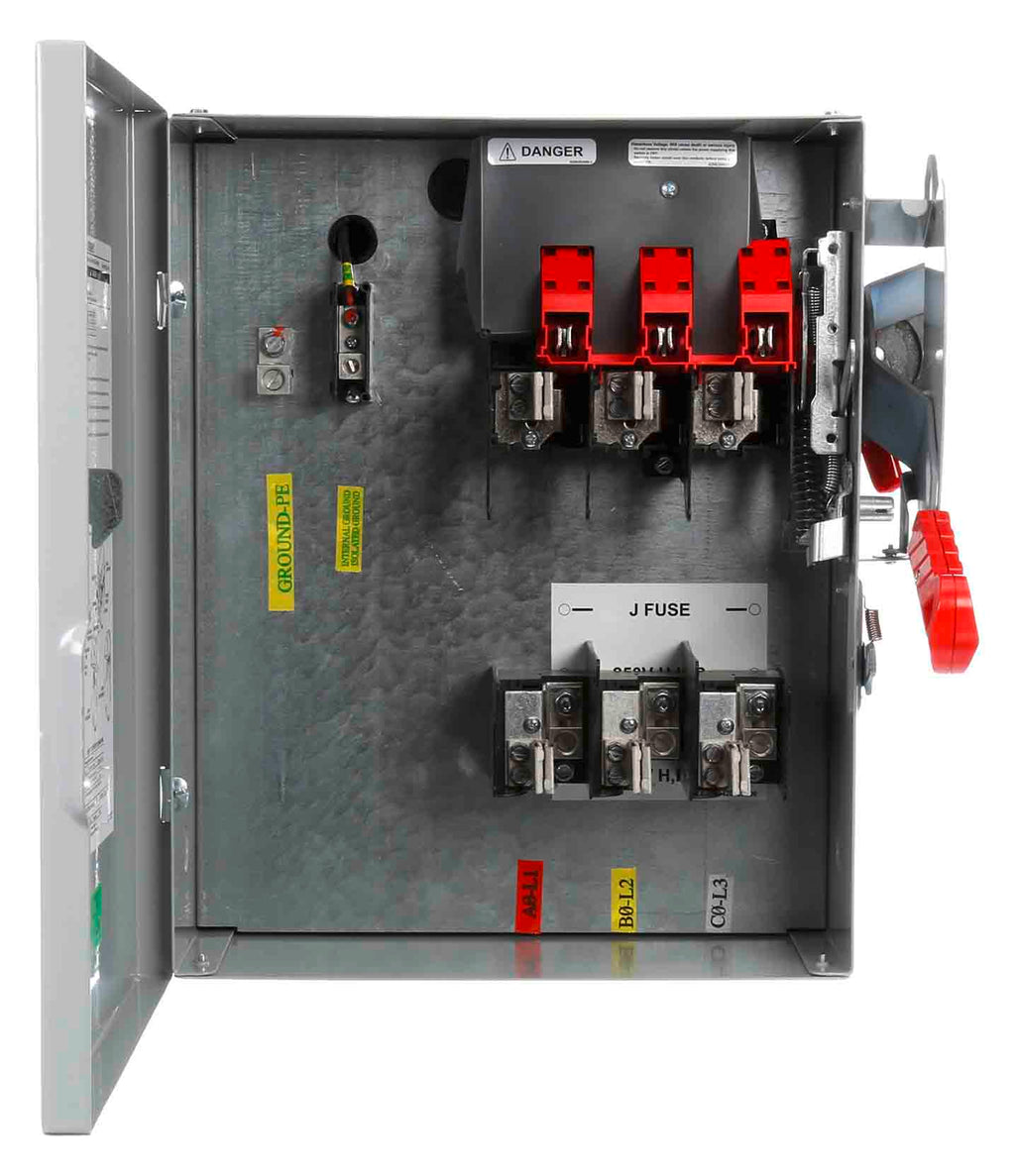

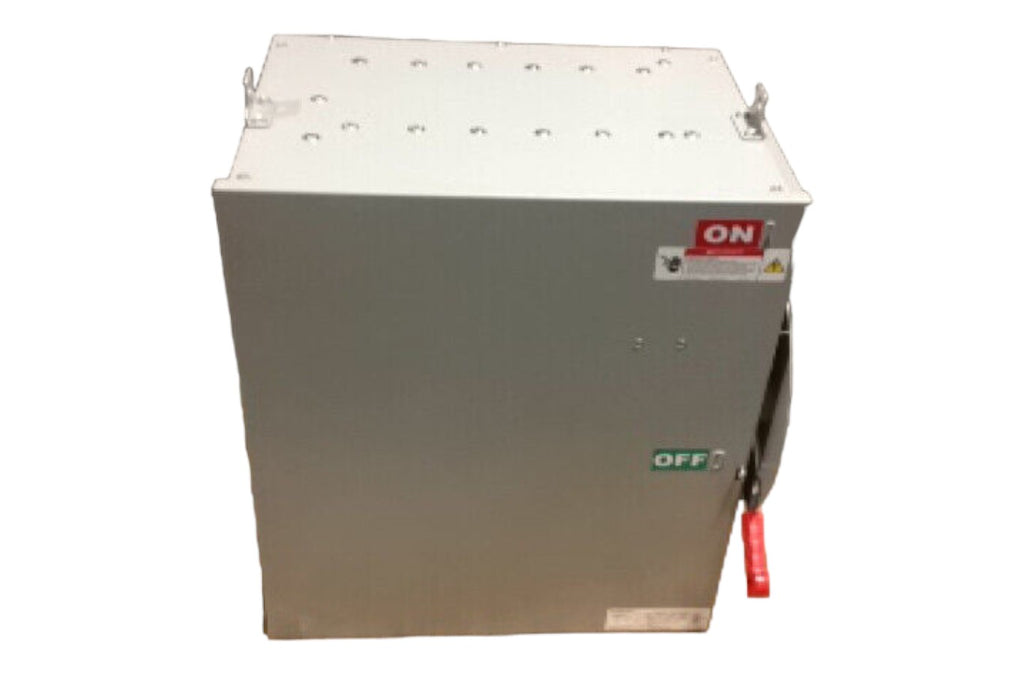

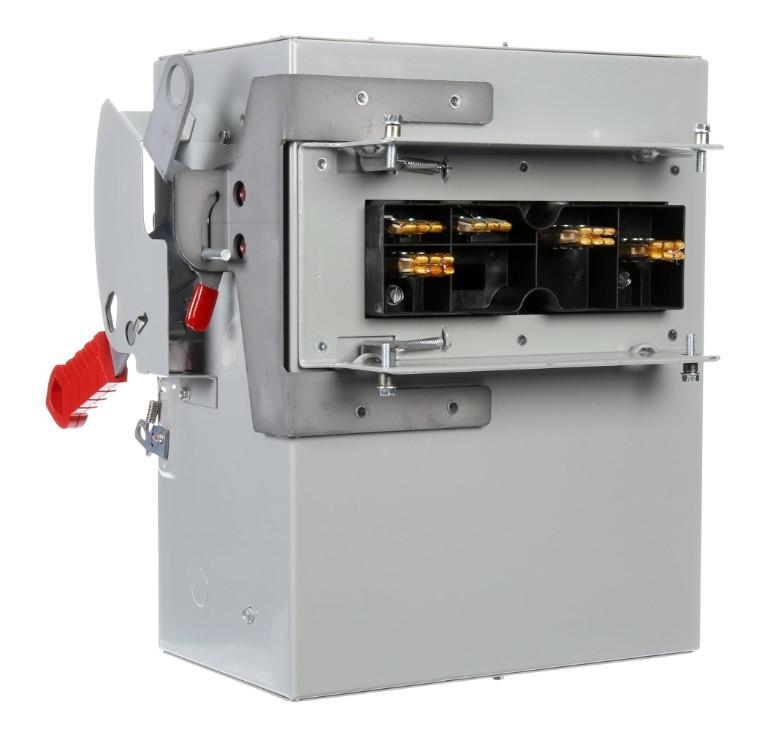

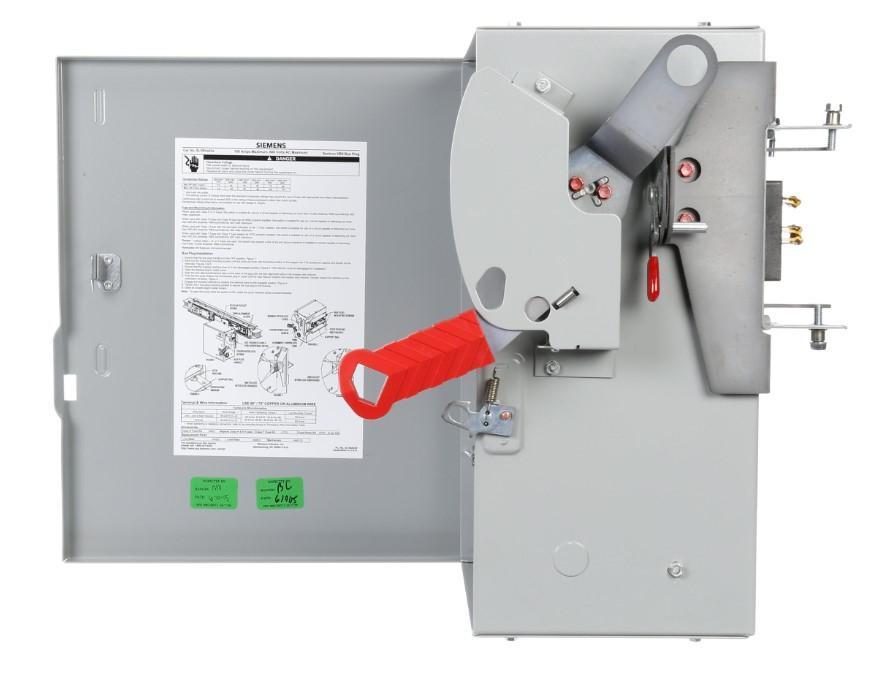

SLVBH3650G is a Siemens 3-pole fusible bus plug rated for 400 Amps and 600 Volts AC, designed for reliable power distribution in busway systems.This bus plug features a horizontal mounting orientation and is part of the Sentron II heavy-duty fusible switch family. It supports 3-phase, 3-wire configurations with an interrupt rating of 200kA at 480V, ensuring high fault current protection. The unit includes internal grounding and is compatible with R, H, and K type fuses. It is rated IP40 for enclosure protection and fits the SX frame series.
- Key Specifications
- Amperage: 400 Amps
- Voltage: 600 VAC
- Poles: 3
- Phase/Wire: 3 phase, 3 wire
- Interrupt Rating: 200kA at 480V
- Mounting Type: Horizontal
- Fuse Types: R, H, K
- Series/Frame: Sentron II, SX Frame
- Internal Grounding: Yes
- Enclosure Rating: IP40
- Part Number: SLVBH3650G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Wire : 3
- UPC : 783643548879
- GTIN : 00783643548879
- Country of Origin : Mexico
- Dimensions : 42.913 x 20.866 x 23.622 inch
- Weight : 145.307
