Description
SLVBH3640G

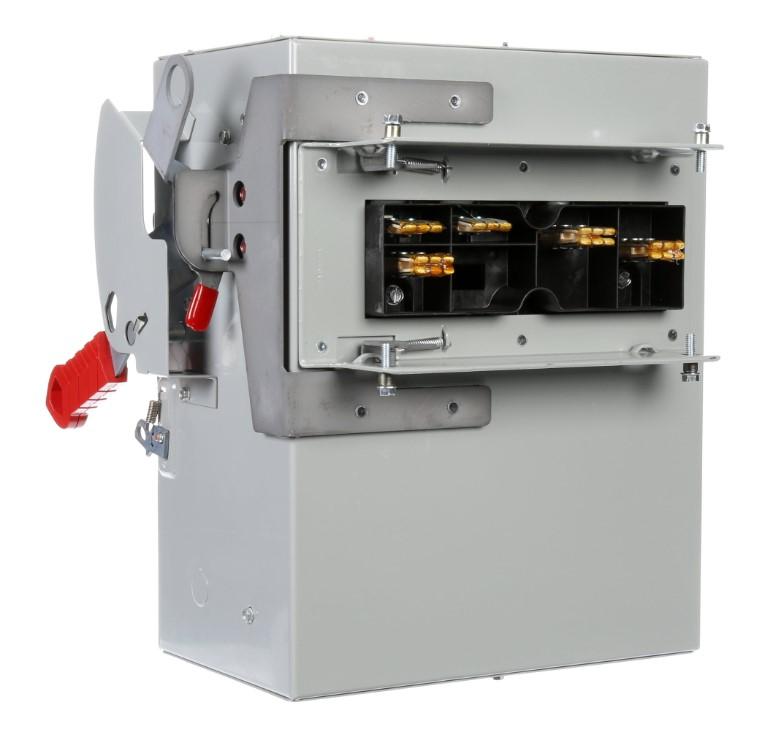

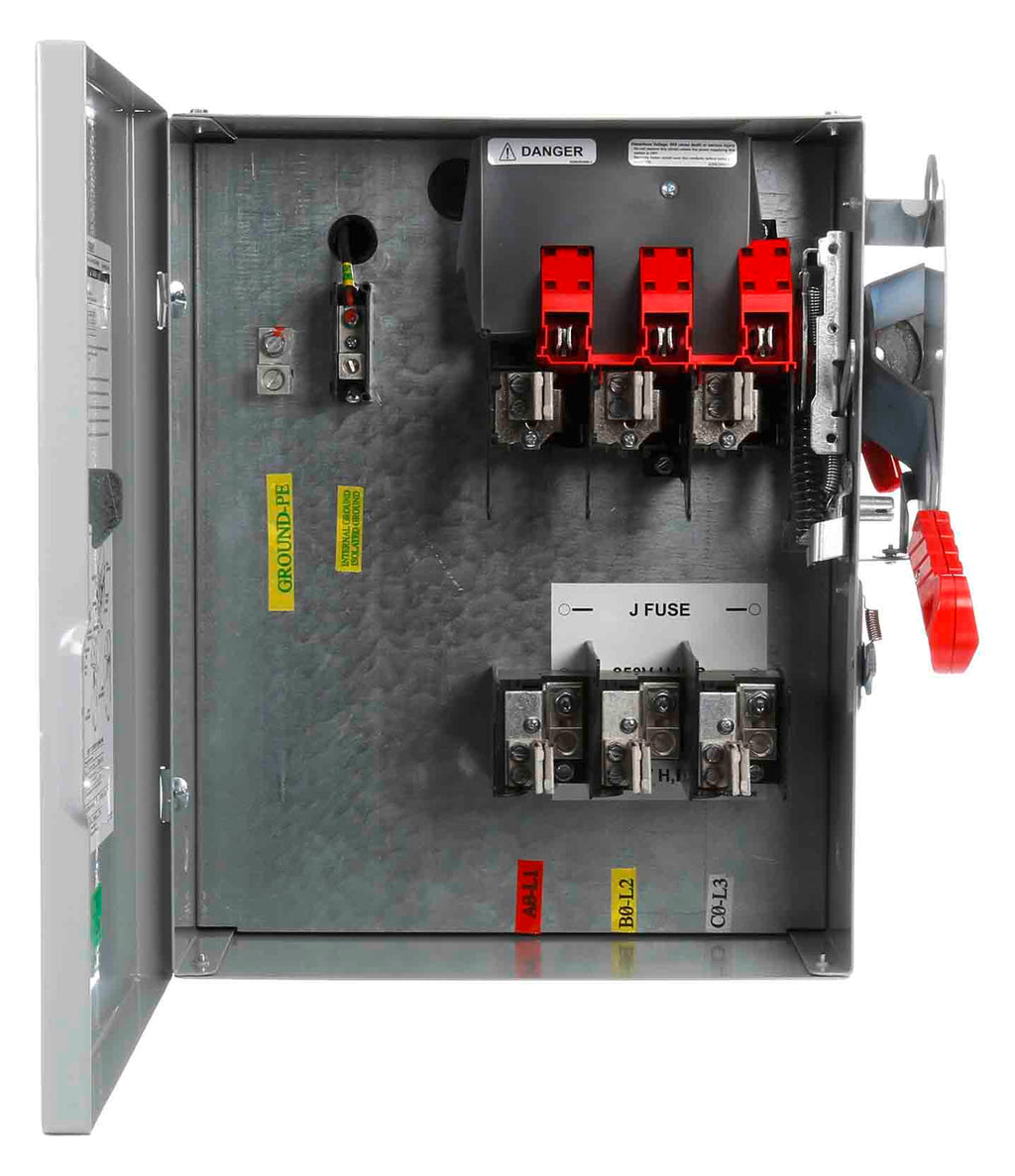

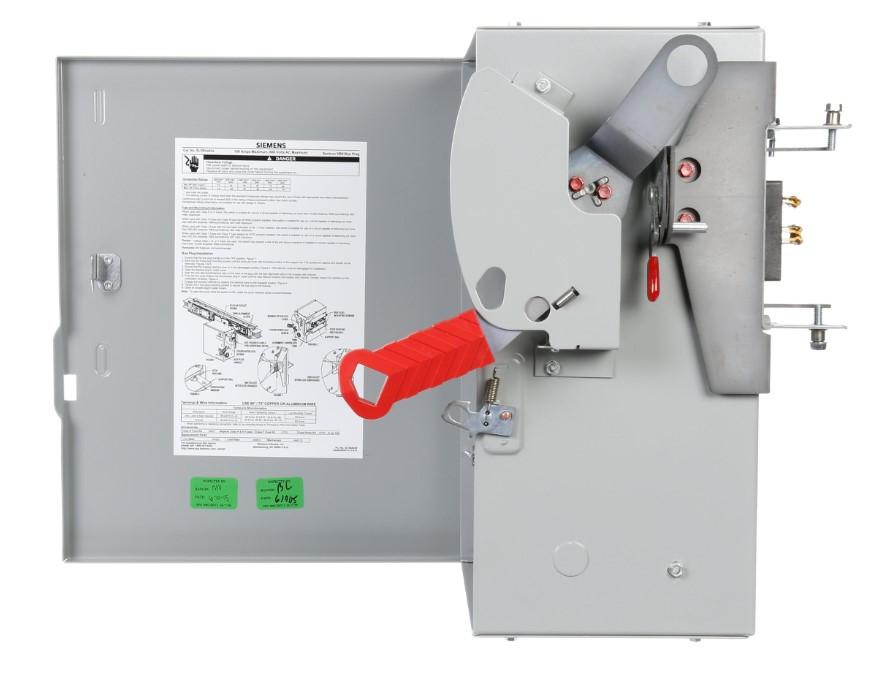

SLVBH3640G is a Siemens 3-pole fusible bus plug rated for 200 Amps and 600 Volts AC, designed for Sentron Low-Amp series busway systems.
This bus plug features a bolt-on mounting type, 3-wire configuration, and an interrupting rating of 200kA at 480V. It accepts Class R, H, and K fuses and is suitable for use with both aluminum and copper Sentron bus ducts. The unit includes an internal ground and is rated IP40 for enclosure protection.
- Key Specifications
- Manufacturer: Siemens
- Part Number: SLVBH3640G
- Amperage: 200 Amps
- Voltage: 600 VAC
- Poles: 3
- Phase: 3
- Wire: 3-wire
- Mounting Type: Bolt-On
- Interrupting Rating: 200kA @ 480V
- Fuse Class: R, H, K
- Series: Sentron Low-Amp
- Enclosure Rating: IP40
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SLVBH3640G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 783643548794
- GTIN : 00783643548794
- Country of Origin : Mexico
- Dimensions : 24.803 x 19.685 x 16.929 inch
- Weight : 54.99
