Description
SLVBH3630G

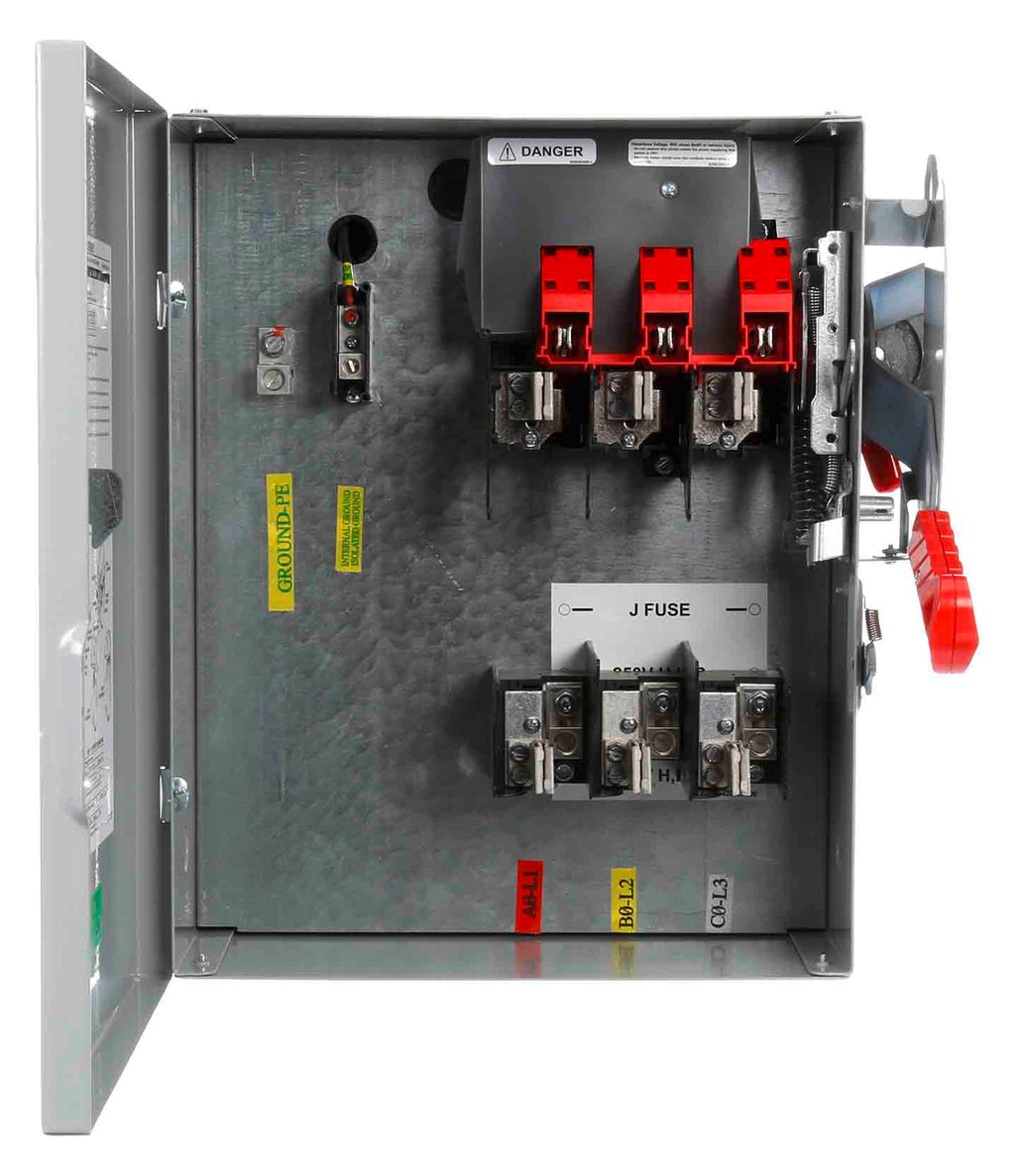

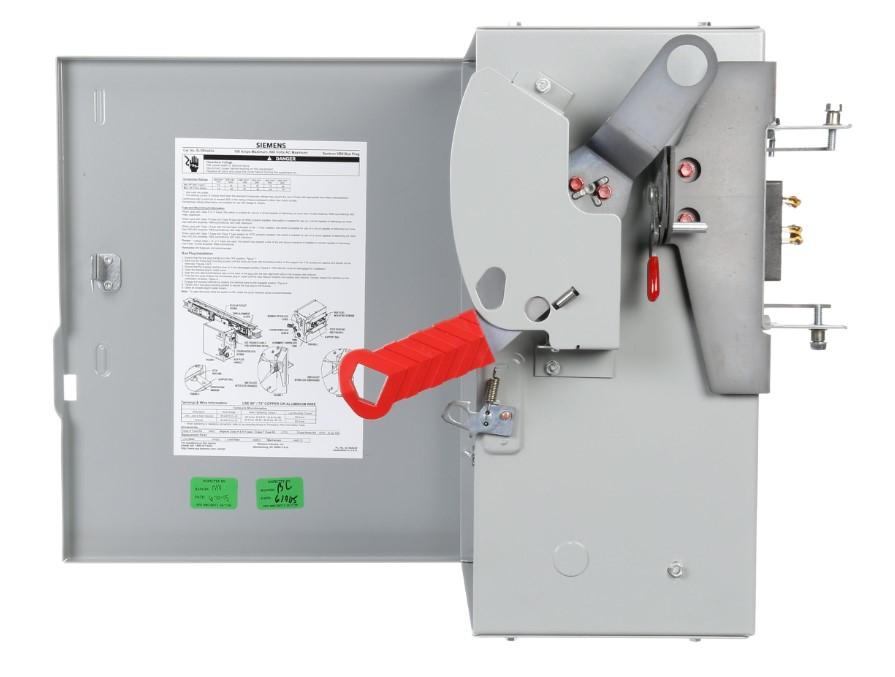

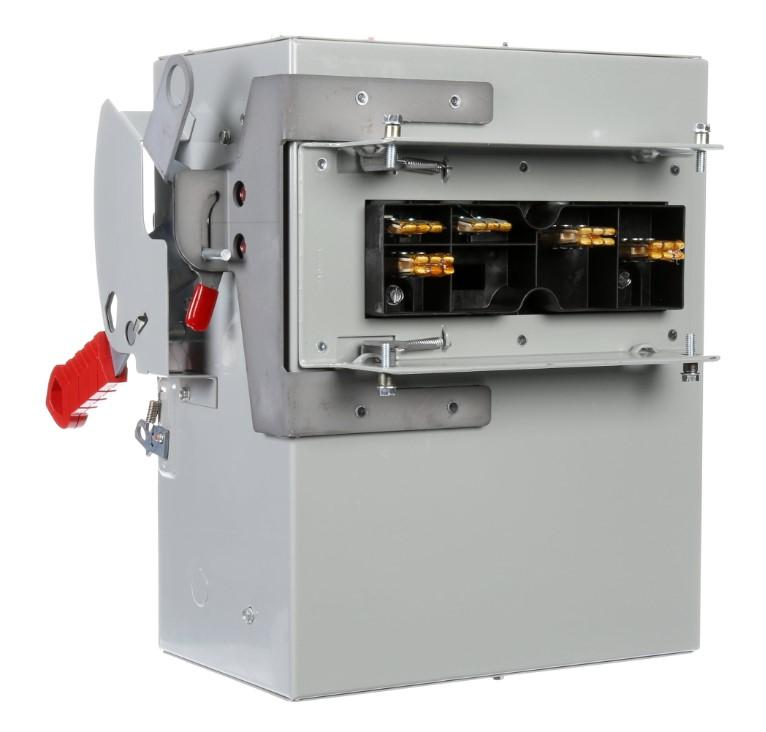

SLVBH3630G Siemens 100 Amp 600V fusible bus plug for Sentron Low-Amp busway systems, designed for reliable power distribution in commercial and industrial applications.
This heavy-duty, 3-phase, 3-wire bus plug features a horizontal mounting orientation and is rated for up to 100 Amps at 600 Volts. It is part of the Siemens Sentron Low-Amp (SL) series and is compatible with both aluminum and copper busway. The unit includes an internal ground, accepts Class R, H, and K fuses, and is rated IP40 for basic protection against solid objects. With a 200kA interrupting rating at 480V, it provides robust short-circuit protection.
-
Key Specifications
- Part Number: SLVBH3630G
- Manufacturer: Siemens
- Category: Bus Plug
- Amperage: 100 Amp
- Voltage: 600V
- Poles: 3
- Wire: 3
- Mounting Type: Horizontal
- Interrupt Rating: 200kA@480V
- Series/Frame: Sentron Low-Amp (SL)
- Fuse Class: R, H, K
- Certifications: IP40
- Dimensions: 12.992" x 22.835" x 14.961"
- Weight: 41.8 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SLVBH3630G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 783643548718
- GTIN : 00783643548718
- Country of Origin : Mexico
- Dimensions : 22.835 x 12.992 x 14.961 inch
- Weight : 41.888
