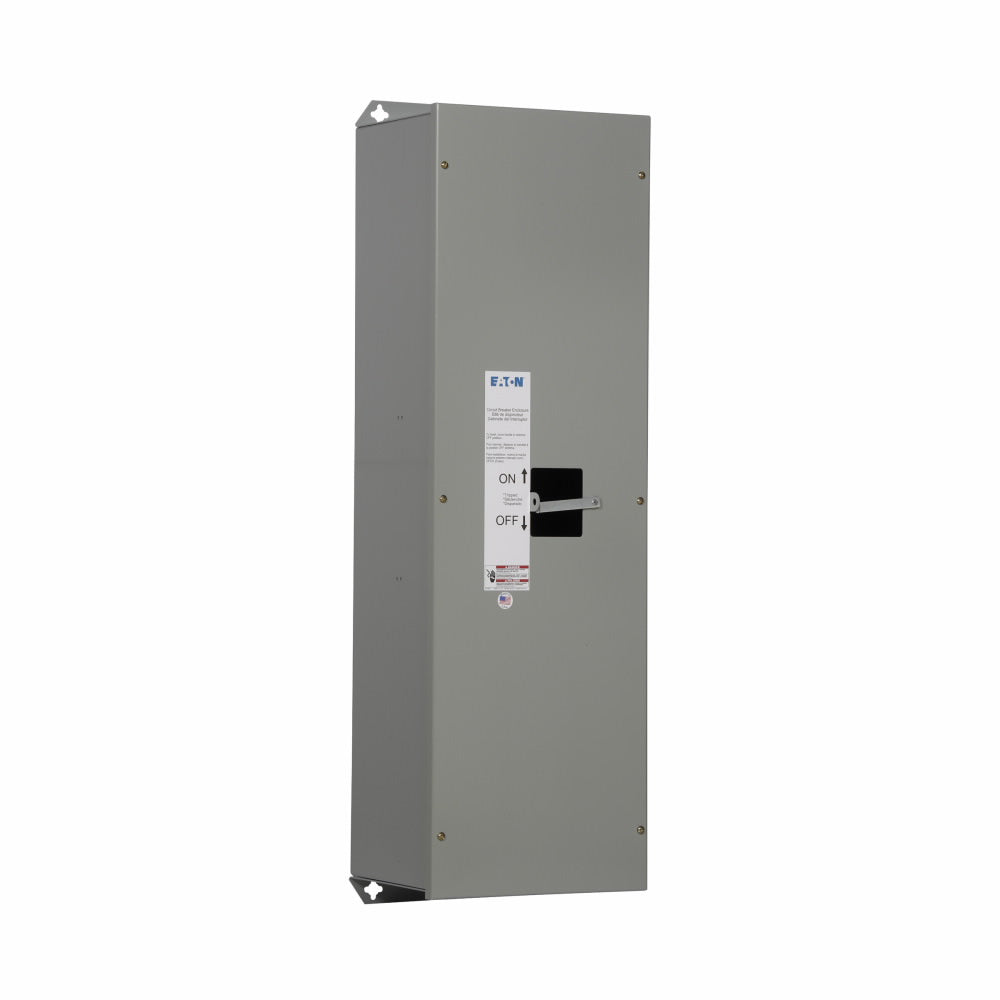

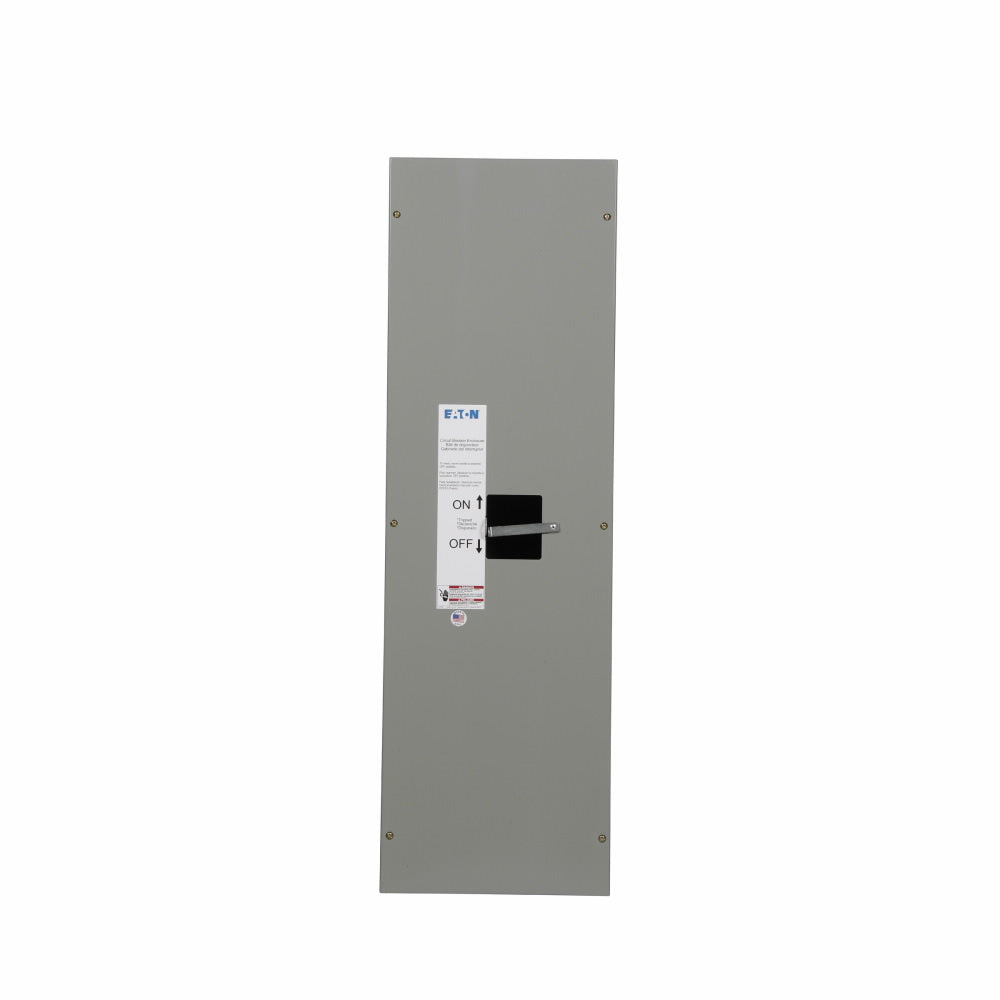

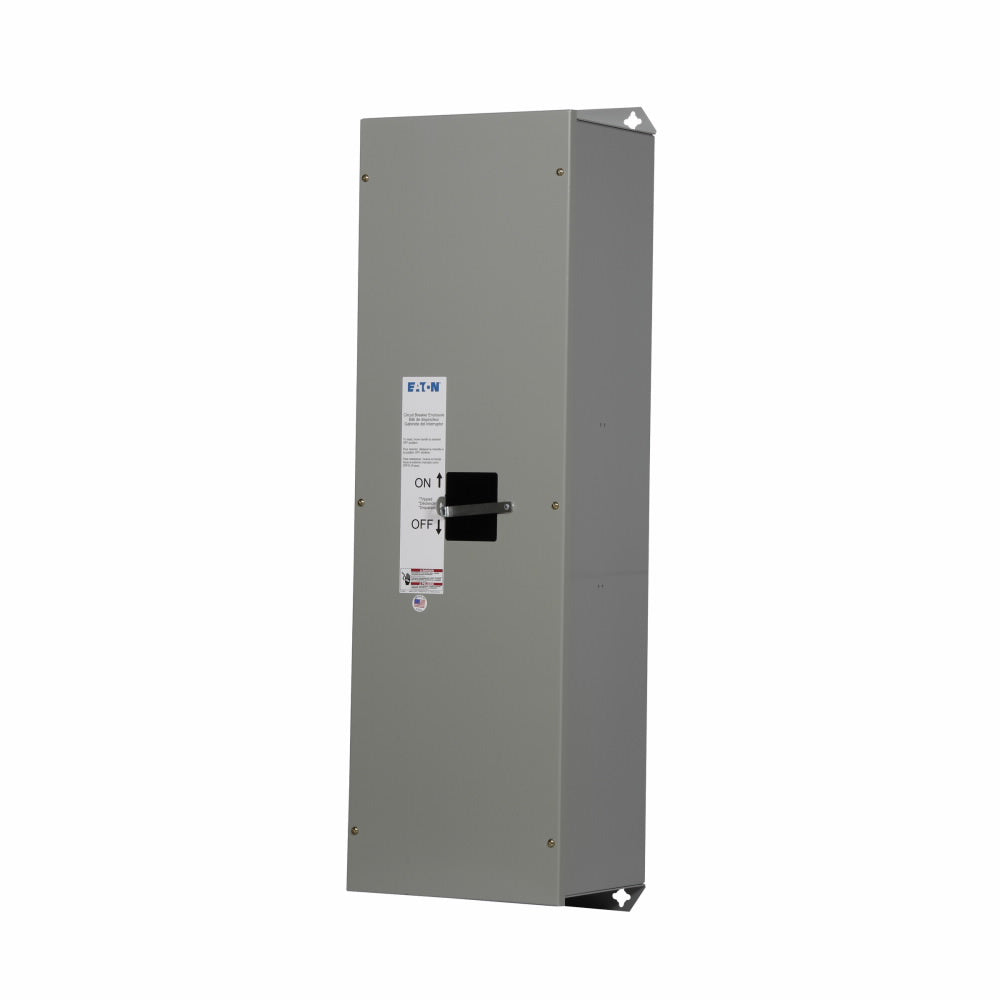

SLDN600 - Cutler Hammer Series C Circuit Breaker Enclosure 600A 600V 3 Pole NEMA 1 Surface Mount

SLDN600

SLDN600 is a Cutler Hammer Series C circuit breaker enclosure designed for 600A, 600V applications with 3 poles and NEMA 1 indoor rating.This enclosure supports Series C breaker frames including LDB, LD, HLD, LDC, CLD, CHLD, CLDC, LGE, LGS, LGH, LGC, LGU, and LGX. It features surface mounting and is suitable for indoor use, providing a robust and reliable housing for molded case circuit breakers. The enclosure dimensions are 15.5" height, 18.0" width, and 47.5" depth, weighing 75 lbs. It is UL listed and CSA certified for safety and compliance.

Key Specifications
• Amperage Rating: 300-600A
• Voltage Rating: 600VAC, 500VDC
• Poles: 3
• Mounting Type: Surface Mount
• Series/Frame: Series C (LDB, LD, HLD, LDC, CLD, CHLD, CLDC, LGE, LGS, LGH, LGC, LGU, LGX)
• Enclosure Type: SLDN
• NEMA Rating: 1 (Indoor)
• Dimensions (HxWxD): 15.5" x 18.0" x 47.5"
• Weight: 75 lbs
• Certifications: UL Listed, CSA Certified
• Interrupt Rating: per Series C breaker specs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.




Specifications

• Part Number: SLDN600
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Enclosure
• Family : Series C
• Type : SLDN
• Voltage : 600
• Amperage : 600
• Nema Rating : 1



Product Data

• UPC : 786679257210
• GTIN : 00786679257210
• Country of Origin : United States
• Dimensions : 47.5 in x 15.5 in x 18 in (Length/Depth x Height x Width)
• Weight : 75
• Certification : CSA Certified,UL Listed
