Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
SLC040

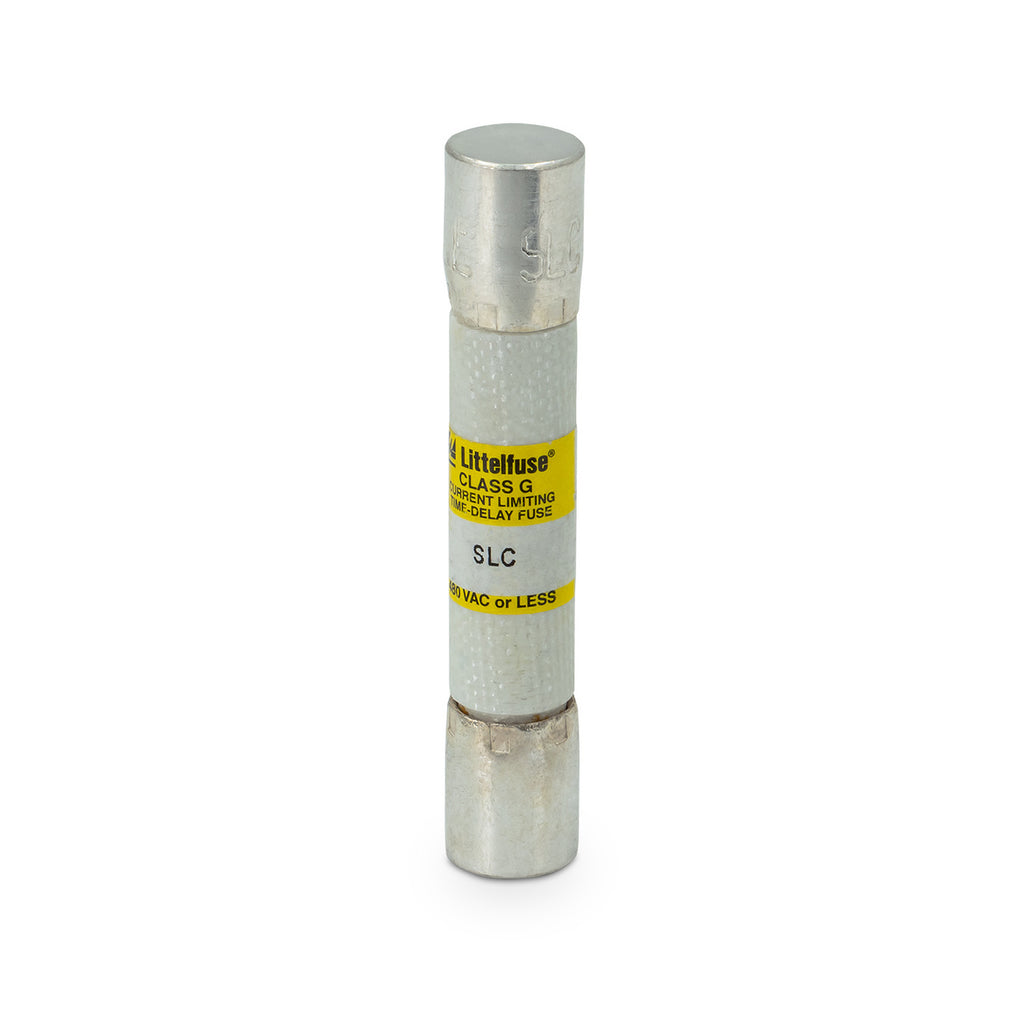

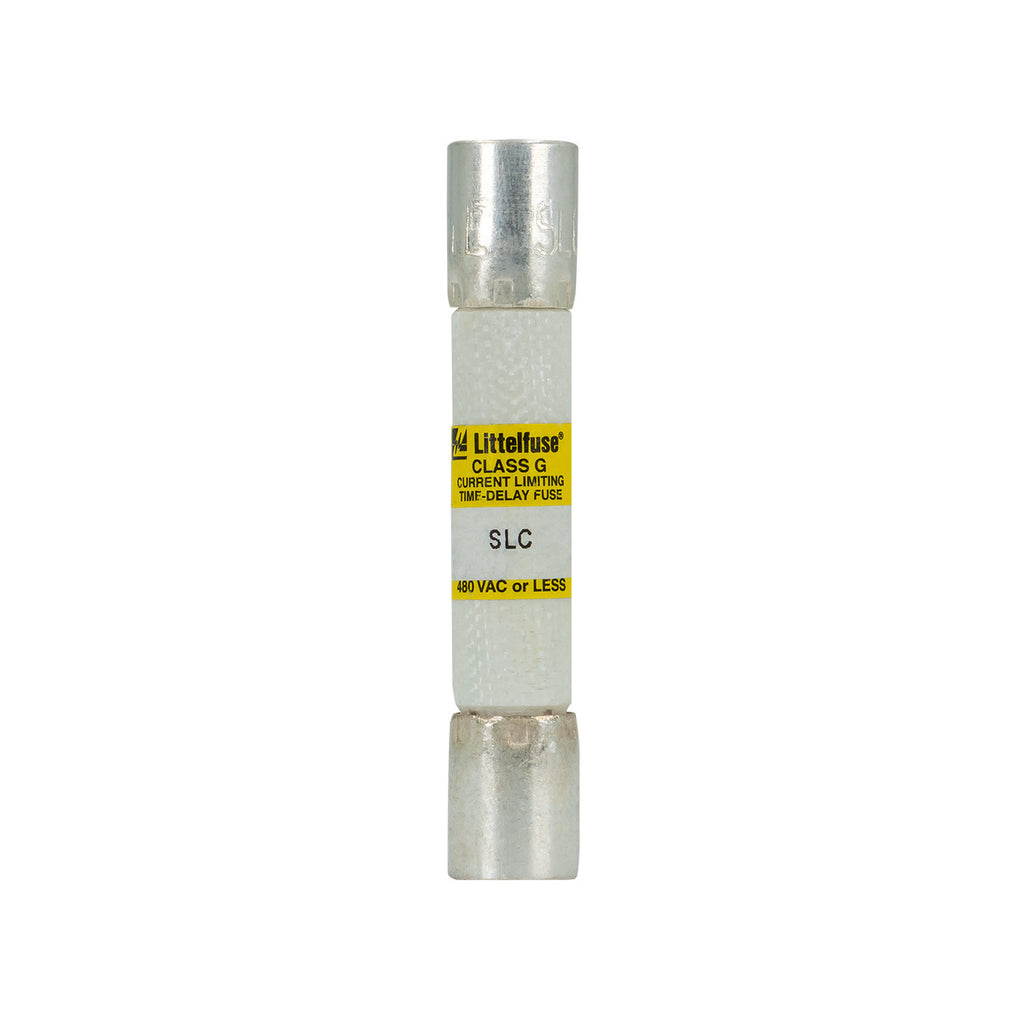

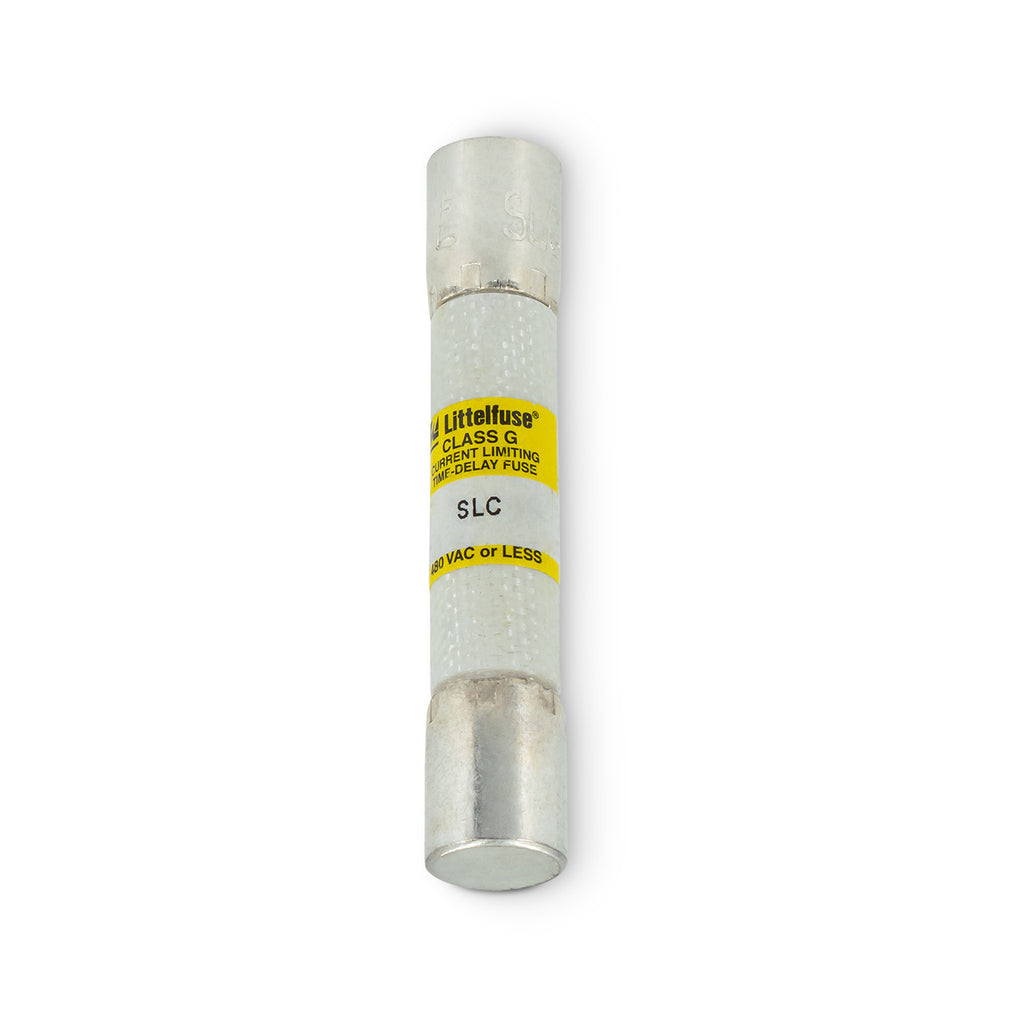

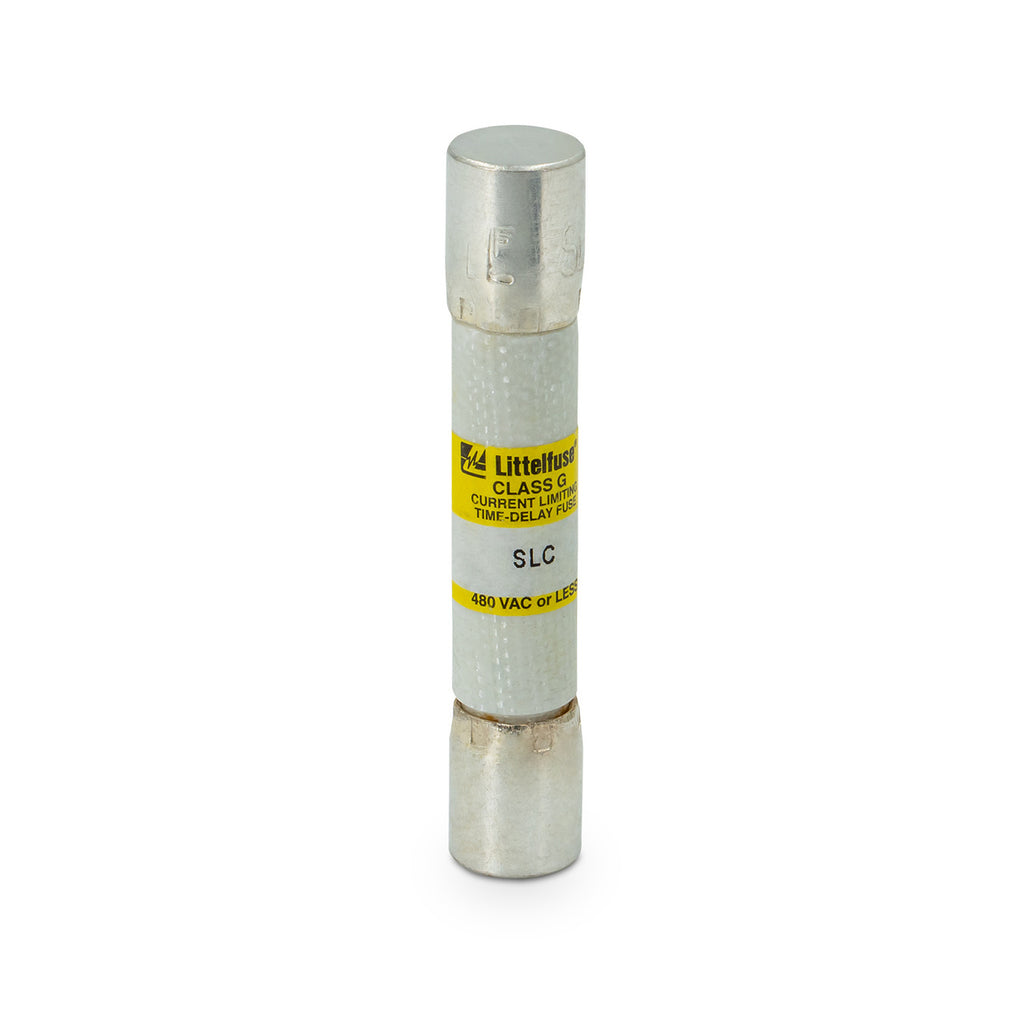

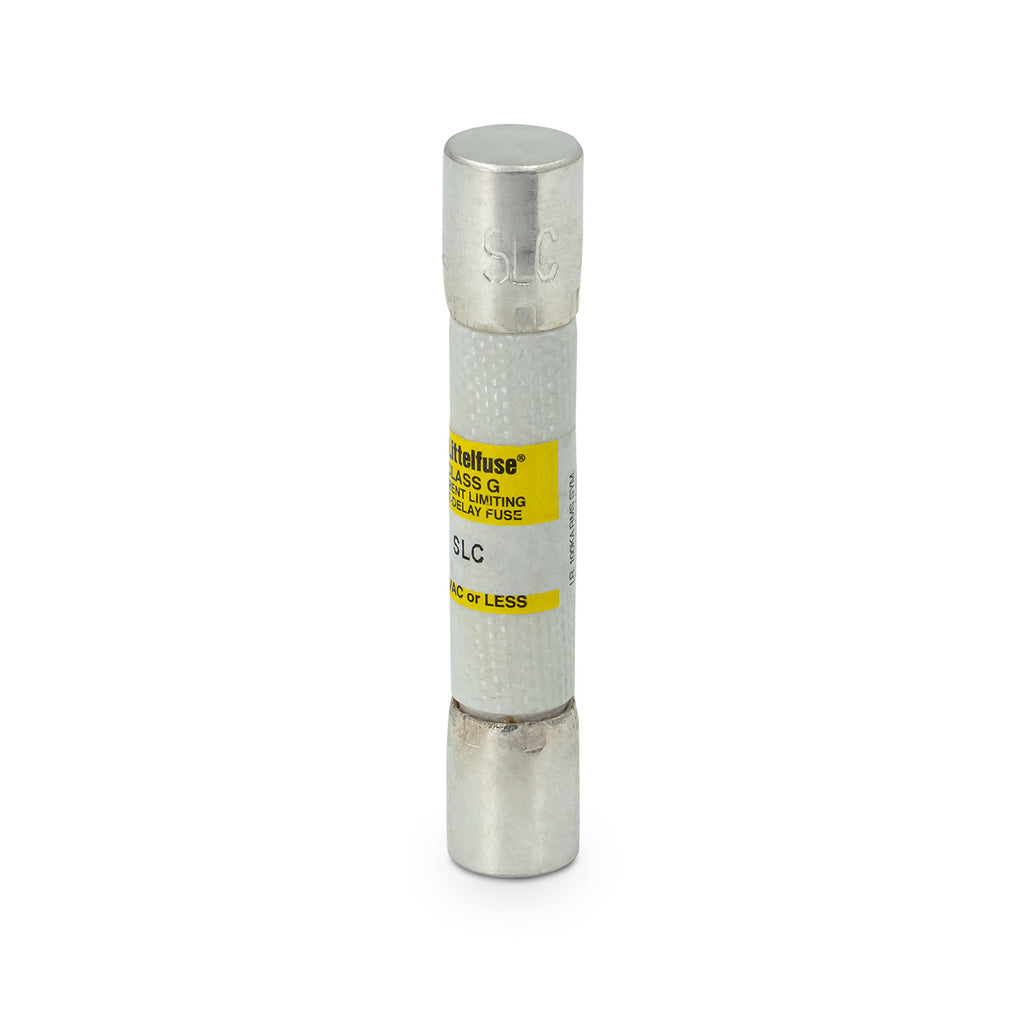

SLC040 is a Littelfuse Class G medium time-delay current limiting fuse designed for reliable branch circuit protection in industrial and commercial applications. This fuse provides effective overcurrent protection with a 40A rating and 480VAC voltage rating, suitable for use in a variety of electrical systems. The SLC040 fuse features a cartridge body and is engineered for current limiting performance, helping to minimize damage during short-circuit events. Its medium time-delay characteristic allows for temporary current surges without nuisance tripping, making it ideal for motor and transformer protection.
- 40A Amperage
- 480VAC Voltage Rating
- Class G Fuse
- Medium Time-Delay
- Current Limiting Design
- 100kA Interrupt Rating
- Cartridge Body
- UL 248-5 Listed
- CSA Certified
- CE Marked
- 13/32" Diameter
- 2-1/4" Length
Specifications
- Part Number: SLC040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : SLC
- Type : SLC
- Voltage : 480
- Amperage : 40
- AIC rating : 100kA@480V
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 07945842075
- GTIN : 00079458420753
- Country of Origin : Mexico
- Dimensions : x 2-1/4 in x
- Weight : 17.2
- Certification : CE, UL 248-5 Class G, UL Listed, CSA Certified, QPL-W-F-1814, RoHS
