Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
SLC-060

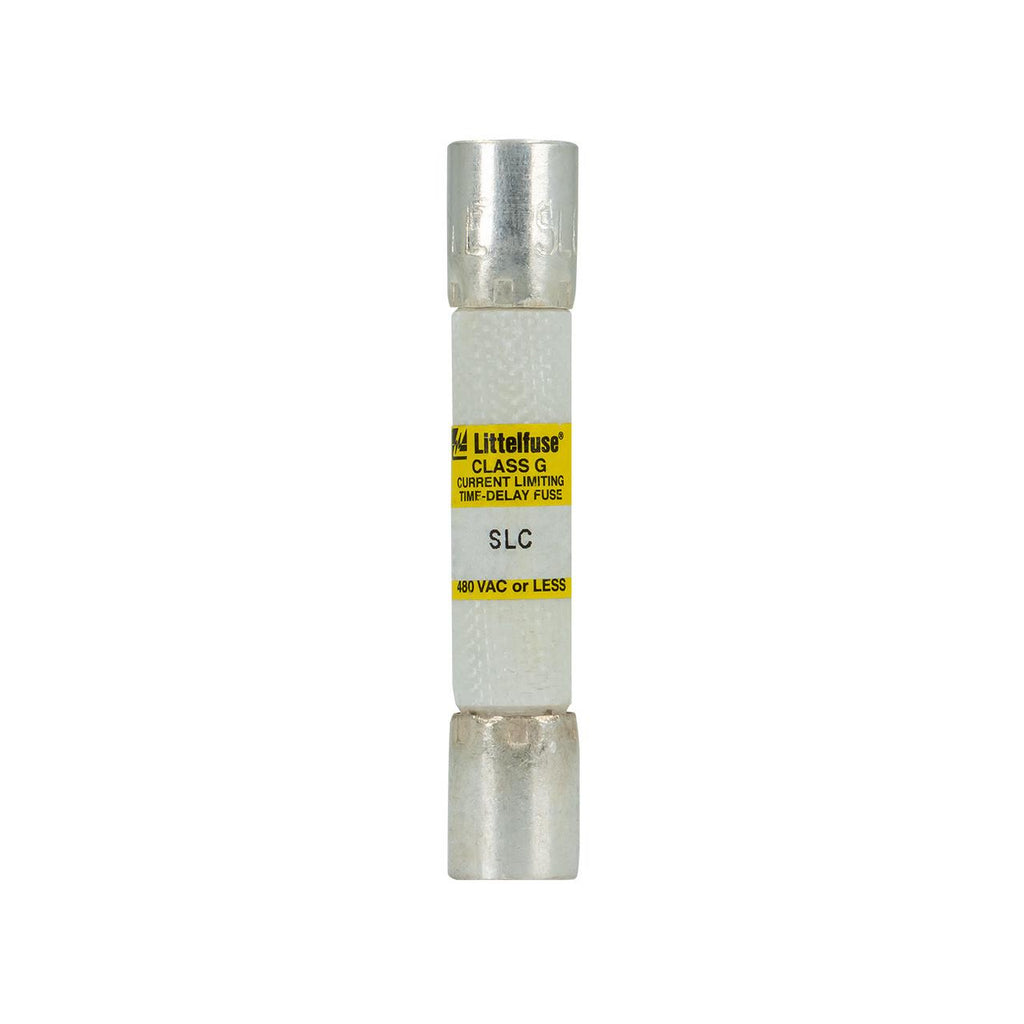

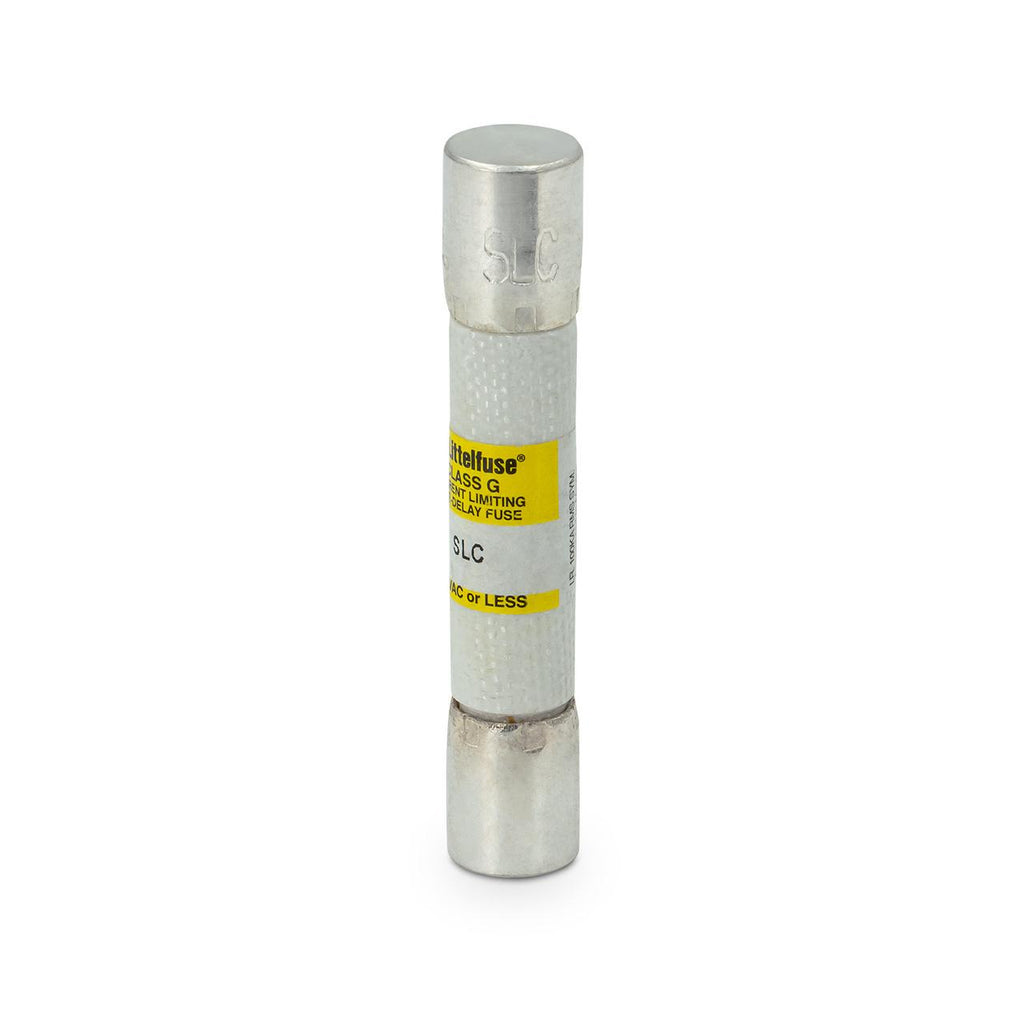

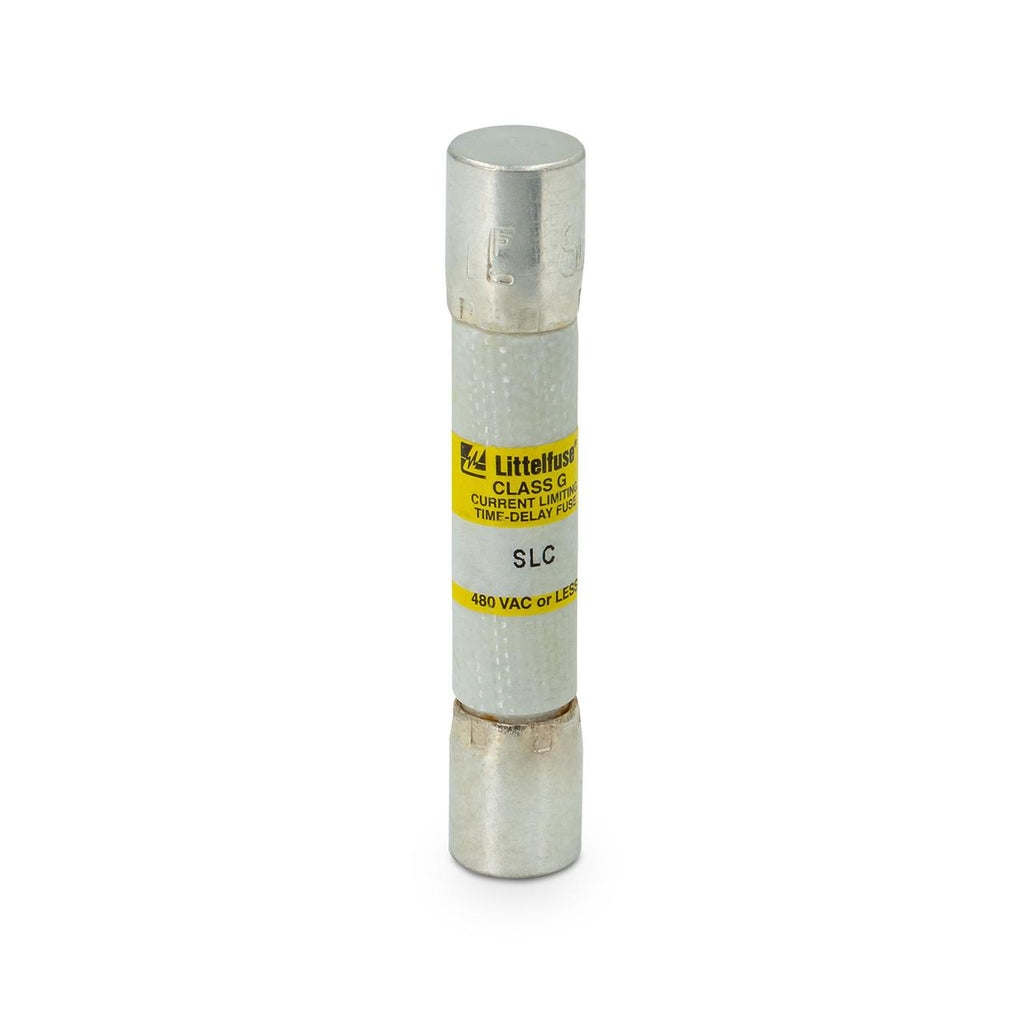

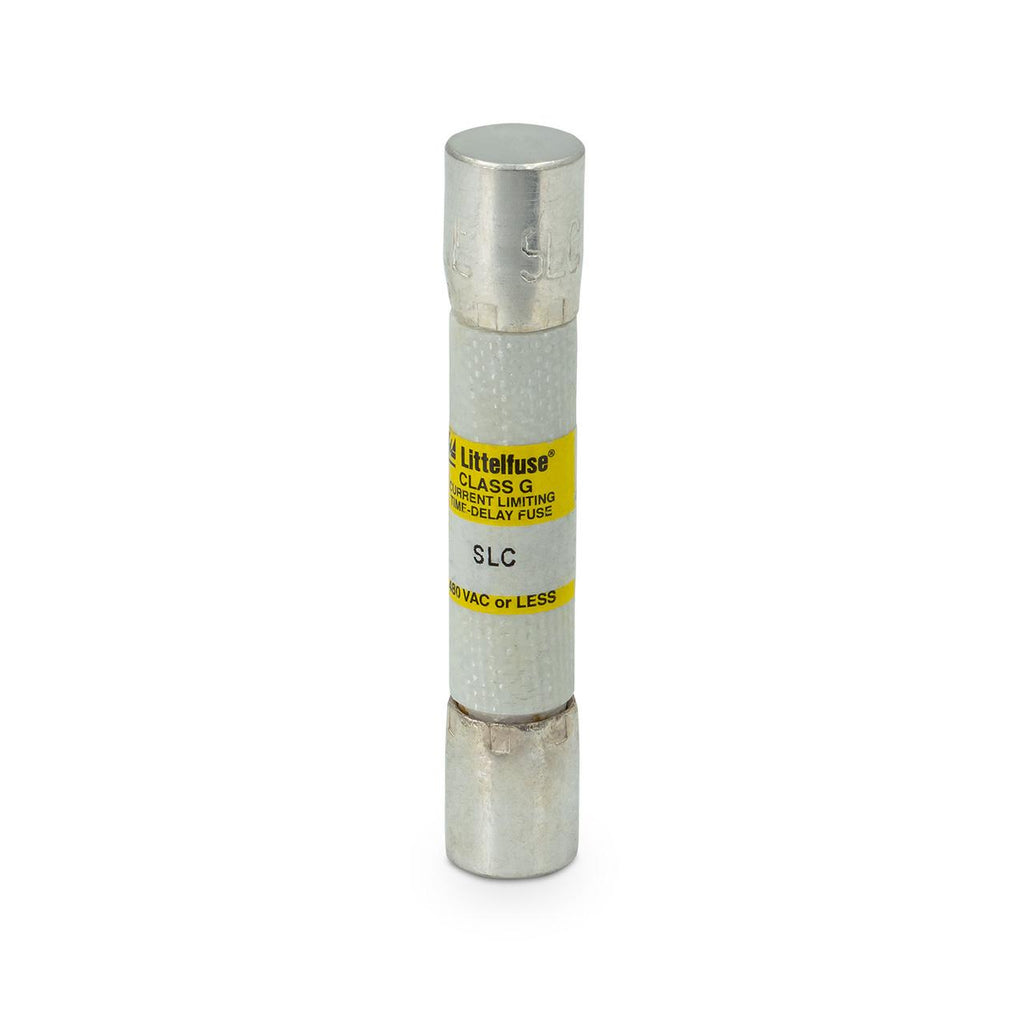

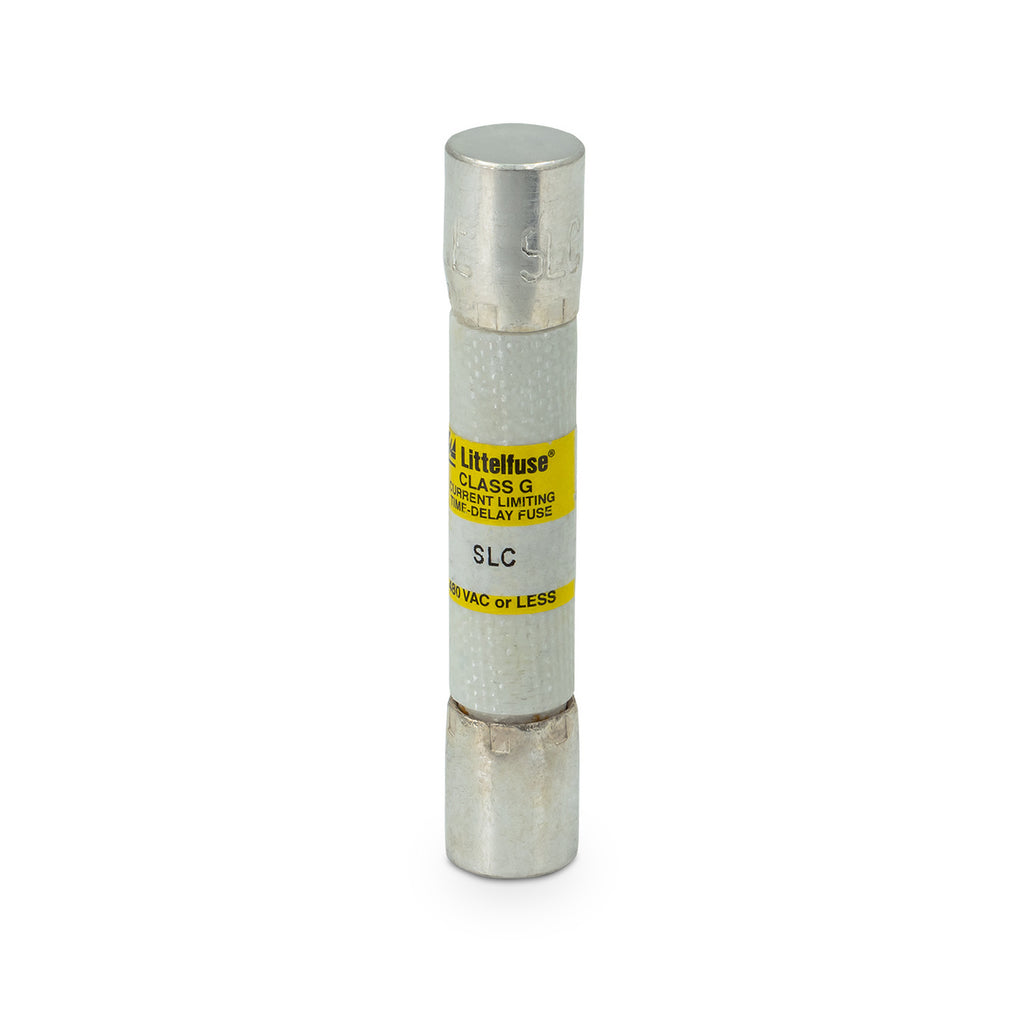

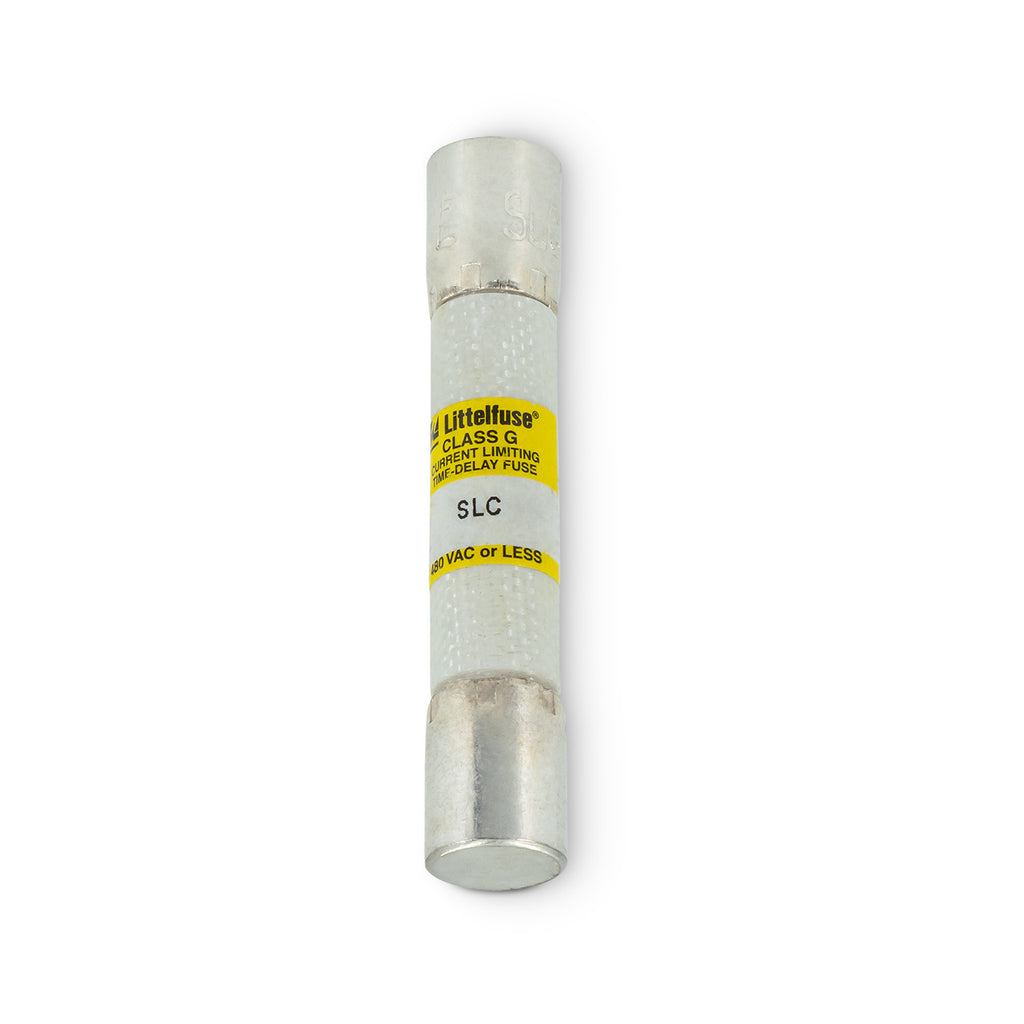

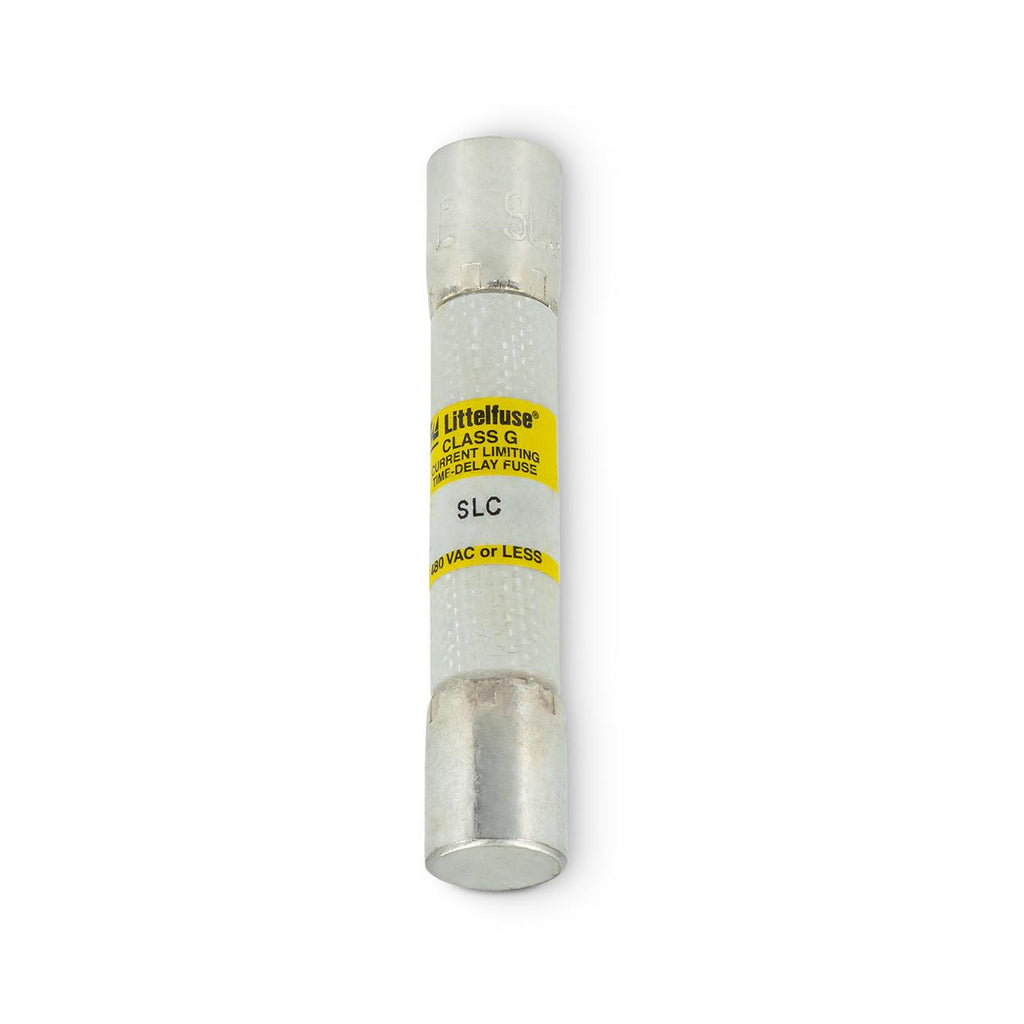

SLC-060 is a Littelfuse 60 Amp, 480 Volt AC Class G time delay fuse designed for branch circuit protection.This fuse features current limiting capability with a 100,000 A interrupting rating at 480 VAC and 10,000 A at 170 VDC. It has a compact size of 13/32" diameter by 2 1/4" length, with a unique length design to prevent over-fusing and incorrect fuse insertion. The SLC-060 is UL Listed (File: E81895) and CSA Certified (File: LR29862), meeting NEC requirements for branch circuit protection.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 480 V AC, 170 V DC
- Fuse Class: G
- Time Delay: Medium
- Interrupting Rating: 100,000 AIC @ 480 VAC, 10,000 AIC @ 170 VDC
- Poles: 1
- Physical Size: 13/32" diameter x 2 1/4" length
- Mounting Type: Cartridge fuse holder compatible
- Certifications: UL Listed, CSA Certified, QPL-W-F-1814
- Series: SLC
- Current Limiting: Yes
Specifications
- Part Number: SLC-060
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 079458420784
- Weight : 0.03 lb
