Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
SLC-040

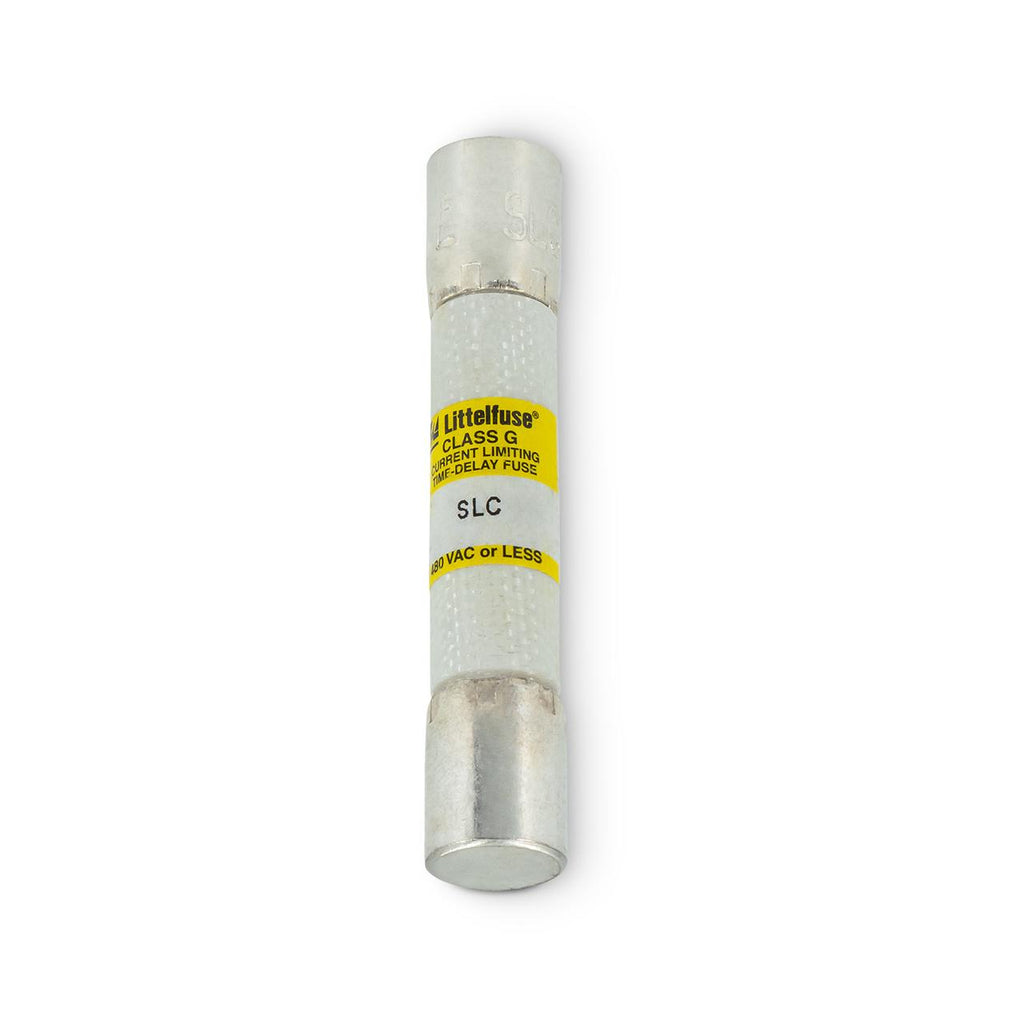

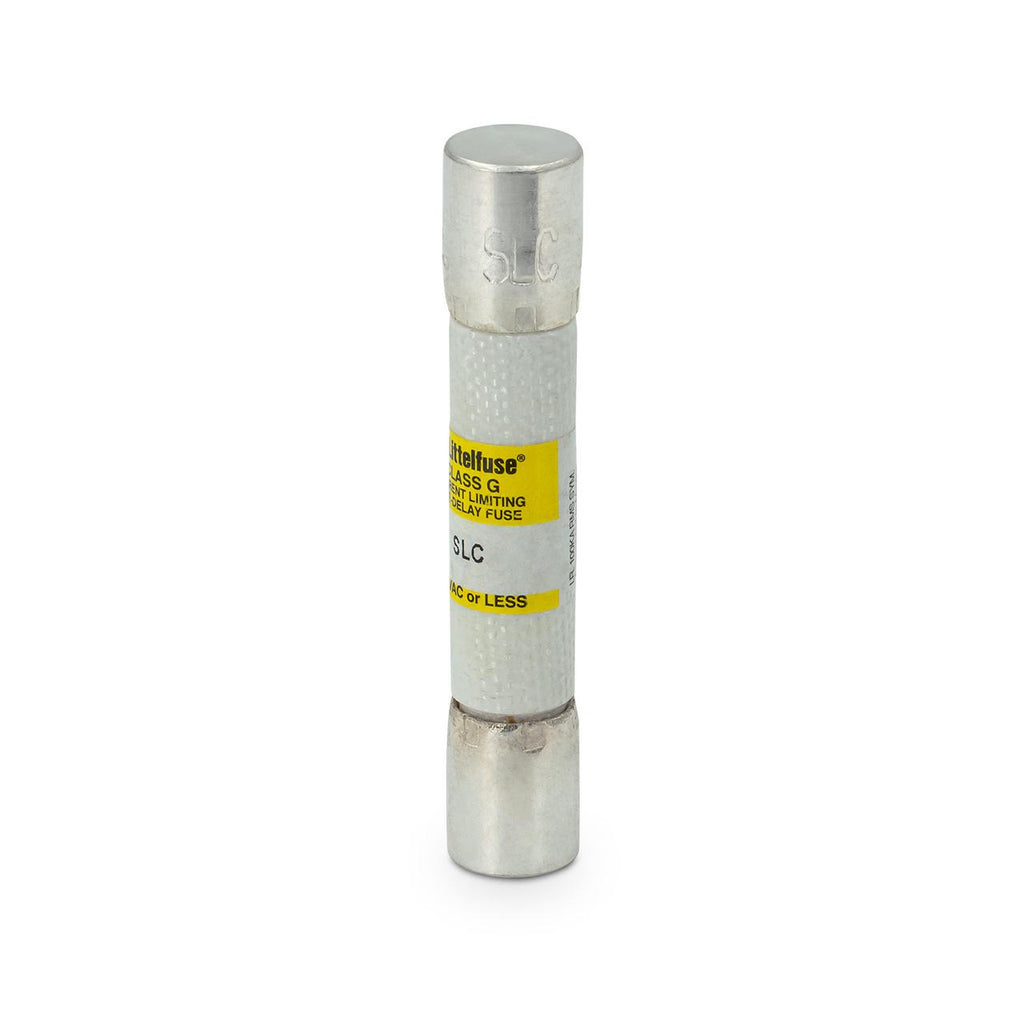

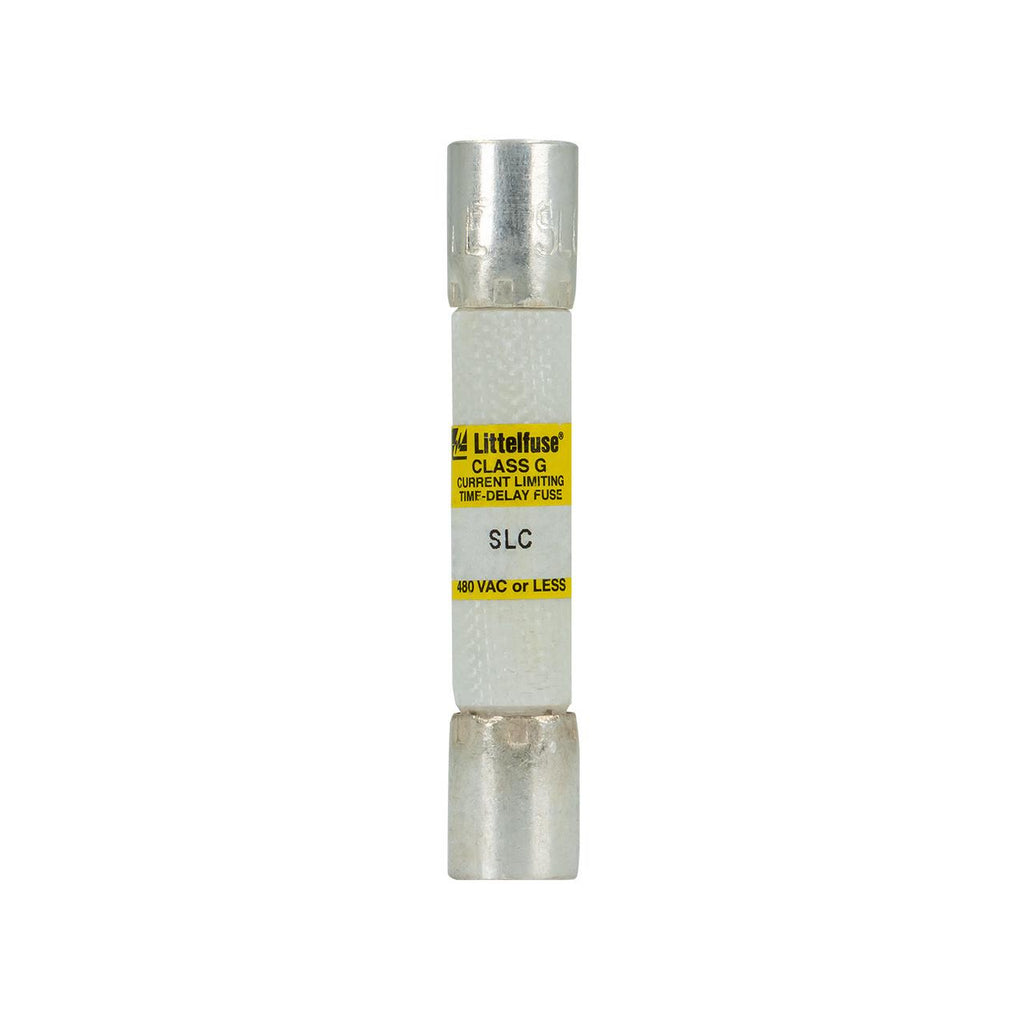

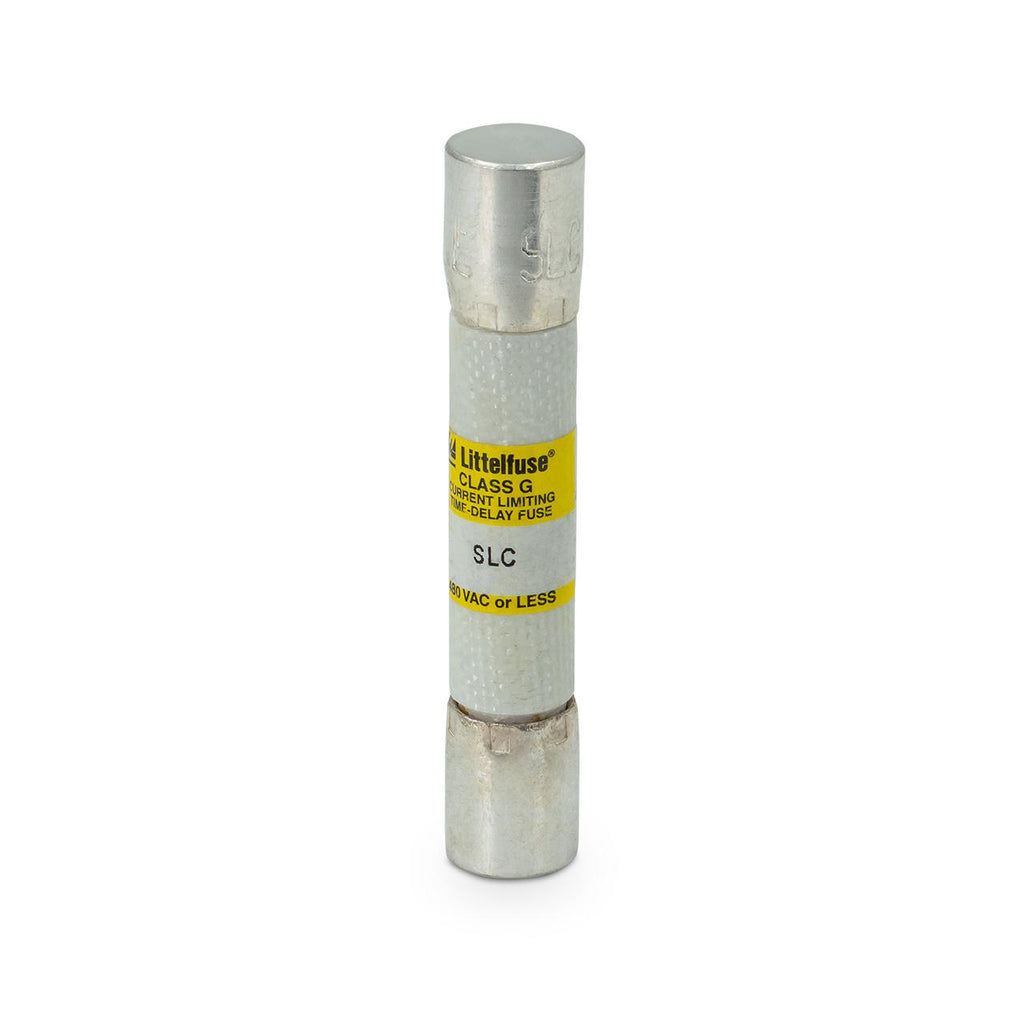

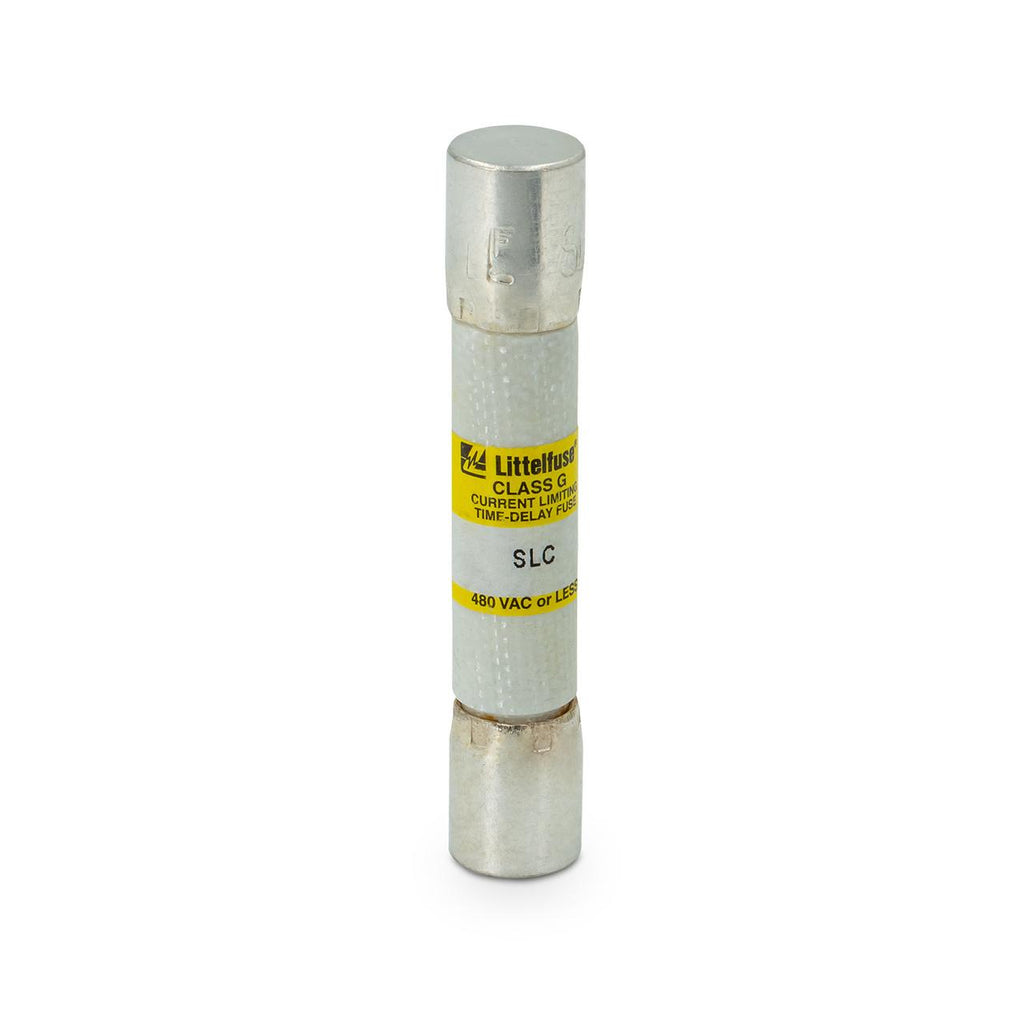

SLC-040 is a Littelfuse 40 Amp, 480 Volt AC Class G time delay fuse designed for branch circuit protection.This fuse features a current-limiting design with medium time delay characteristics, providing reliable protection for branch circuits. It has a compact cartridge mounting type with a physical size of 13/32" diameter by 2 1/4" length. The SLC-040 fuse is UL Listed and CSA Certified, rated for 100,000 A interrupting capacity at 480 VAC and 10,000 A at 170 VDC. Its unique length prevents over-fusing and insertion of incorrect amperage fuses, ensuring safety and compliance with NEC requirements.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: 480 VAC, 170 VDC
- Fuse Class: Class G
- Time Delay: Medium Acting
- Interrupting Rating: 100,000 AIC @ 480 VAC, 10,000 AIC @ 170 VDC
- Mounting Type: Cartridge
- Physical Size: 13/32" diameter x 2 1/4" length
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Series: SLC
- Current Limiting: Yes
Specifications
- Part Number: SLC-040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 007945842075
- GTIN : 00079458420753
- Weight : 5.19
