SLC-030 - Littelfuse 30A 480V Class G Time Delay Fuse, 1 Pole, 100kA Interrupt Rating

SLC-030

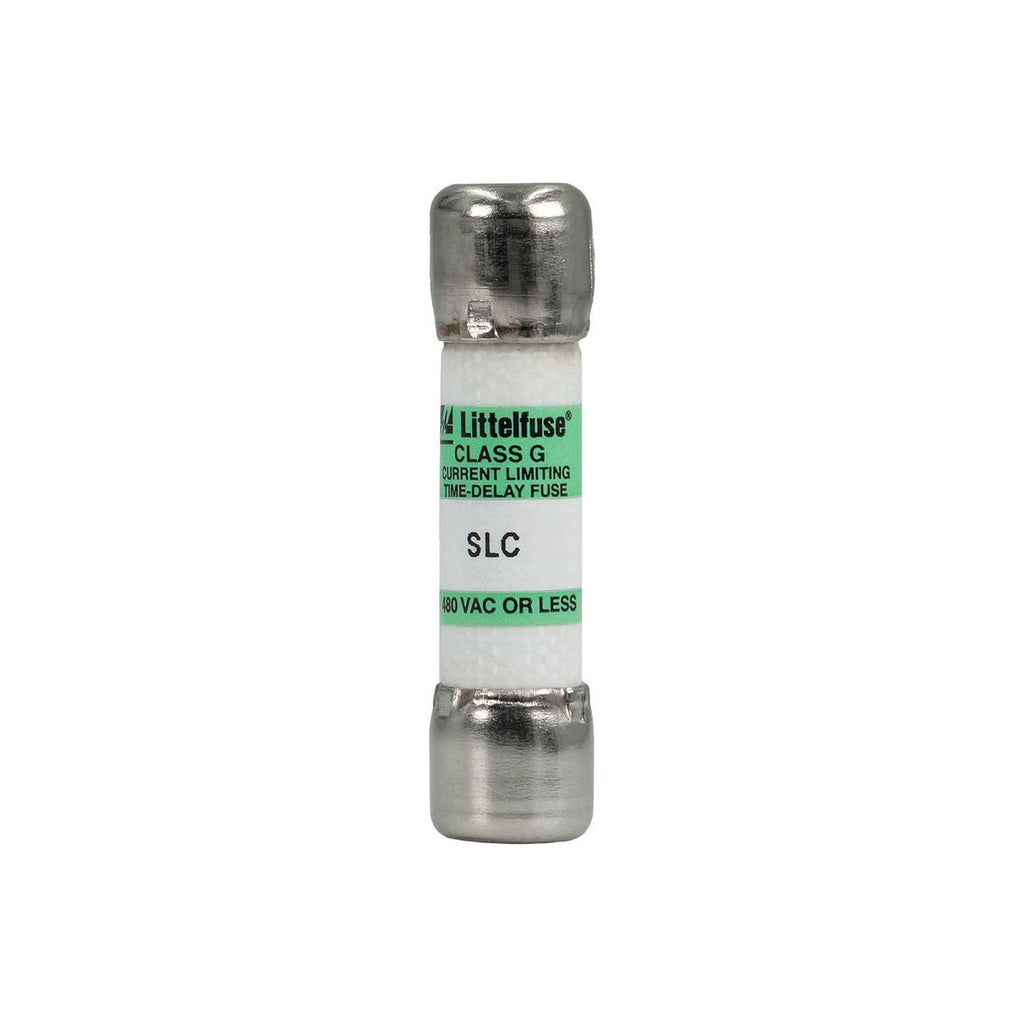

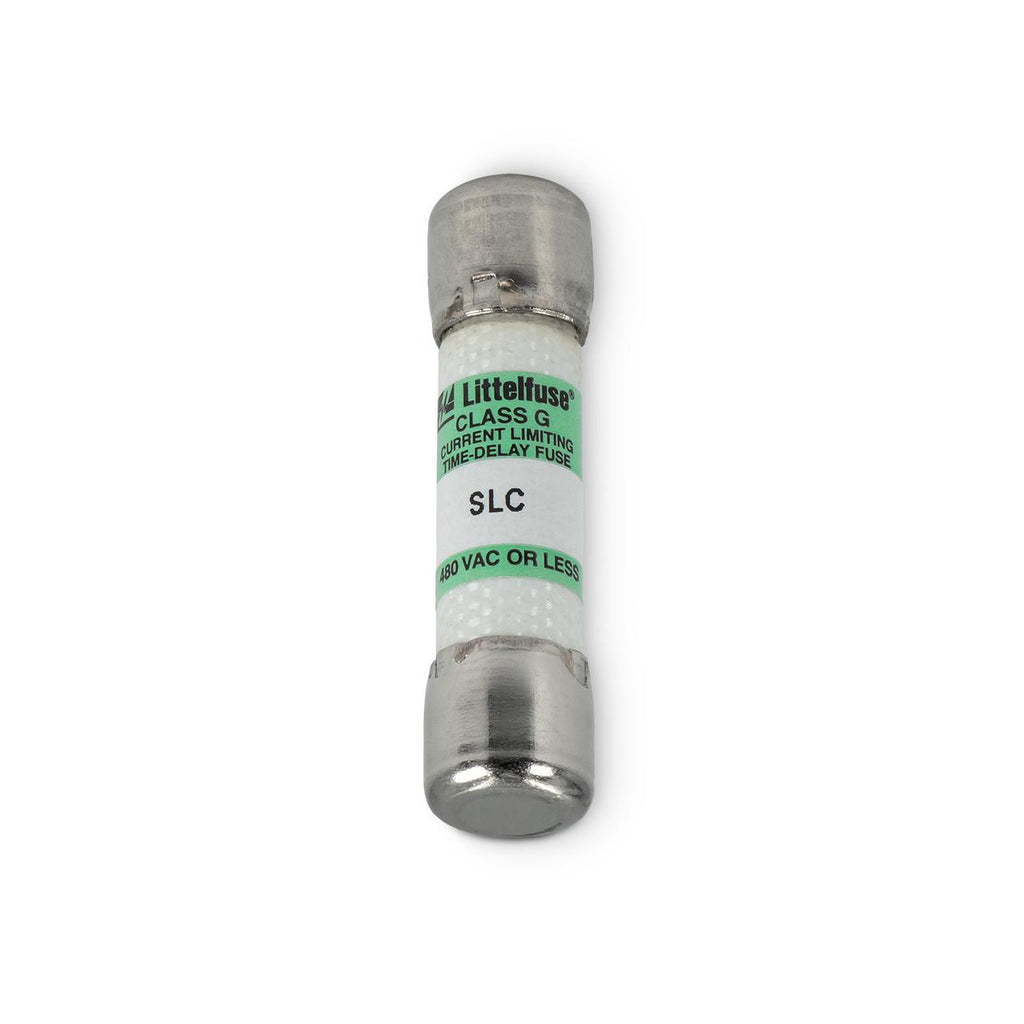

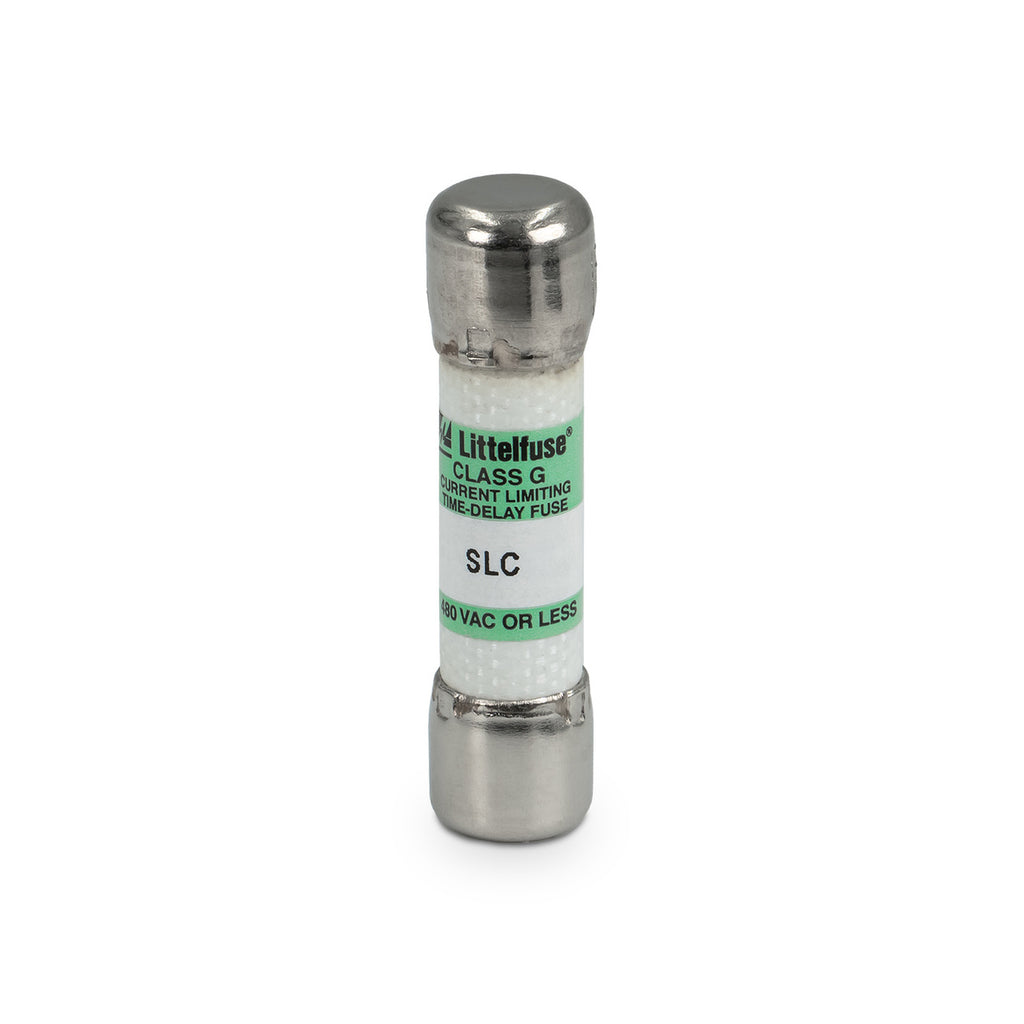

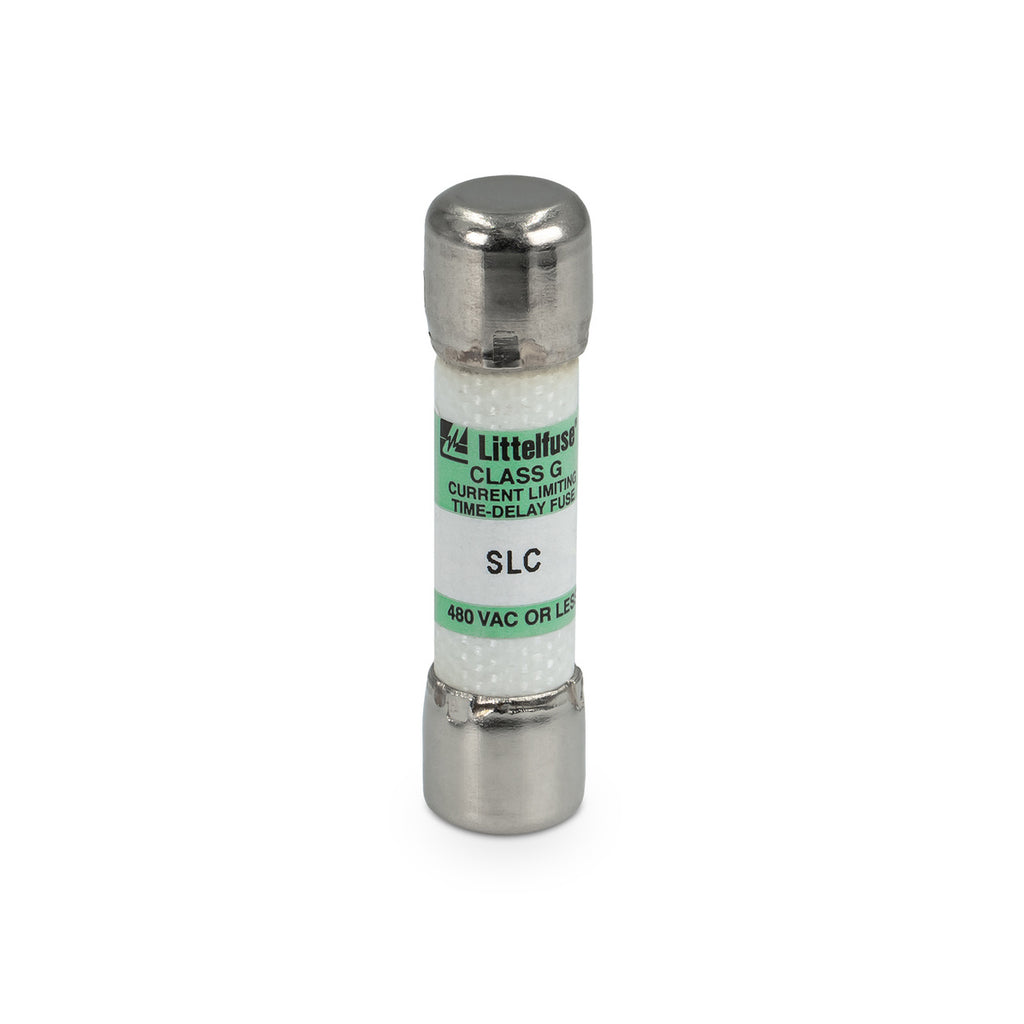

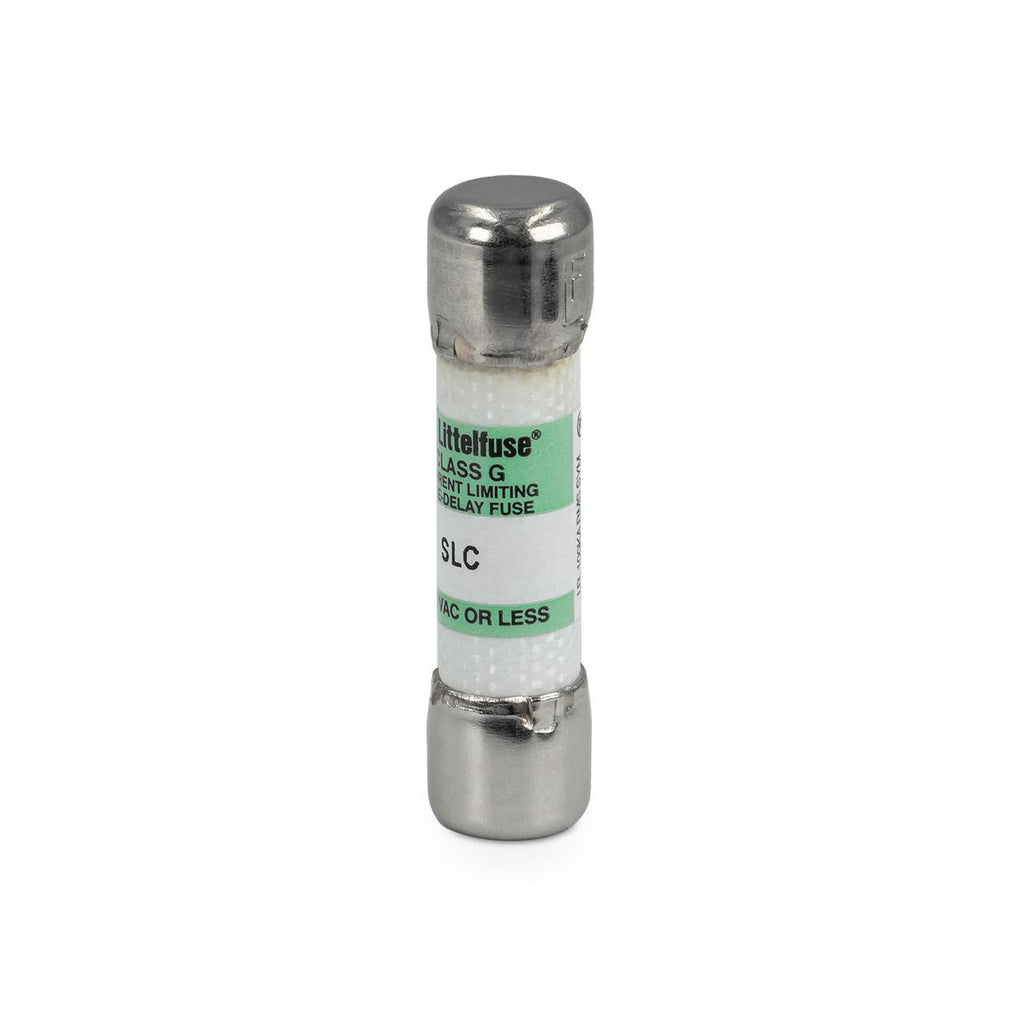

SLC-030 is a Littelfuse 30 Amp, 480 Volt AC, Class G time delay fuse designed for branch circuit protection.This fuse features a current-limiting design with a 100,000 AIC interrupting rating at 480 VAC and 10,000 AIC at 170 VDC. It has a compact cartridge body measuring 13/32" diameter by 1 5/8" length, meeting UL 248-5 and CSA certification standards. The fuse is UL Listed (File: E81895) and CSA Certified (File: LR29862), suitable for cost-effective, reliable circuit protection with a medium acting time delay characteristic.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 480 VAC, 170 VDC
• Fuse Class: Class G
• Fuse Type: Time Delay (Medium Acting)
• Interrupting Rating: 100,000 AIC at 480 VAC, 10,000 AIC at 170 VDC
• Poles: 1 (Cartridge Body)
• Physical Size: 13/32" diameter x 1 5/8" length
• Mounting Type: Cartridge Fuse Holder
• Certifications: UL Listed, CSA Certified, QPL-W-F-1814
• Current Limiting: Yes
• Standards: UL 248-5, CSA, Federal Specification WF-1814
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: SLC-030
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Diameter : 0.41
• Class Rating : G
• Barrels : 1



Product Data

• UPC : 079458420739
• Weight : 0.08
