Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
SLC-025

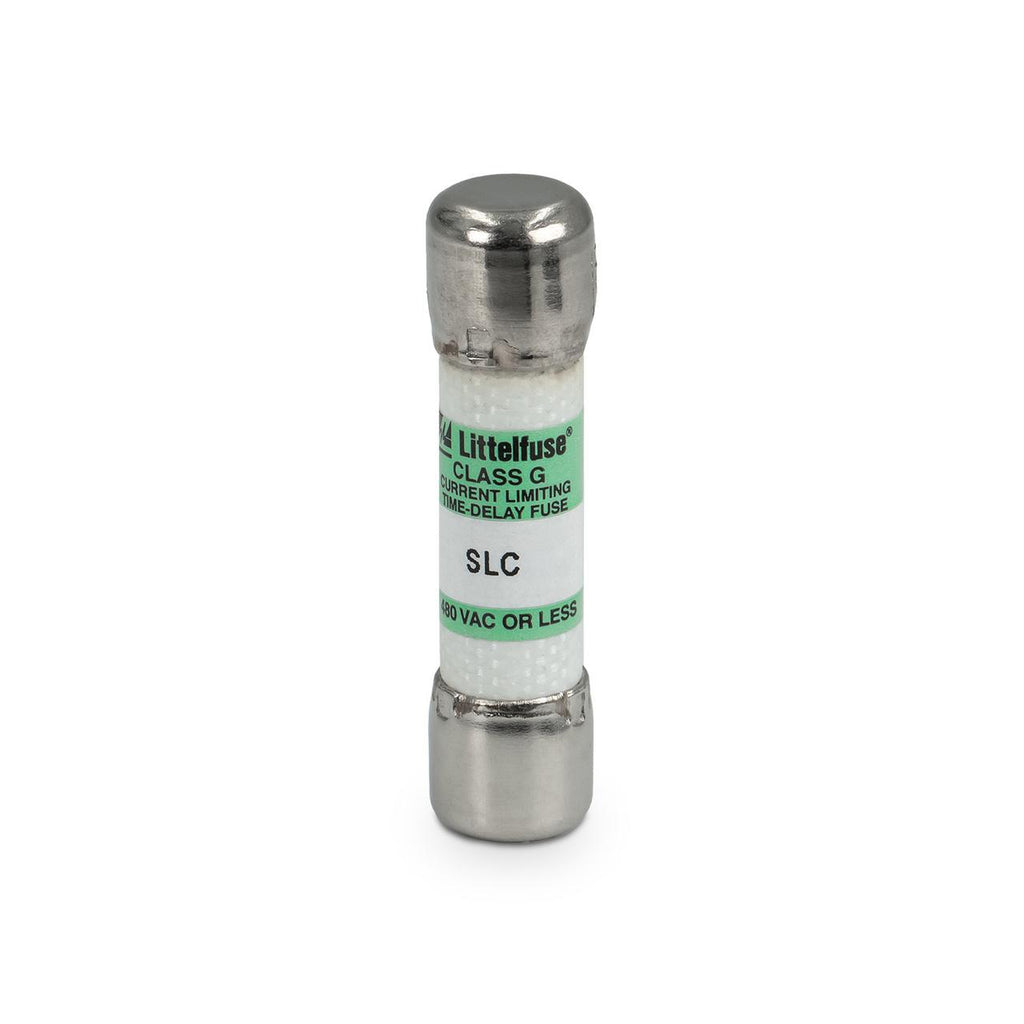

SLC-025 is a Littelfuse 25 Amp, 480 Volt AC Class G time delay fuse cartridge designed for branch circuit protection.This Littelfuse SLC-025 fuse features current limiting and a medium time delay characteristic, suitable for cost-effective branch circuit protection. It has a physical size of 13/32" diameter by 1 5/8" length, with a 100,000 A interrupting rating at 480 VAC and 10,000 A at 170 VDC. The fuse is UL Listed (File: E81895) and CSA Certified (File: LR29862), meeting NEC requirements for branch circuit protection.
- Key Specifications
- Amperage: 25 Amps
- Voltage Rating: 480 VAC, 170 VDC
- Class: G
- Time Delay: Medium Acting
- Interrupt Rating: 100,000 AIC @ 480 VAC, 10,000 AIC @ 170 VDC
- Mounting Type: Cartridge
- Physical Size: 13/32" diameter x 1 5/8" length
- UL Listed (E81895) and CSA Certified (LR29862)
- Current Limiting
- Branch Circuit Rated
- RoHS Compliant
Specifications
- Part Number: SLC-025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 079458420722
- Weight : 0.03 lb
