SLC-020 - Littelfuse 20A 600V Class G Time Delay Fuse, 1 Pole, 100kA Interrupt Rating

SLC-020

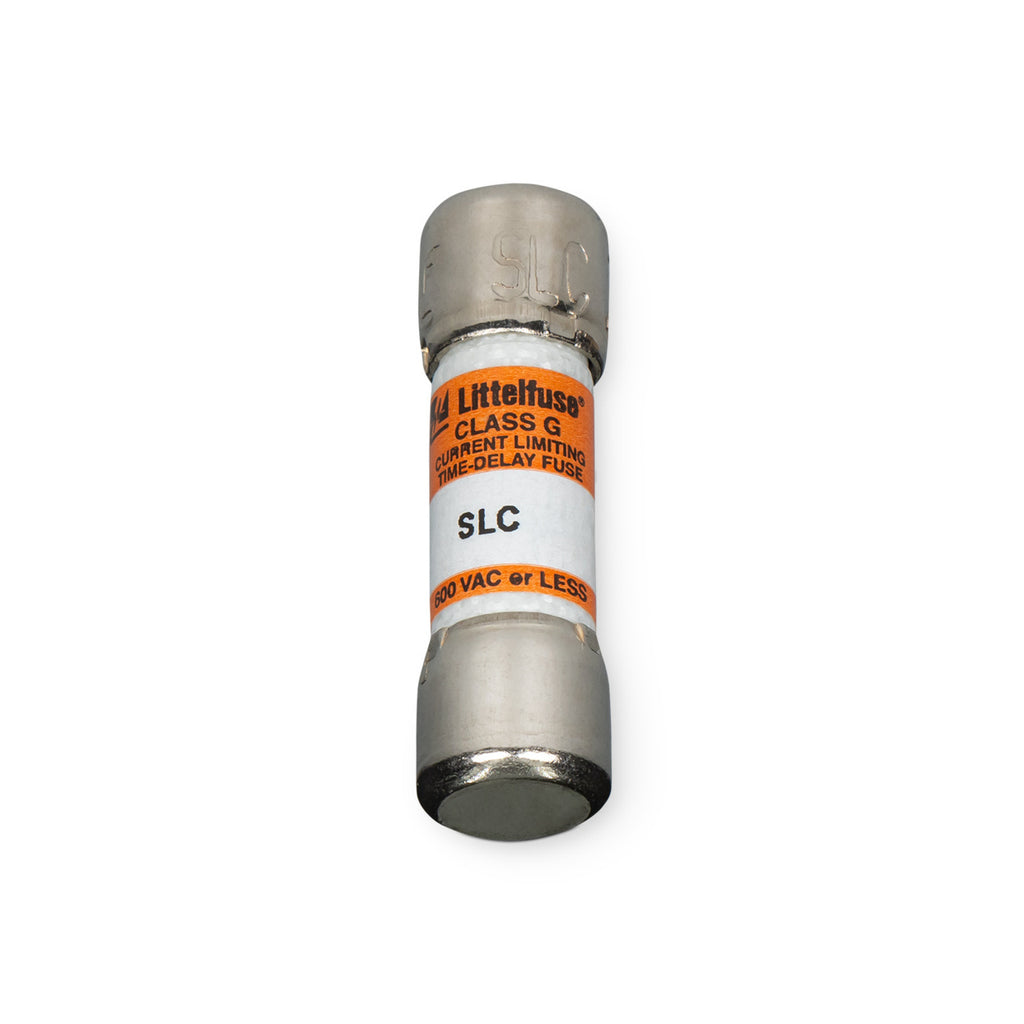

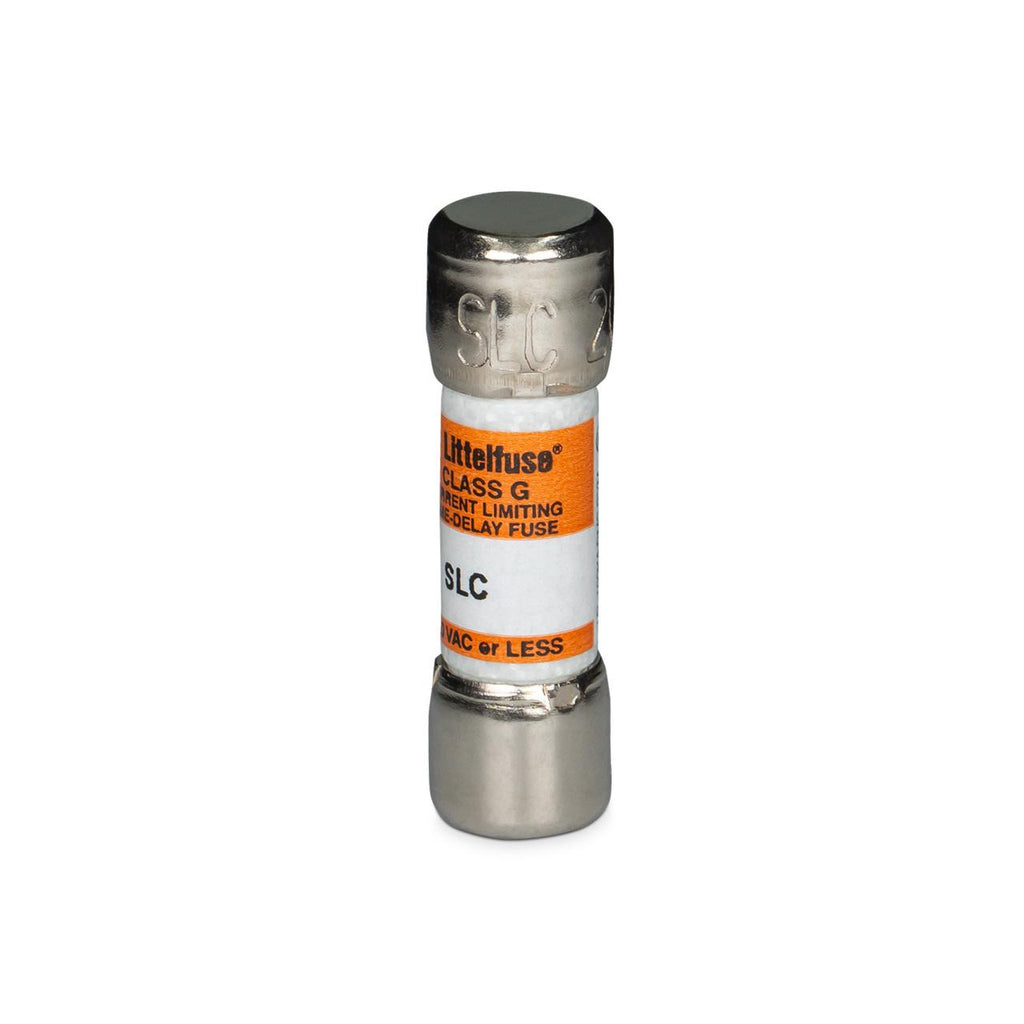

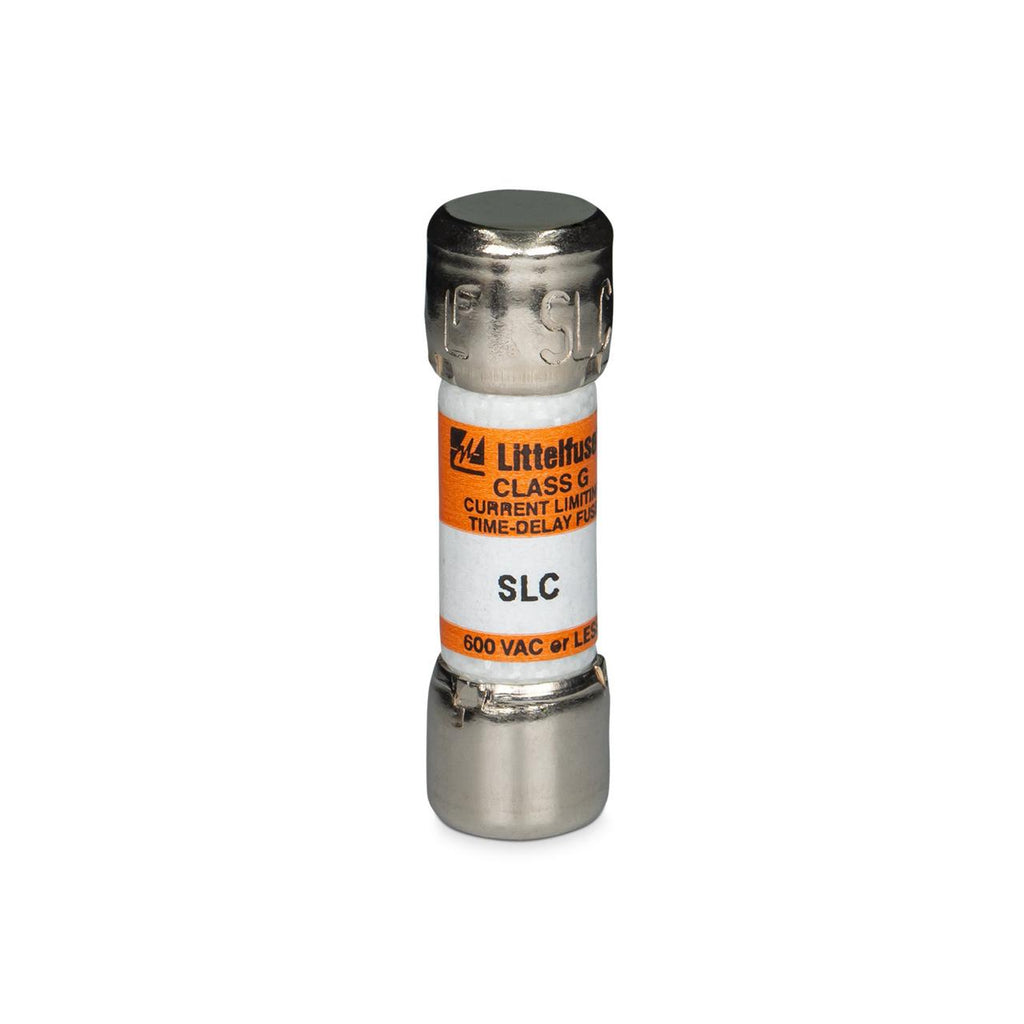

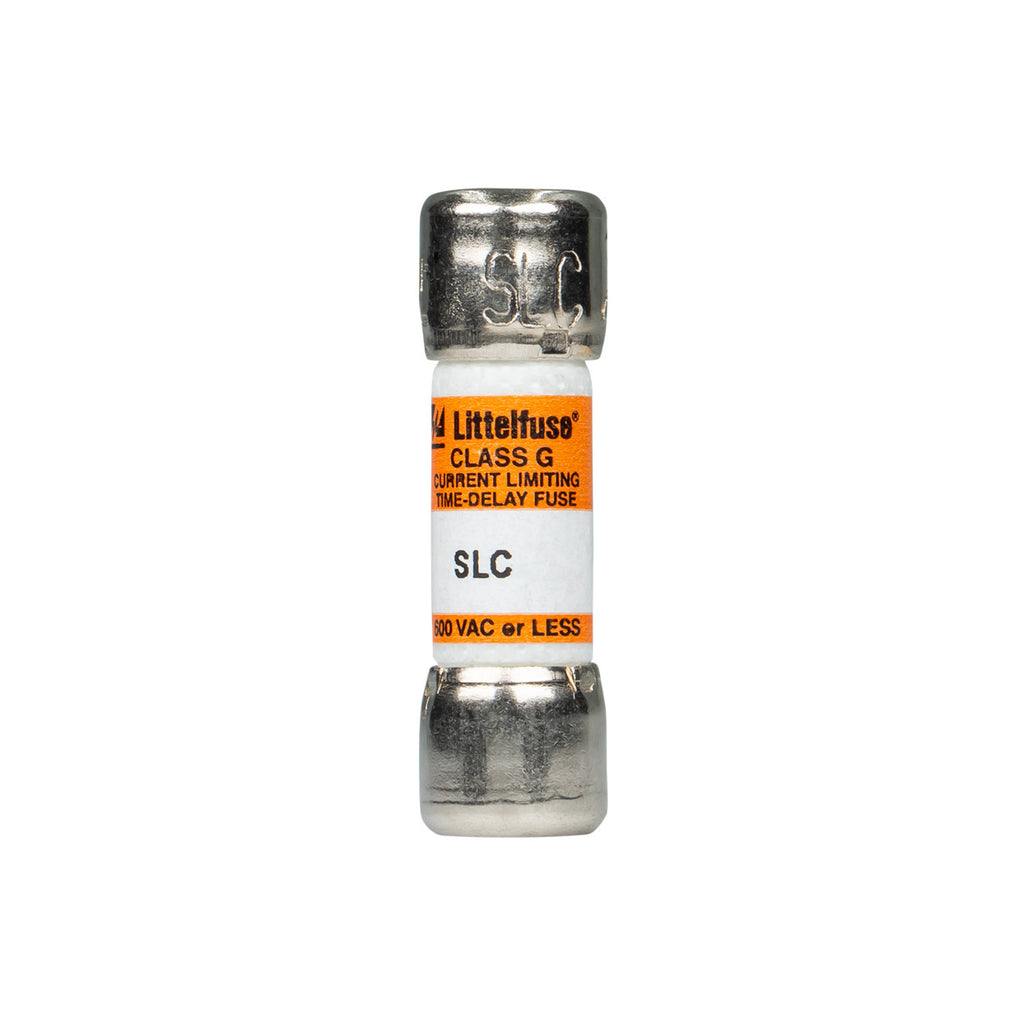

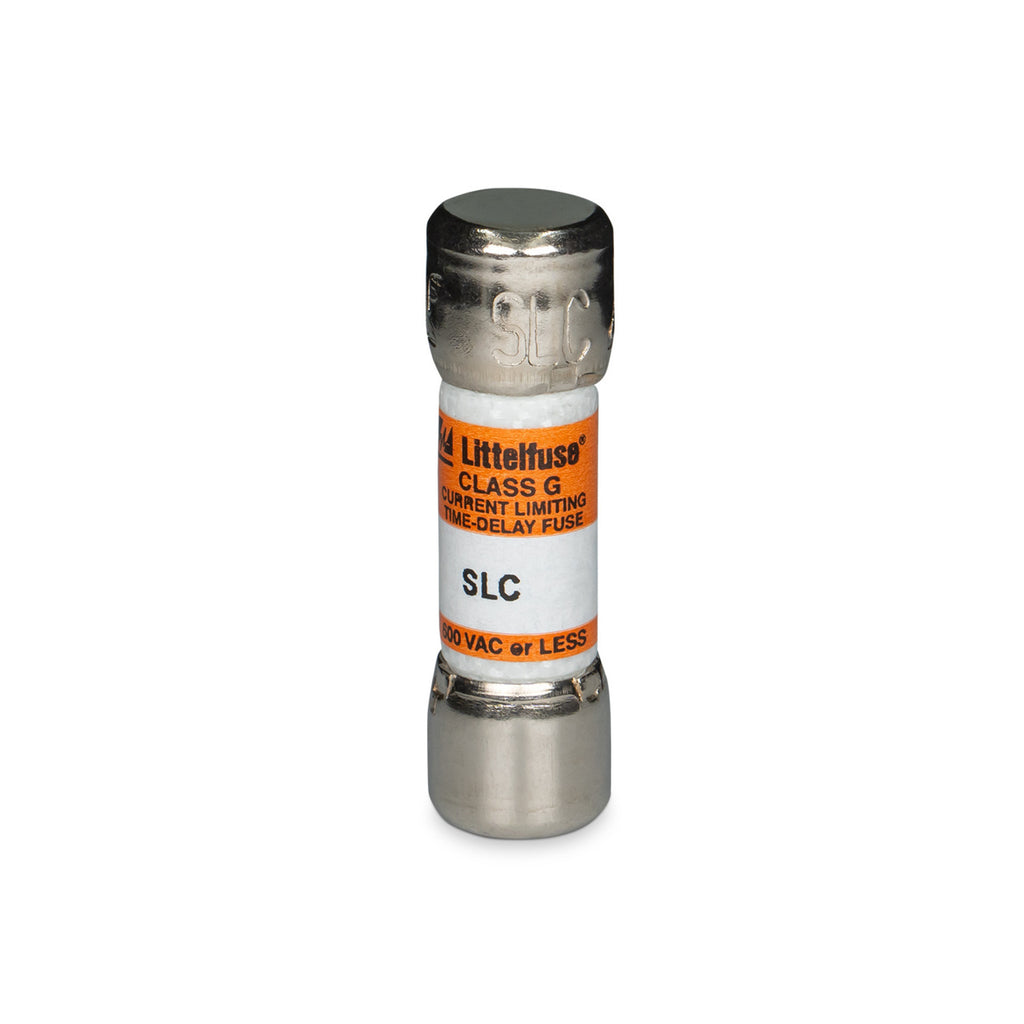

SLC-020 is a Littelfuse 20 Amp, 600 Volt AC Class G time delay fuse designed for branch circuit protection.This fuse features current limiting and a medium time delay characteristic, with a compact size of 13/32" diameter by 1 13/32" length. It is UL Listed and CSA Certified, rated for 100,000 A interrupting capacity at 600 VAC and 10,000 A at 170 VDC. The SLC-020 fuse meets NEC requirements for branch circuit protection and is cost effective for reliable circuit protection.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 600 VAC, 170 VDC
• Poles: 1
• Fuse Class: Class G
• Time Delay: Medium (Time Delay)
• Interrupt Rating: 100,000 AIC @ 600 VAC, 10,000 AIC @ 170 VDC
• Dimensions: 13/32" diameter x 1 13/32" length
• Mounting Type: Cartridge
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Series: SLC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SLC-020
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse

Product Data

• UPC : 079458420715
• Weight : 5 lb
