Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
SLC-015

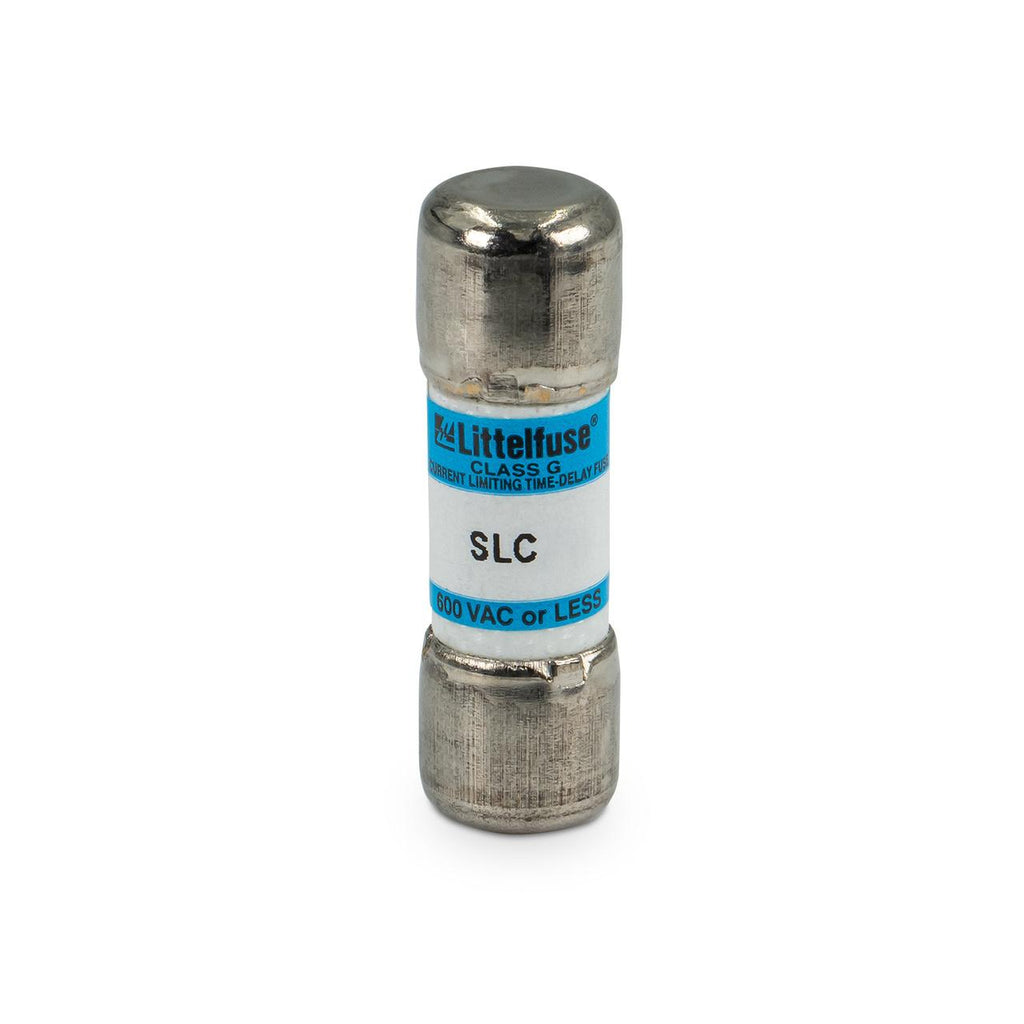

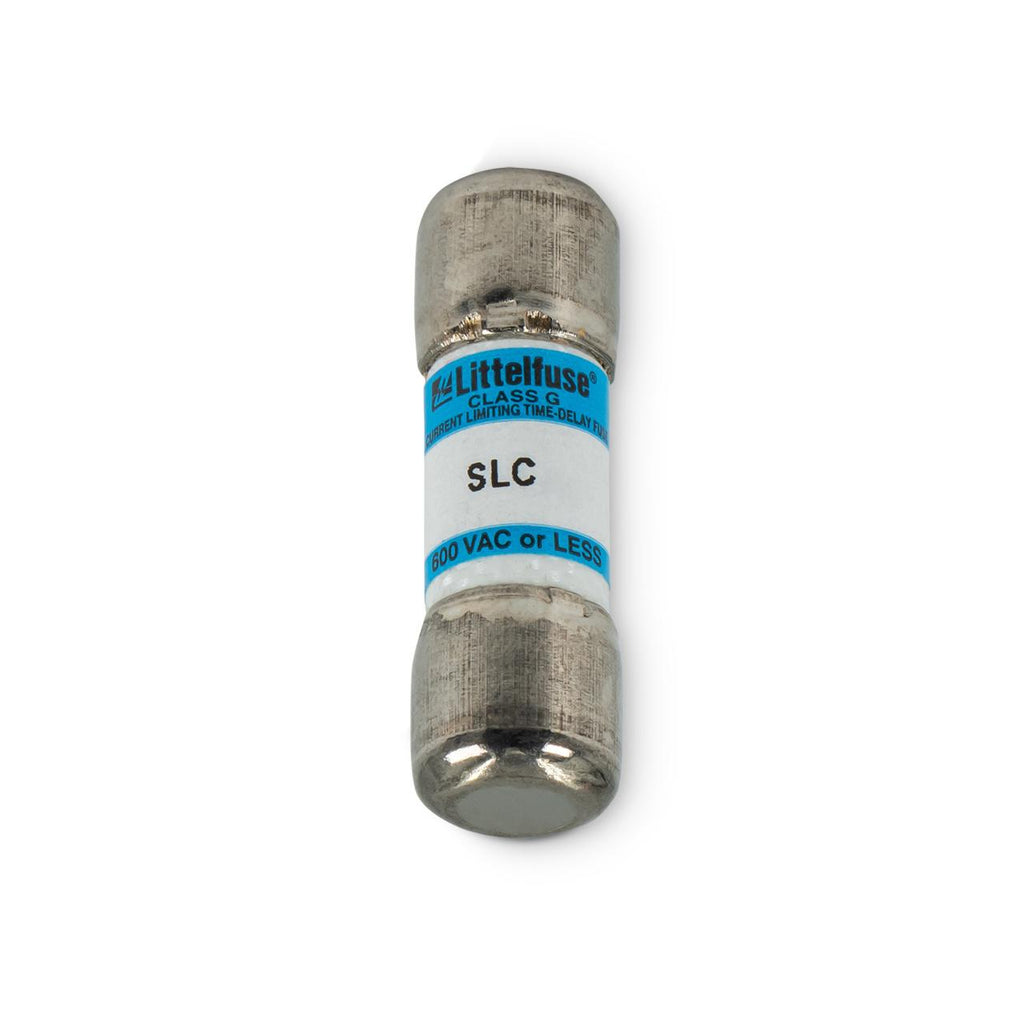

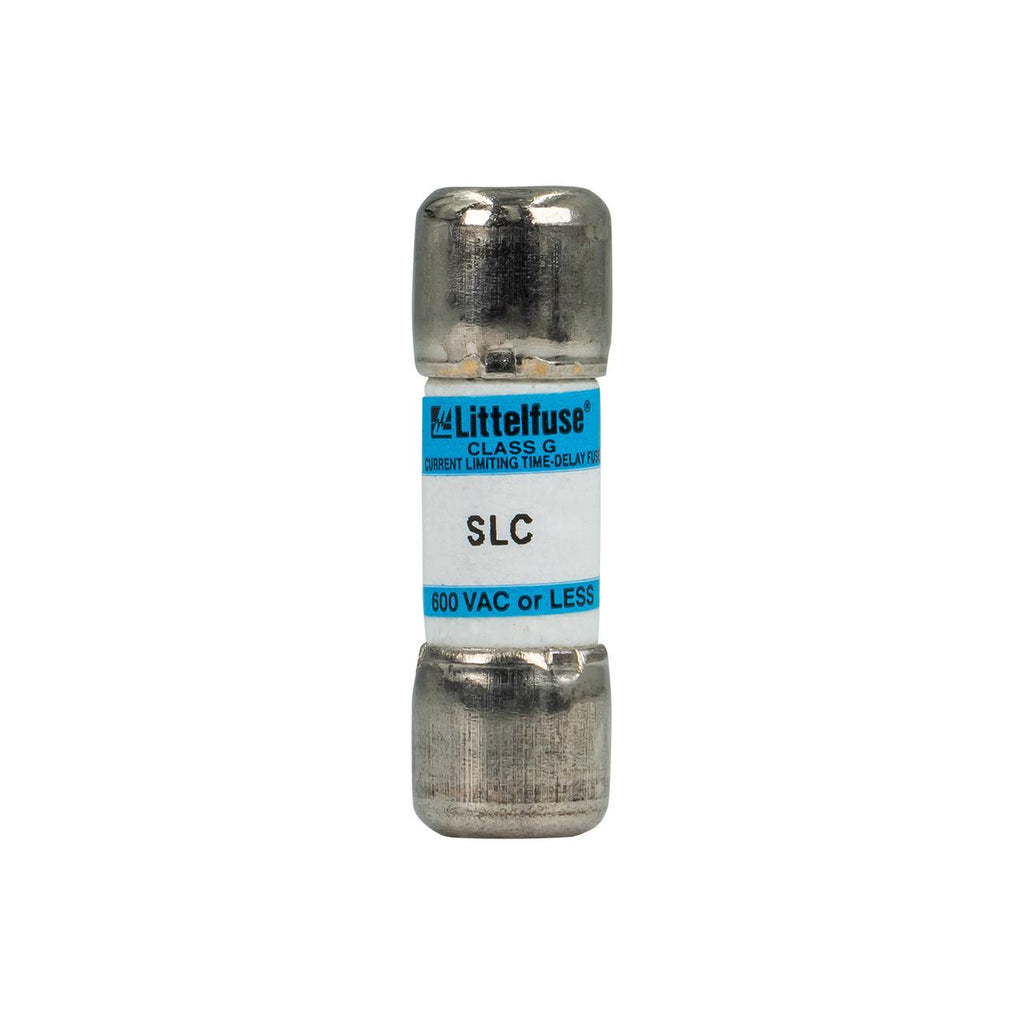

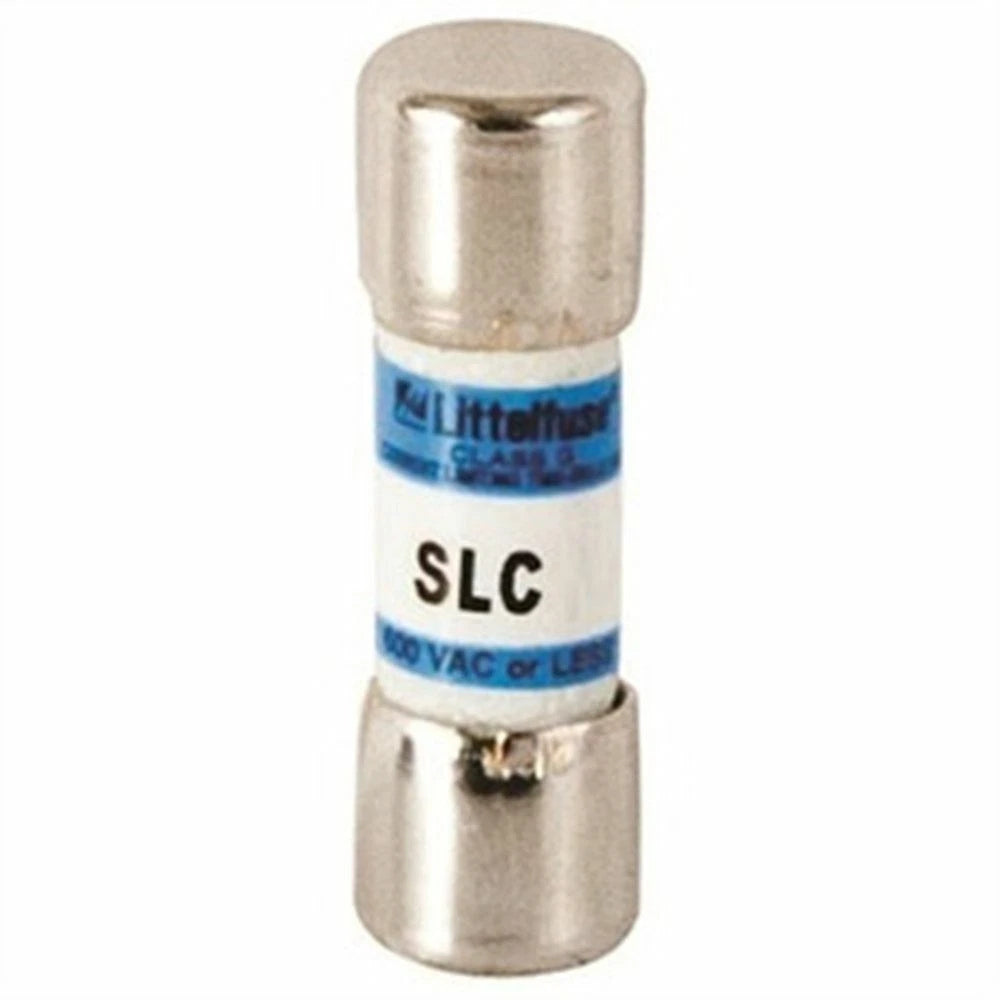

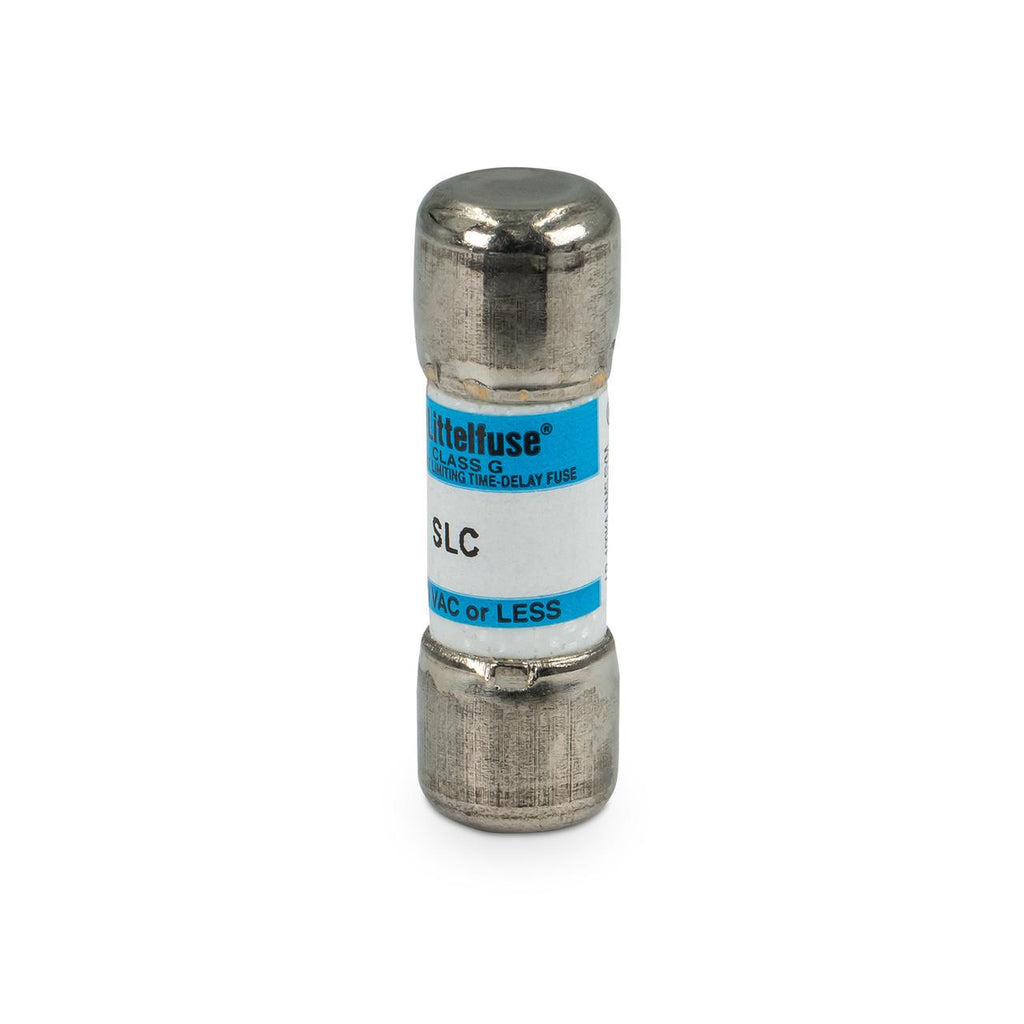

SLC-015 is a Littelfuse 15 Amp, 600 Volt AC Class G time delay fuse designed for branch circuit protection.This Littelfuse SLC-015 fuse features a compact Class G design with current limiting and time delay characteristics. It is UL Listed and CSA Certified, rated for 600 VAC and 170 VDC with an interrupting rating of 100,000 AIC at 600 VAC and 10,000 AIC at 170 VDC. The fuse measures approximately 13/32" diameter by 1 5/16" length, providing cost-effective, reliable branch circuit protection while preventing over-fusing.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 600 VAC, 170 VDC
- Fuse Type: Class G, Time Delay
- Interrupting Rating: 100,000 AIC @ 600 VAC, 10,000 AIC @ 170 VDC
- Dimensions: 13/32" diameter x 1 5/16" length
- Mounting Type: Cartridge Fuse
- Series: SLC
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting
- Branch Circuit Rated
- RoHS Compliant
Specifications
- Part Number: SLC-015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
Product Data
- UPC : 007945842068
- GTIN : 00079458420685
- Weight : 0.08
