Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

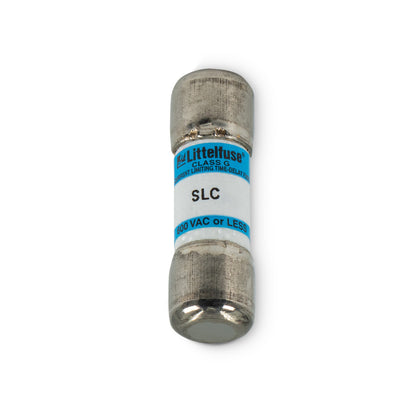

SLC-005
SLC-005 is a Littelfuse Class G time delay fuse designed for reliable branch circuit protection.This 5 amp, 600 volt AC fuse features a medium time delay characteristic and current-limiting capability. It has a cartridge mounting type with a compact size of approximately 13/32 inch diameter by 1 5/16 inch length. The fuse offers a 100 kA interrupting rating at AC voltages and meets UL 248-5, CSA, and Federal Specification WF-1814 standards. It is RoHS compliant and suitable for cost-effective branch circuit protection applications.
- Key Specifications
- Amperage: 5 A
- Voltage Rating: 600 V AC, 170 V DC
- Fuse Class: G
- Time Delay: Medium
- Interrupting Rating: 100 kA AC, 10 kA DC
- Mounting Type: Cartridge
- Dimensions: 13/32 inch diameter, 1 5/16 inch length
- Certifications: UL Listed, CSA Certified, QPL-W-F-1814
- Current Limiting: Yes
- RoHS Compliant
- Part Number: SLC-005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 079458420555
- Weight : 0.08
