Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SKPP3612L4XX

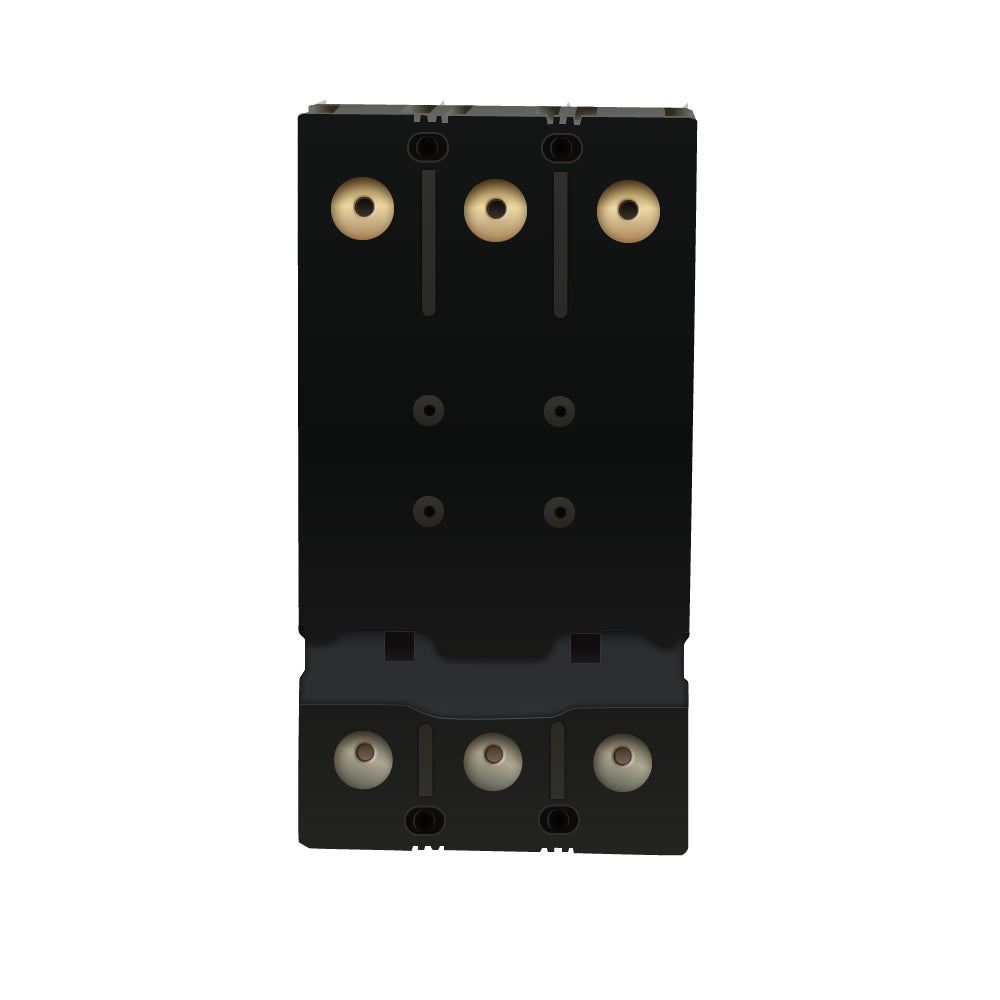

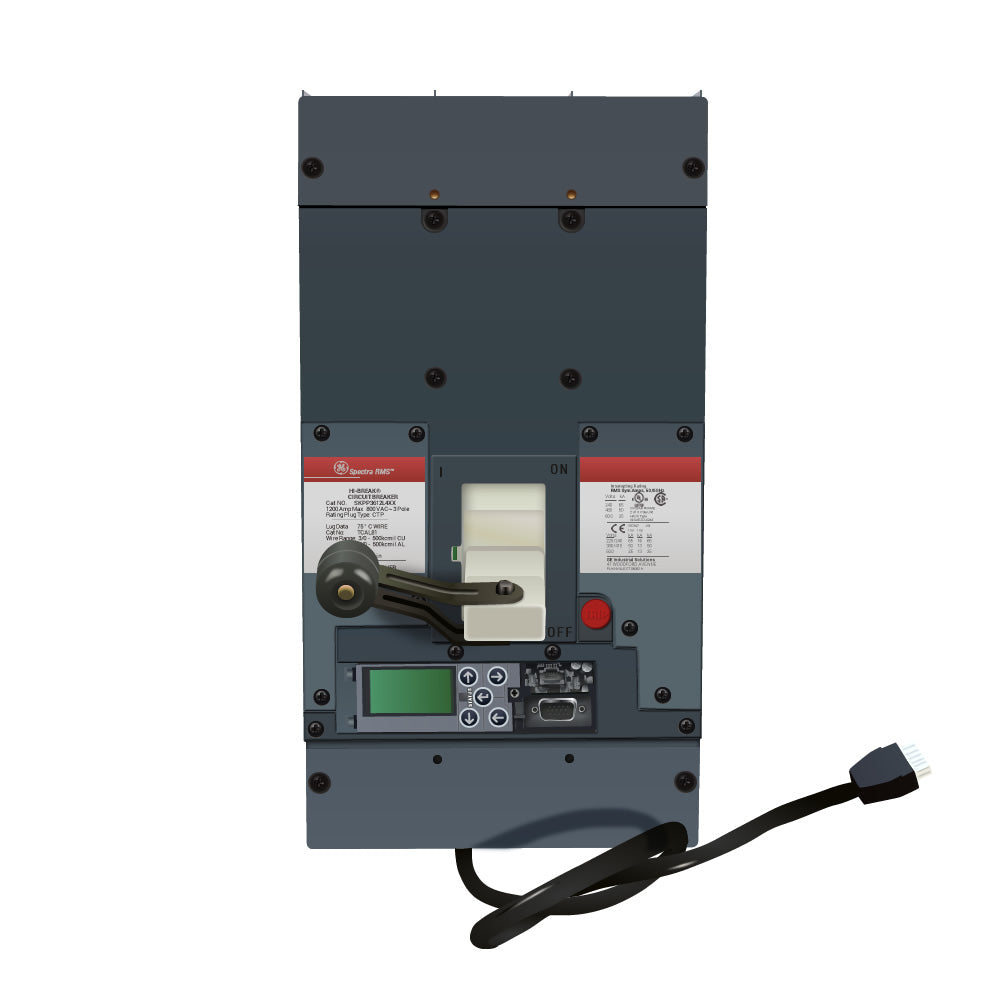

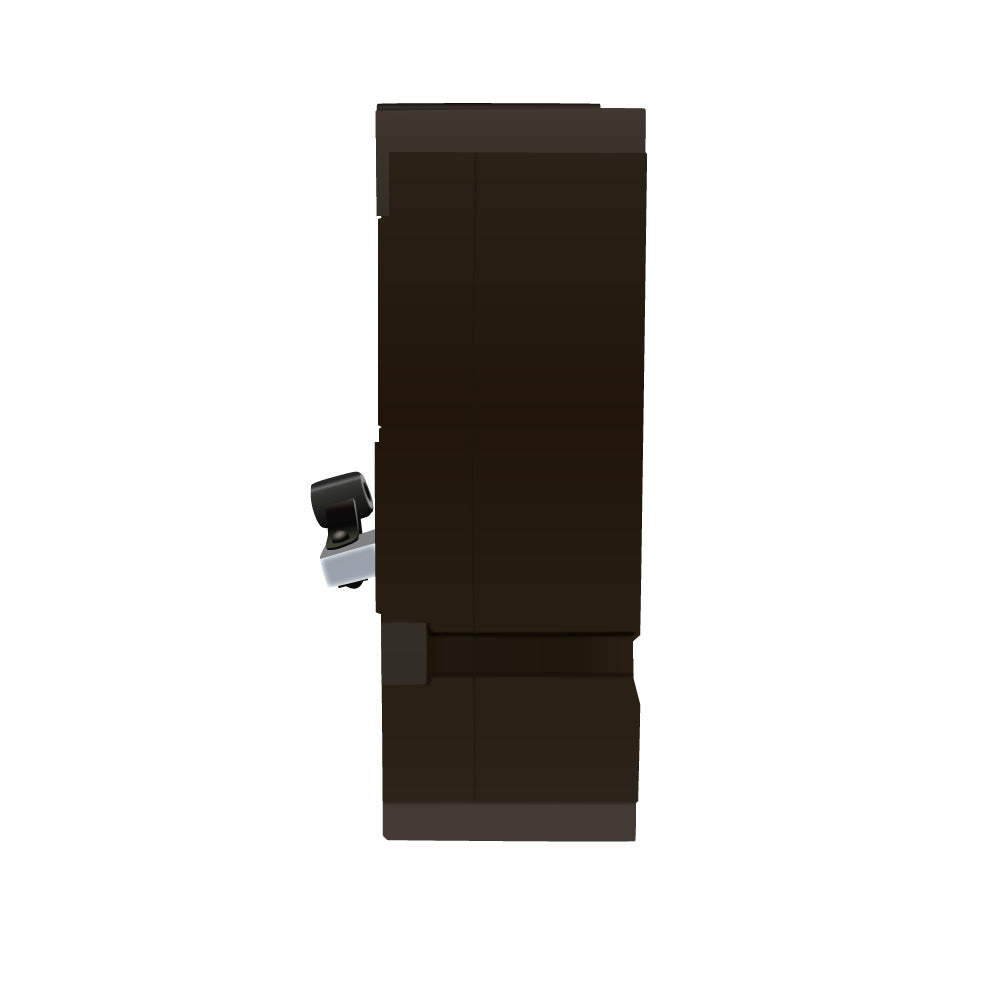

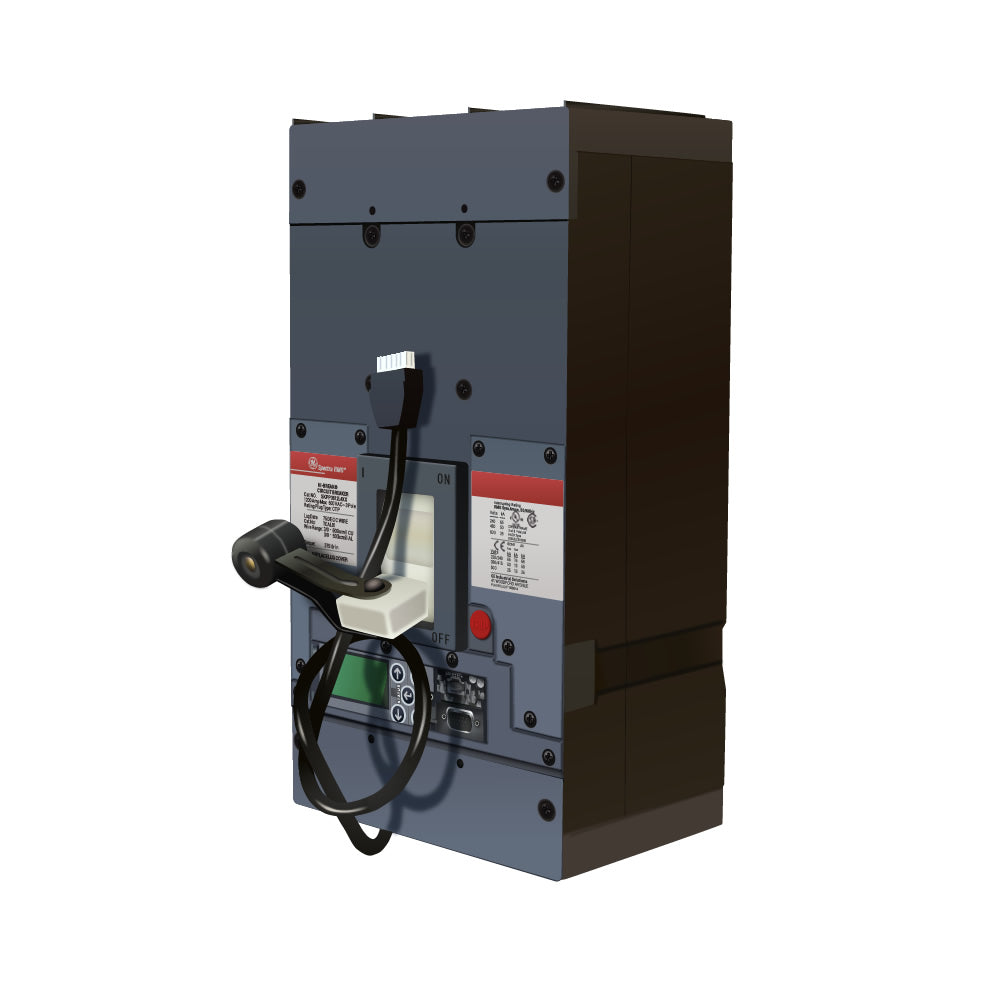

SKPP3612L4XX is a General Electric Spectra Series molded case circuit breaker designed for high-amperage industrial and commercial power distribution applications. This breaker features a solid-state trip unit and is built for reliable protection in demanding environments. The SKPP3612L4XX is a three-pole, 1200 ampere, 600 volt bolt-on circuit breaker with extra high interrupting capacity. It is part of the GE Spectra Series and is suitable for reverse fed installations. The breaker is UL listed and 100% rated for continuous operation.
- Part Number: SKPP3612L4XX
- Manufacturer: General Electric
- Series: Spectra
- Type: SK
- Poles: 3
- Amperage: 1200A
- Voltage: 600V
- Mounting: Bolt-On
- Interrupt Rating: 100kA @ 480V
- Protection: Extra High Interrupting Capacity
- Rating: 100% Rated
- Certification: UL Listed
Specifications
- Part Number: SKPP3612L4XX
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SK
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- Weight : 57
