Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SKHH36AT1200

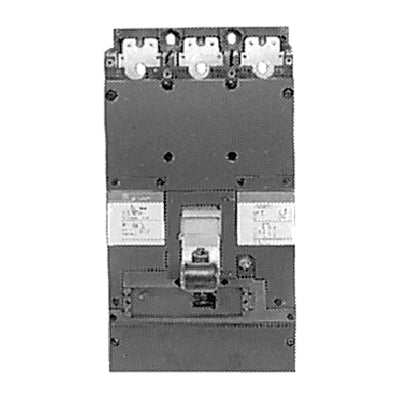

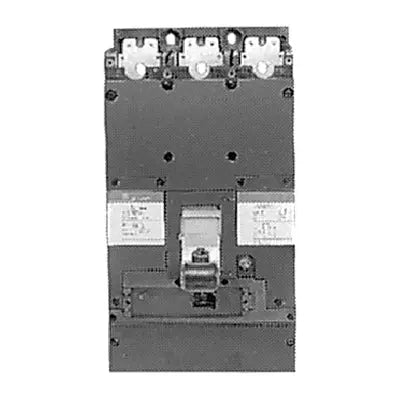

SKHH36AT1200 is a General Electric 3 pole molded case circuit breaker with a 1200A current rating and 600VAC voltage rating, designed for reliable protection in industrial and commercial power distribution systems. This SKHA series breaker features a solid-state electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection, bolt-on mounting, and a standard interrupting rating of 50kA at 480V. The breaker is suitable for reverse feed applications and includes HACR certification for use in HVAC systems.
- Part Number: SKHH36AT1200
- Manufacturer: General Electric
- Series/Frame: SKHA
- Amperage: 1200A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 50kA @ 480V
- Phase: 3
- Continuous Load Rating: Standard
- Trip Unit: Solid-State Electronic (LSI)
- Certifications: HACR, UL, CSA
Specifications
- Part Number: SKHH36AT1200
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SKHH
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Solid State
Product Data
- UPC : 78316438228
- GTIN : 00783164382280
- Weight : 57
