Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SKHB36BA0800

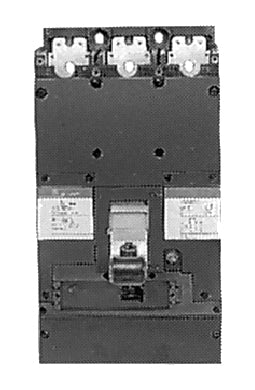

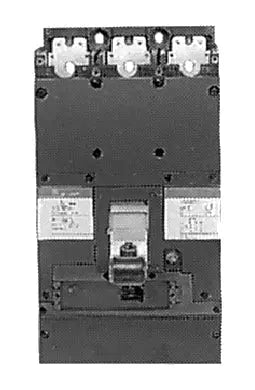

SKHB36BA0800 is a General Electric 3 pole molded case circuit breaker rated for 800 amps and 600 volts with a 50kA interrupting rating at 480V. This breaker is part of the Spectra Series K frame family designed for reliable commercial and industrial power distribution.SKHB36BA0800 features bolt-on mounting and provides robust protection with a trip unit suitable for heavy-duty applications. It meets industry certifications ensuring safety and performance.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 600V
- Number of Poles: 3
- Interrupting Rating: 50kA at 480V
- Mounting Type: Bolt-On
- Series/Frame: Spectra Series K Frame
- Trip Unit: Molded Case
- Weight: Approximately 32 lbs
- Application: Commercial and Industrial
- Certifications: UL Listed
Specifications
- Part Number: SKHB36BA0800
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LIT - Long-Time Instantaneous and Targets
- Protection : Solid State
Product Data
- Weight : 57
