Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SHND69120ANGTH

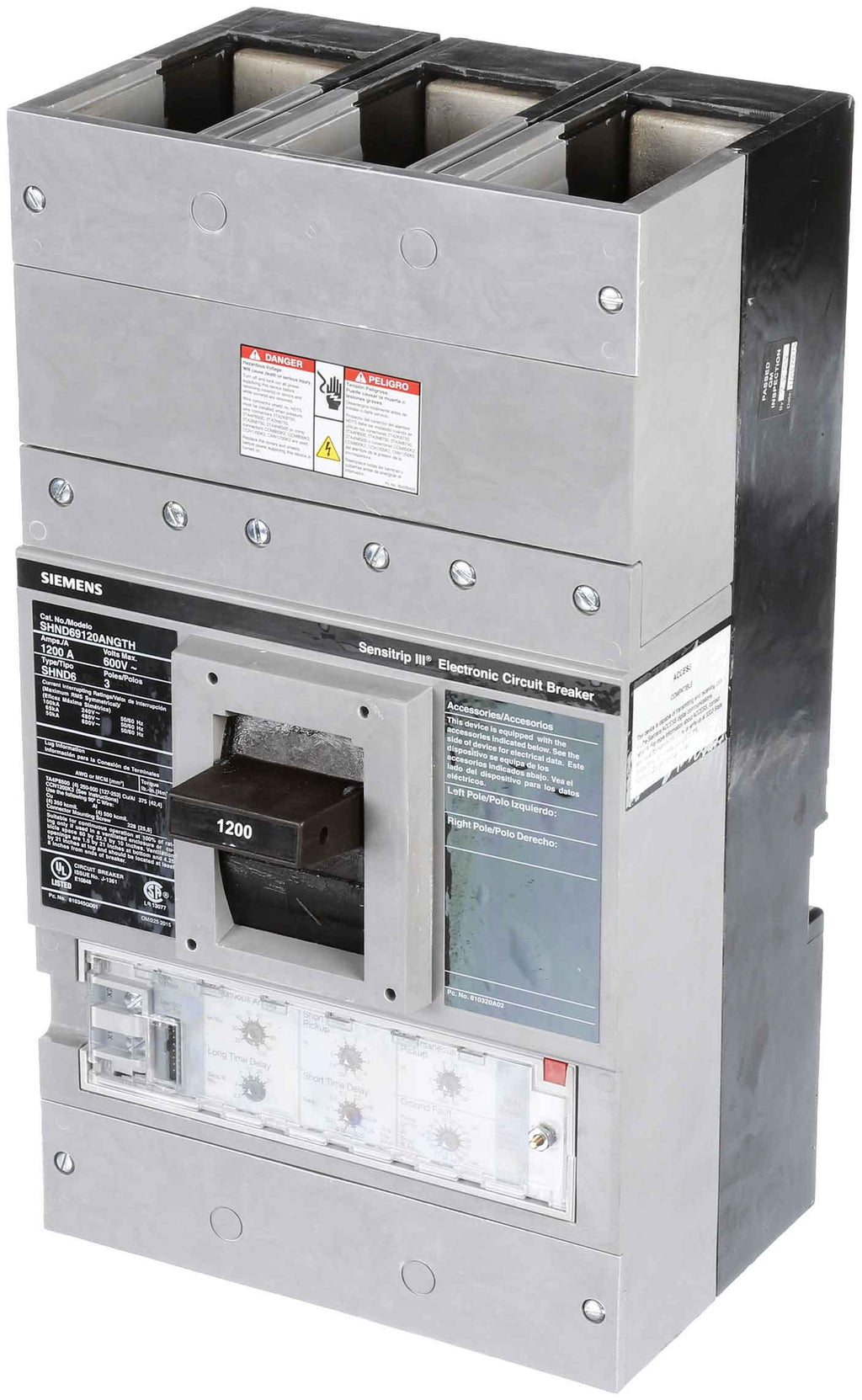

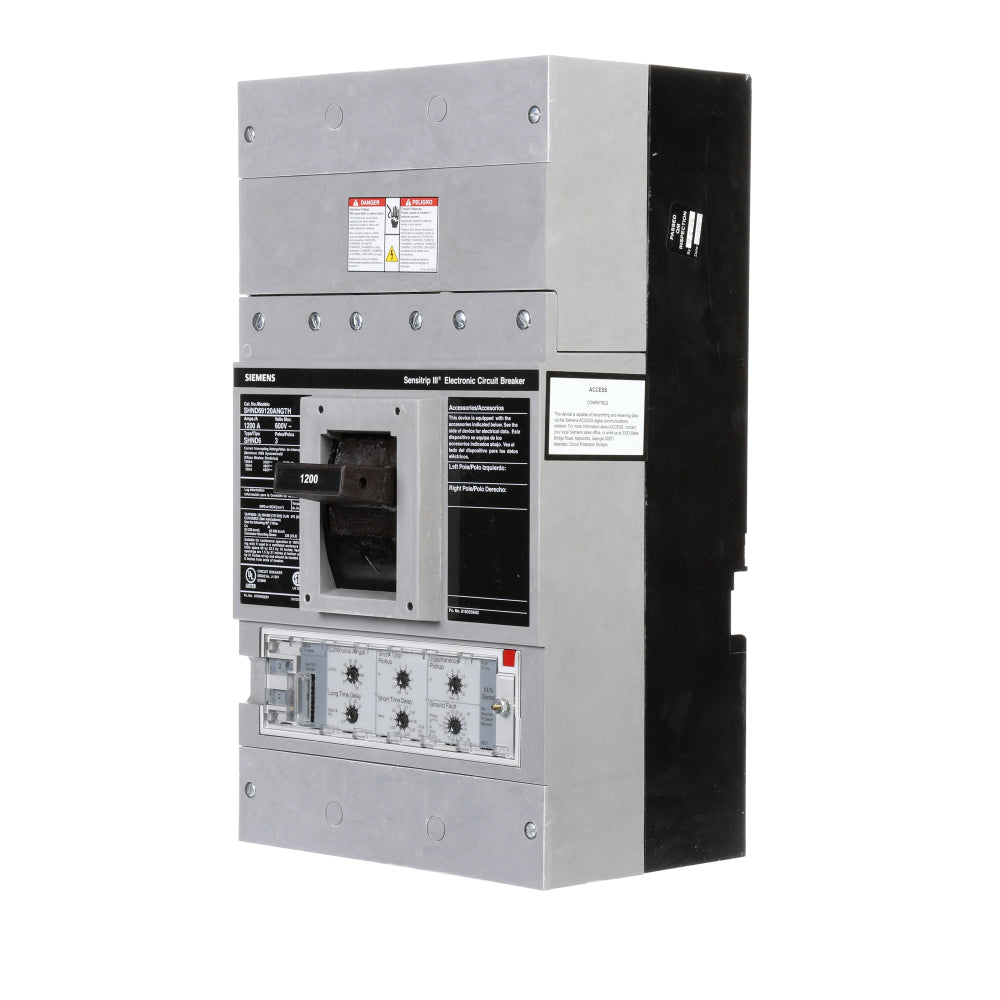

SHND69120ANGTH is a 3 pole, 1200 ampere, 600 volt AC electronic molded case circuit breaker from Siemens, designed for high performance and reliability in demanding electrical environments. This breaker features LSIG trip functions, including long-time, short-time, instantaneous, and ground fault protection, and is built with the Sentron Series ND frame for robust durability. The SHND69120ANGTH is suitable for bolt-on mounting and meets UL 489 and IEC 60947-2 standards for safety and performance. Its high interrupting rating ensures reliable operation in critical power distribution applications.
- 1200 Ampere rating
- 600 Volt AC
- 3 Pole configuration
- Electronic trip unit with LSIG functions
- Bolt-on mounting
- ND frame
- Interrupting rating: 65kAIC at 600V, 100kAIC at 480V
- UL 489 and IEC 60947-2 certified
- Long-time, short-time, instantaneous, and ground fault protection
- Designed for Sentron Series applications
- High breaking capacity
- Line and load side connections
Specifications
- Part Number: SHND69120ANGTH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SHND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : ND Frame
- Protection : Solid State
Product Data
- UPC : 783643253209
- GTIN : 00783643253209
- Country of Origin : Mexico
- Weight : 71
