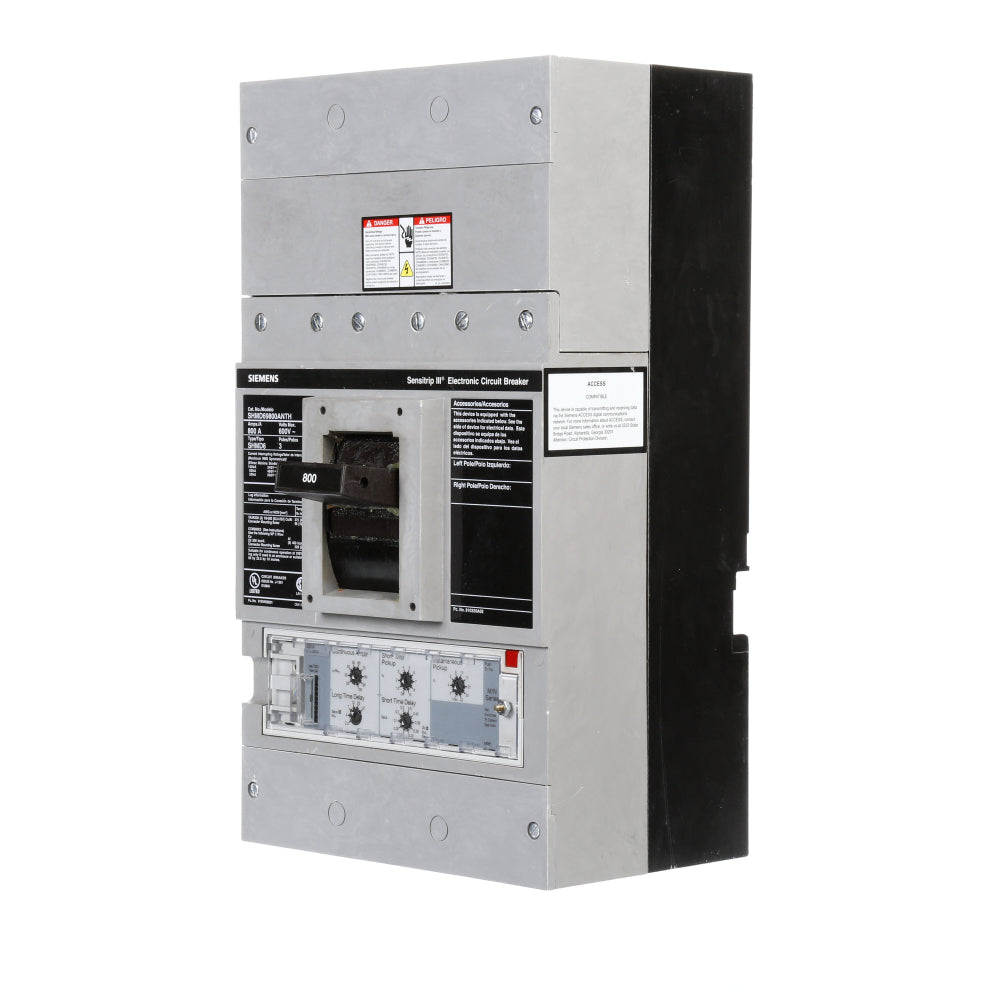

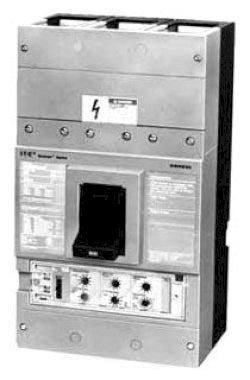

SHMD69800ANTH - Siemens 800A 600V 3-Pole Solid State Molded Case Circuit Breaker LSI Trip

SHMD69800ANTH

SHMD69800ANTH is a Siemens 3-pole solid state molded case circuit breaker rated for 800 amps and 600 volts with LSI trip functions.

This Siemens Sentron series breaker features a bolt-on mounting type, electronic trip unit with long time, short time, and instantaneous (LSI) protection. It has an interrupting rating of 50kAIC at 600V and 65kAIC at 480V, suitable for demanding industrial and commercial applications. Line and load side lug connections support wire gauges from 1/0 AWG to 500 KCM copper or aluminum. The breaker is UL and IEC certified and designed for a 40°C temperature rating.

Key Specifications
• Amperage: 800A
• Voltage: 600V
• Poles: 3
• Series: Sentron
• Mounting Type: Bolt-On
• Interrupting Rating: 50kAIC @ 600V, 65kAIC @ 480V
• Trip Unit: Electronic LSI (Long Time, Short Time, Instantaneous)
• Connection Type: Line and Load Side Lugs
• Wire Gauge Range: 1/0 AWG to 500 KCM CU/AL
• Certifications: UL, IEC
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SHMD69800ANTH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : SHMD
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : MD Frame
• Protection : Solid State

Product Data

• UPC : 078364325278
• GTIN : 00783643252783
• Country of Origin : Mexico
• Weight : 62
• Wire Size : 1/0 AWG to 500 KCM CU/AL
