Product Info
- Manufacturer:Hubbell
- Sub-Category:Cable Gland Connector
Description
SHC1042

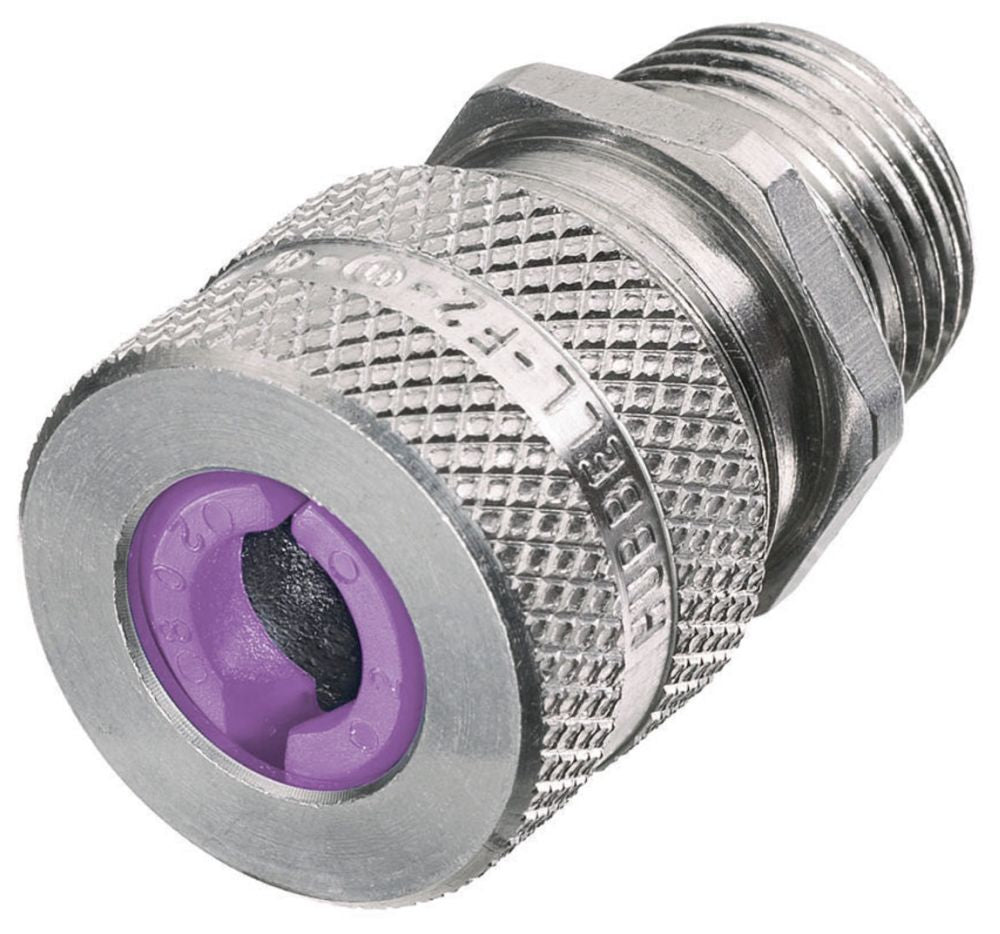

SHC1042 is a straight male cord connector from Hubbell, designed for reliable wire management in industrial and commercial applications. This aluminum connector features a knurled finish for easy hand tightening and is UL listed for safety and performance. The SHC1042 connector is constructed from machined aluminum for durability and lightweight handling. It is suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, and Class III Div. 1 & 2 as defined by the NEC. The connector is rated for operating temperatures from -30°F to +225°F (-34°C to +107°C) and is compatible with cord diameters from 0.75 to 0.88 inches (19.0 to 22.2 mm). It is designed for use in wet locations when paired with a listed nylon washer between the box and fitting.
- Manufacturer: Hubbell
- Part Number: SHC1042
- Material: Aluminum
- Form Size: F4
- NPT Hub Size: 1 Inch
- Cord Diameter Range: 0.75"-0.88" (19.0-22.2 mm)
- Connector Type: Straight Male
- Operating Temperature: -30°F to +225°F (-34°C to +107°C)
- UL Listed
- CSA Certified
- NEMA Rating: 4, 4X, 12, 13
- RoHS Compliant
Specifications
- Part Number: SHC1042
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Cable Gland Connector
Product Data
- UPC : 00783585200439
- GTIN : 00783585200415
- Country of Origin : China
- Dimensions : x 2-5/16" x
- Weight : 0.99 lb
- Certification : CSA LR27378, UL E54218(M)
