Product Info
- Manufacturer:Hubbell
- Sub-Category:Kellems cable grip / cord connector
Description
SHC1025

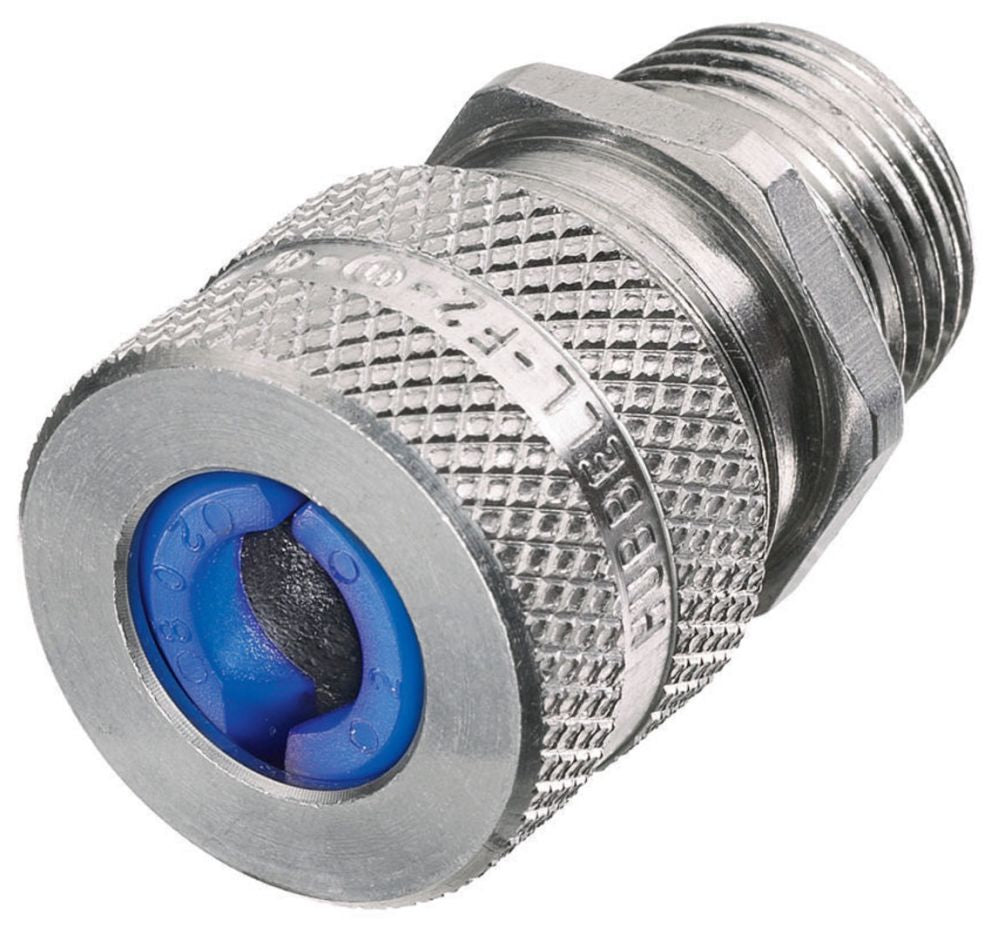

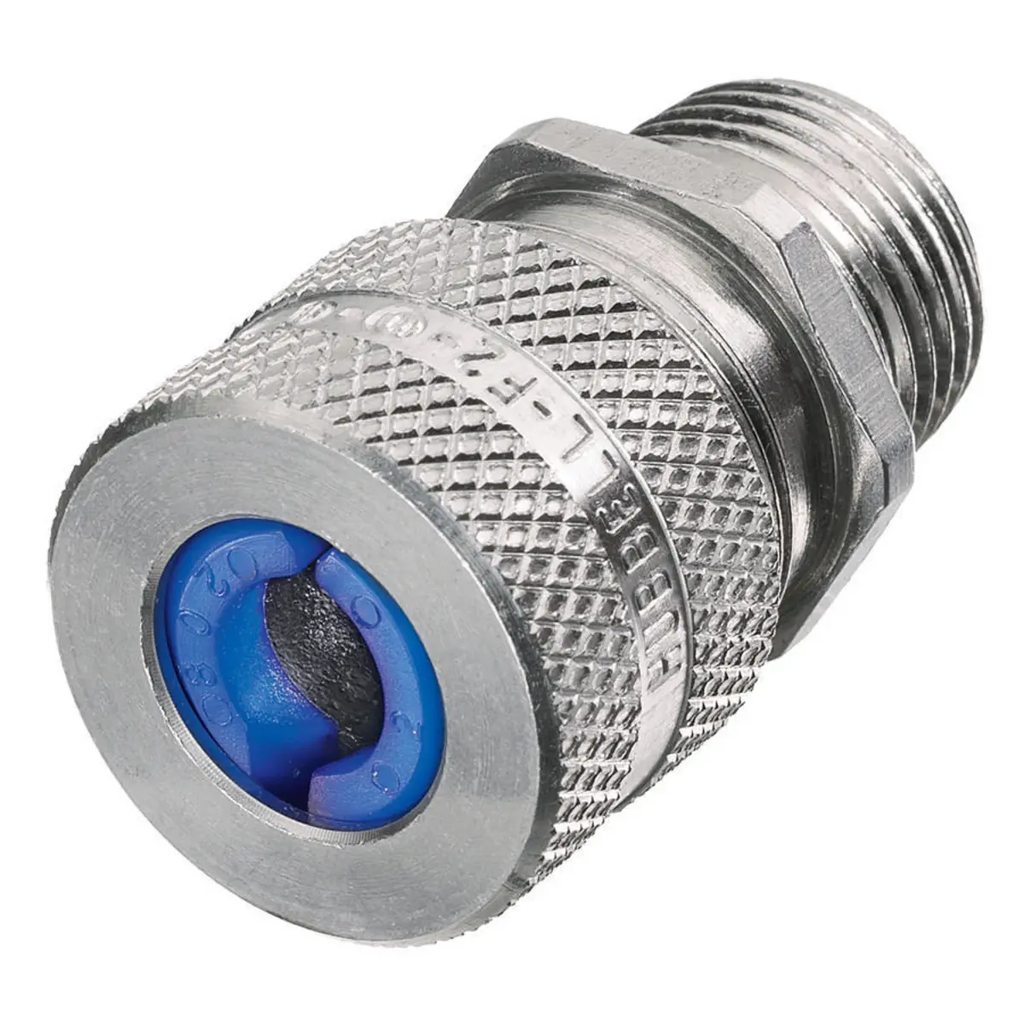

SHC1025 is a Hubbell Kellems Wire Management straight male cord connector designed for durable and reliable cord connections.This aluminum cord connector accommodates cords with diameters ranging from 0.38 to 0.50 inches (9.7 to 12.7 mm) and features a 1/2 inch NPT hub size. It has a machined aluminum construction with a knurled finish for easy handling and hand tightening. The connector is UL listed and rated for NEMA Type 4, 4X, 12, and 13 environments, with a temperature rating from -30°F to 225°F (-34°C to 107°C). It is suitable for use with jacketed UL listed cables and includes mounting hardware compatible with locknut or tapped openings.
- Part Number: SHC1025
- Material: Machined Aluminum
- Type: Straight Male Cord Connector
- Cord Diameter Range: 0.38 to 0.50 inches (9.7 to 12.7 mm)
- NPT Hub Size: 1/2 Inch
- Form Size: F3
- UL Listed
- NEMA Rating: Type 4, 4X, 12, 13
- Temperature Rating: -30°F to 225°F (-34°C to 107°C)
- Color: Blue
- Mounting: Locknut or Tapped Opening
Additional Information
Strain relief and support for cable management
Specifications
- Part Number: SHC1025
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Kellems cable grip / cord connector
Product Data
- UPC : 783585200255
- GTIN : 00783585200255
- Country of Origin : United States
- Dimensions : x 2-3/64" x
- Weight : 0.15 lb
- Certification : CSA LR27378, UL E54218(M)
