Product Info
- Manufacturer:Hubbell
- Sub-Category:Kellems cable grip / cord connector
Description
SHC1021

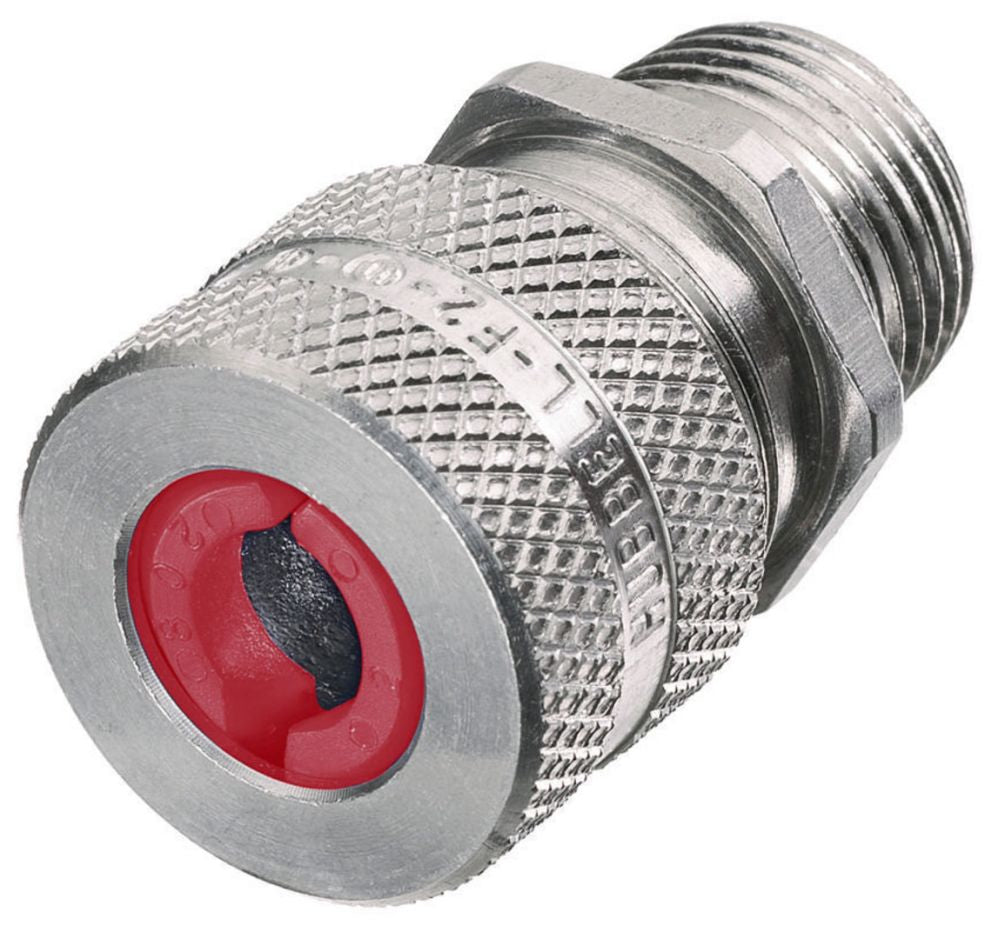

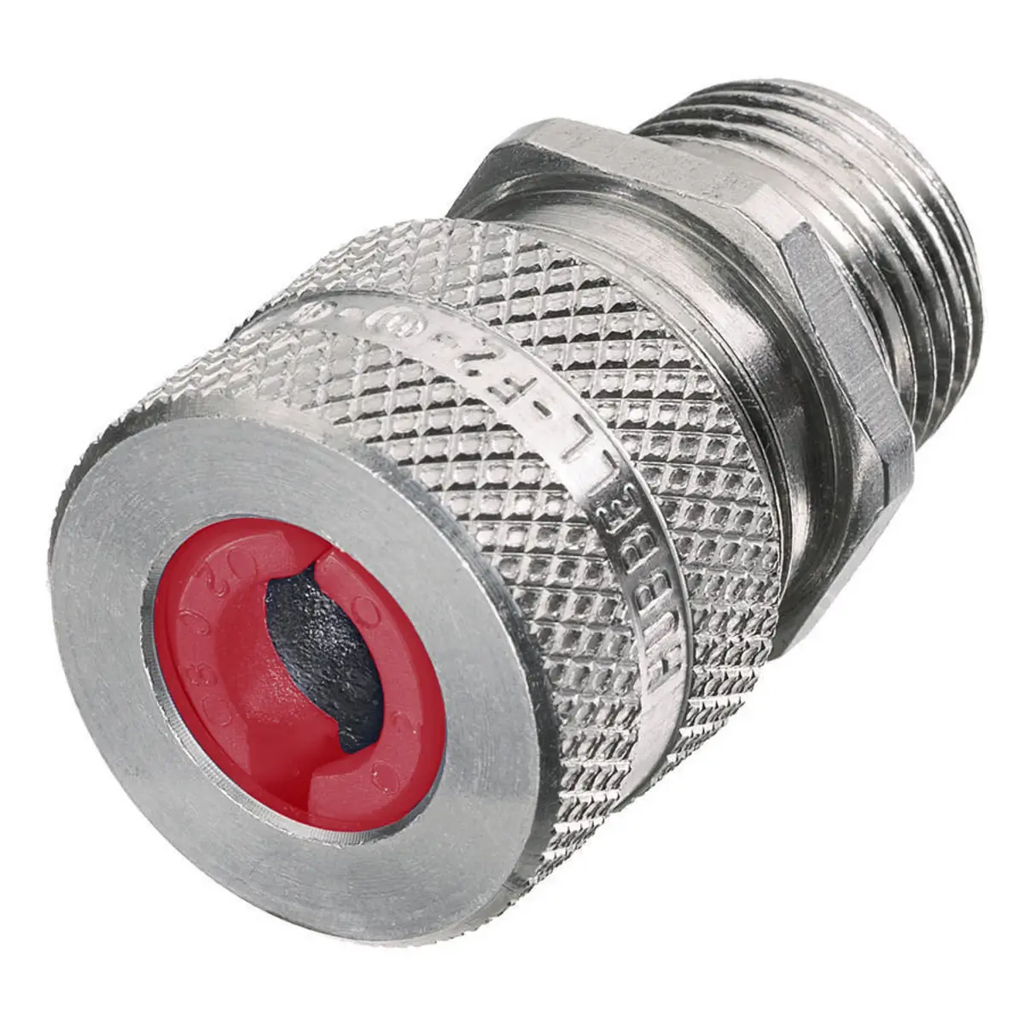

SHC1021 is a straight male cord connector designed for secure cable termination in industrial and commercial applications. This connector features a machined aluminum body and a red color code for easy identification. The SHC1021 connector is engineered for use with jacketed cables and provides effective strain relief with patented GOTCHA® ring technology. It is suitable for wet locations when used with a listed nylon washer and is rated for hazardous locations per NEC Class I Div. 2, Class II Div. 1 and 2, and Class III Div. 1 and 2. The connector offers a durable, lightweight design and is easy to handle due to its knurled finish.
- 1/2 in NPT straight male thread
- Aluminum material, machined finish
- Red color code
- Cable diameter range: 0.19 to 0.25 in (4.7 to 6.3 mm)
- Single conductor
- Temperature rating: -30 to 225 deg F (-34 to 107 deg C)
- UL 514B and CSA approved
- IP66 rating
- NEMA Type 4, 4X, 12, and 13
- RoHS compliant
- Suitable for hazardous locations
- Patented GOTCHA® ring technology
Additional Information
Strain relief and support for cable management
Specifications
- Part Number: SHC1021
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Kellems cable grip / cord connector
- Family : SHC
Product Data
- UPC : 783585200217
- GTIN : 783585200217
- Country of Origin : China
- Dimensions : 1.13 in Dia x 1.65625 in L
- Weight : 0.3 lb
- Certification : CSA LR27378, UL E54218(M)
