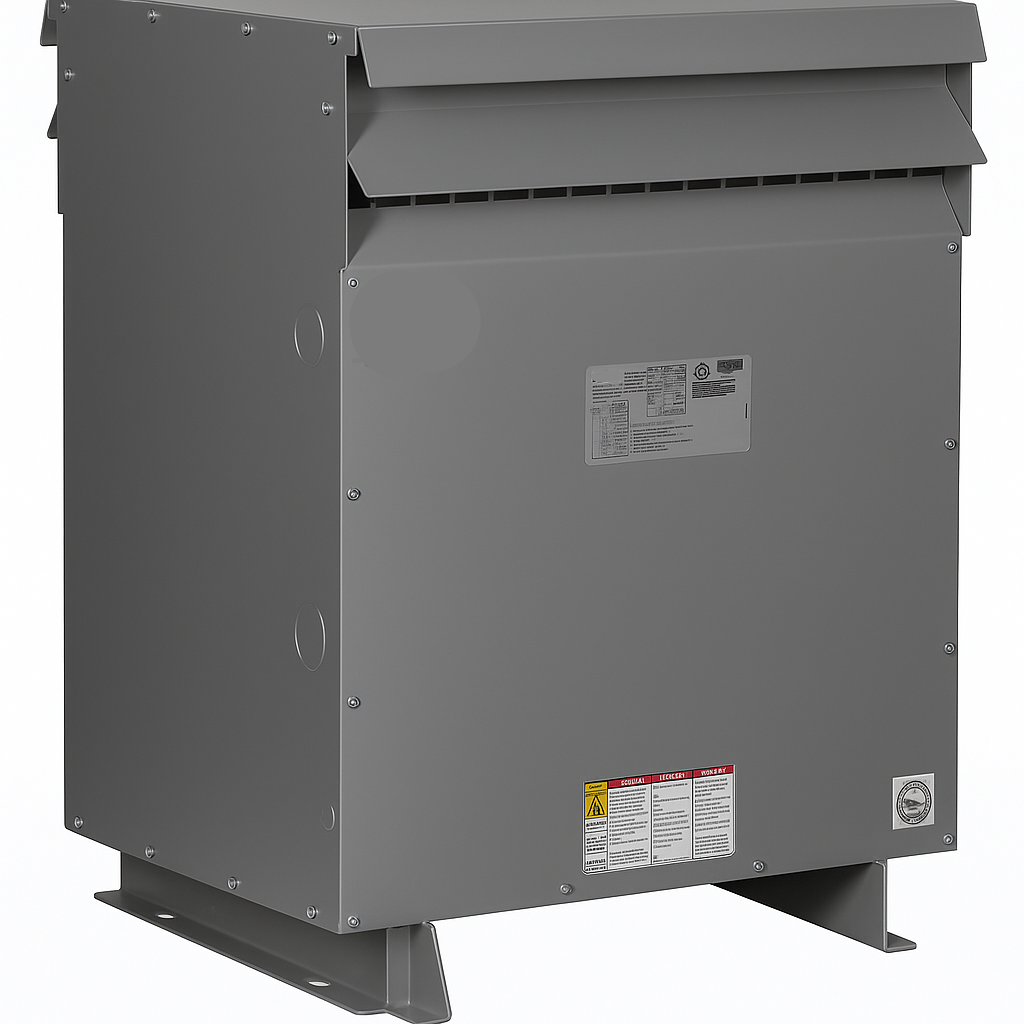

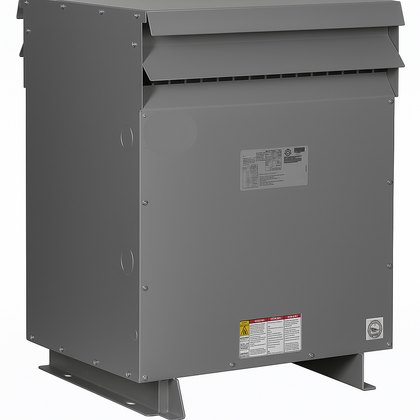

SH3U0750KB3K - Hammond Power Solutions Transformer General Purpose Distribution

SH3U0750KB3K

SH3U0750KB3K is a general purpose distribution transformer by Hammond Power Solutions designed for supplying appliance, lighting, heating, motorized machine, and power loads from electrical distribution systems.

This transformer is built with modern manufacturing techniques and meets North American efficiency standards. It is suitable for low voltage distribution applications rated for 600 volts and below. The product is part of Hammond Power Solutions' broad transformer portfolio, known for reliability and energy efficiency. It is designed for commercial and industrial use with options for mounting and enclosure types depending on application requirements.

• Manufacturer: Hammond Power Solutions
• Product Type: Transformer
• Category: General Purpose Distribution
• Voltage Rating: Rated for 600 volts and below
• Application: Appliance, lighting, heating, motorized machine, power loads
• Mounting: Various mounting options available
• Compliance: Meets North American efficiency standards
• Insulation Class: Typically Class H or 220°C insulation system (standard for HPS)
• Frequency: 60 Hz
• Enclosure: Options for enclosed or open style depending on model
• Energy Efficiency: Compliant with DOE 2016 and NRCan 2019 standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SH3U0750KB3K
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 3
• Enclosure Grade : Standard
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 480Y
• Primary Connection : Wye
• Secondary Voltage : 208Z/120
• Secondary Connection : Zig-Zag-N
• Material : Copper
• Temperature Rise : 150°C
• Insulation Class : 220°C
• EKVA : 897.7
• Efficiency Regulation : DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
• Sound Level : 67 dBA (NEMA ST-20)
• Impedance (Std) : 4% - 7.5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure Dimensions : 72in/1829mm(H), 54in/1372mm(W), 44in/1118mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 750
• Vector Configuration : Sec -30°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=0
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary FCAN (Std) : 2x2.5%
• Primary Termination (Std) : Mounting Pads

Product Data

• UPC : 803423135546
• Weight : 5.19
• Certification : CSA, UL
