Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGPA36AT0400

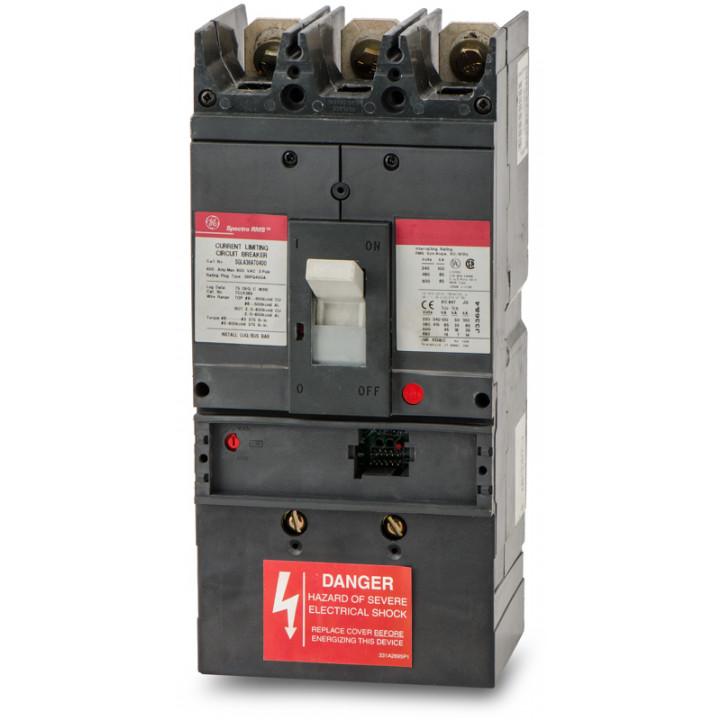

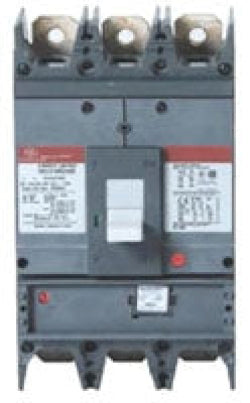

SGPA36AT0400 is a General Electric 3 Pole molded case circuit breaker rated for 400 Amps and 600 Volts with bolt-on mounting.This SGPA series circuit breaker features solid state protection with LSI (long-time, short-time, and instantaneous) trip functions. It has a 100kA interrupting rating at 480V and is designed for 3-phase electrical systems. The breaker includes bolt-on connections and complies with industry standards for reliable circuit protection.
- Manufacturer: General Electric
- Series/Frame: SGPA
- Amperage: 400A
- Voltage Rating: 600V
- Poles: 3
- Interrupting Rating: 100kA @ 480V
- Mounting Type: Bolt-On
- Trip Unit: LSI (Long-Time, Short-Time, Instantaneous)
- Phase: 3
- Connection Type: Bolt-On
- Protection Type: Solid State
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: SGPA36AT0400
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGPA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 783164211665
- GTIN : 00783164211665
- Weight : 20
