Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLL3606L4XX

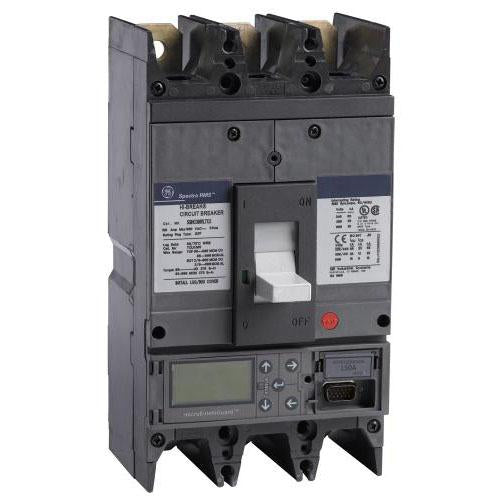

SGLL3606L4XX is a General Electric Spectra Series molded case circuit breaker designed for high-capacity power distribution in industrial and commercial applications. This 3-pole, bolt-on breaker delivers reliable protection with a 600-ampere continuous rating at 600 volts AC, featuring a 65 kAIC interrupting capacity at 480 volts for enhanced system safety and performance. Key Specifications
- Manufacturer: General Electric
- Part Number: SGLL3606L4XX
- Frame Type: SGLL
- Amperage: 600 A
- Voltage: 600 Vac
- Poles: 3
- Mounting: Bolt-On
- Interrupting Rating: 65 kAIC at 480V
- 100% Rated
- Suitable for Reverse Feed
- UL Listed
Specifications
- Part Number: SGLL3606L4XX
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLL
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- Weight : 20
