Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLC3606L5XX

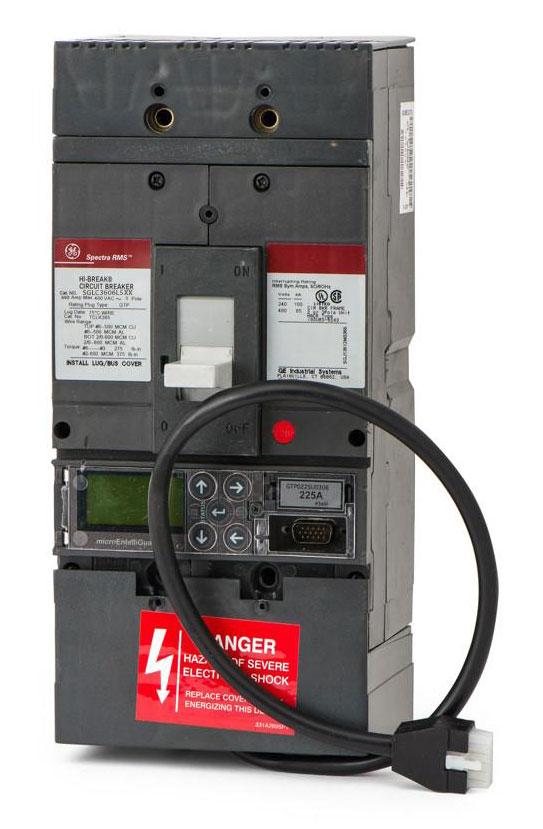

SGLC3606L5XX is a General Electric Spectra Series 3 pole, 600A, 600V molded case circuit breaker with a 65kAIC interrupting rating at 480V, designed for high-capacity power distribution applications. This solid state breaker features LSIA trip functions, interchangeable RMS trip unit, and is suitable for reverse fed installations. It is UL listed and 100% rated for reliable performance in commercial and industrial environments.
- Manufacturer: General Electric
- Series/Frame: Spectra Series SGLC
- Amperage: 600A
- System Voltage: 600V AC
- Poles: 3
- Interrupting Rating: 65kAIC @ 480V
- Mounting Type: Bolt-On
- Frame Type: SGLC
- Series: Spectra Series
- Trip Unit: Interchangeable RMS, LSIA
- Certifications: UL Listed
- Suitable for Reverse Fed Applications
Specifications
- Part Number: SGLC3606L5XX
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLC
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time, Short Time and Instantaneous, LSIA Trip
- Protection : Solid State
Product Data
- UPC : 796474957055
- Weight : 20
- Certification : Ul listed
