Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLC3604L5XX

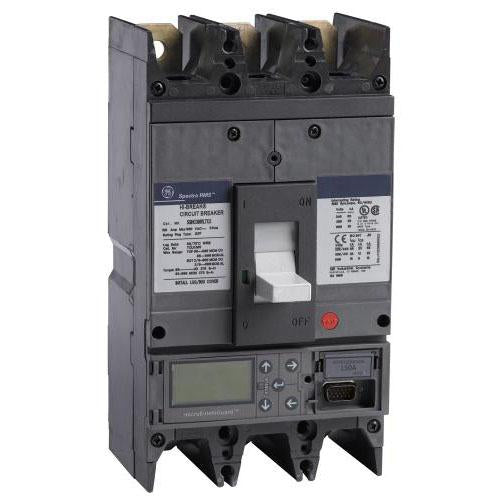

SGLC3604L5XX is a 3 pole, 400 amp, 600 volt bolt-on molded case circuit breaker from General Electric's Spectra Series, designed for high interrupting capacity and reliable protection in commercial and industrial applications.This solid state circuit breaker features a microEntelliGuard trip unit with LSIA (Long-Time, Short-Time, Instantaneous, and Ground Fault Alarm) trip functions, suitable for reverse fed applications and offering advanced metering and communication capabilities. The SGLC3604L5XX is UL listed and built for interchangeability and durability in demanding environments.
- Part Number: SGLC3604L5XX
- Manufacturer: General Electric
- Series/Frame: Spectra Series, SGLC
- Amperage: 400A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA @ 480V
- Phase: 3 Phase
- Interrupting Capacity: High
- Trip Unit: microEntelliGuard LSIA
- Certifications: UL Listed
- Features: Suitable for reverse fed applications, solid state, interchangeable RMS trip unit, 100% rated
Specifications
- Part Number: SGLC3604L5XX
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLC
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time, Short Time and Instantaneous, LSIA Trip
- Protection : Solid State
Product Data
- UPC : 796474956980
- Weight : 20
- Certification : Ul listed
