Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLA36AT0600

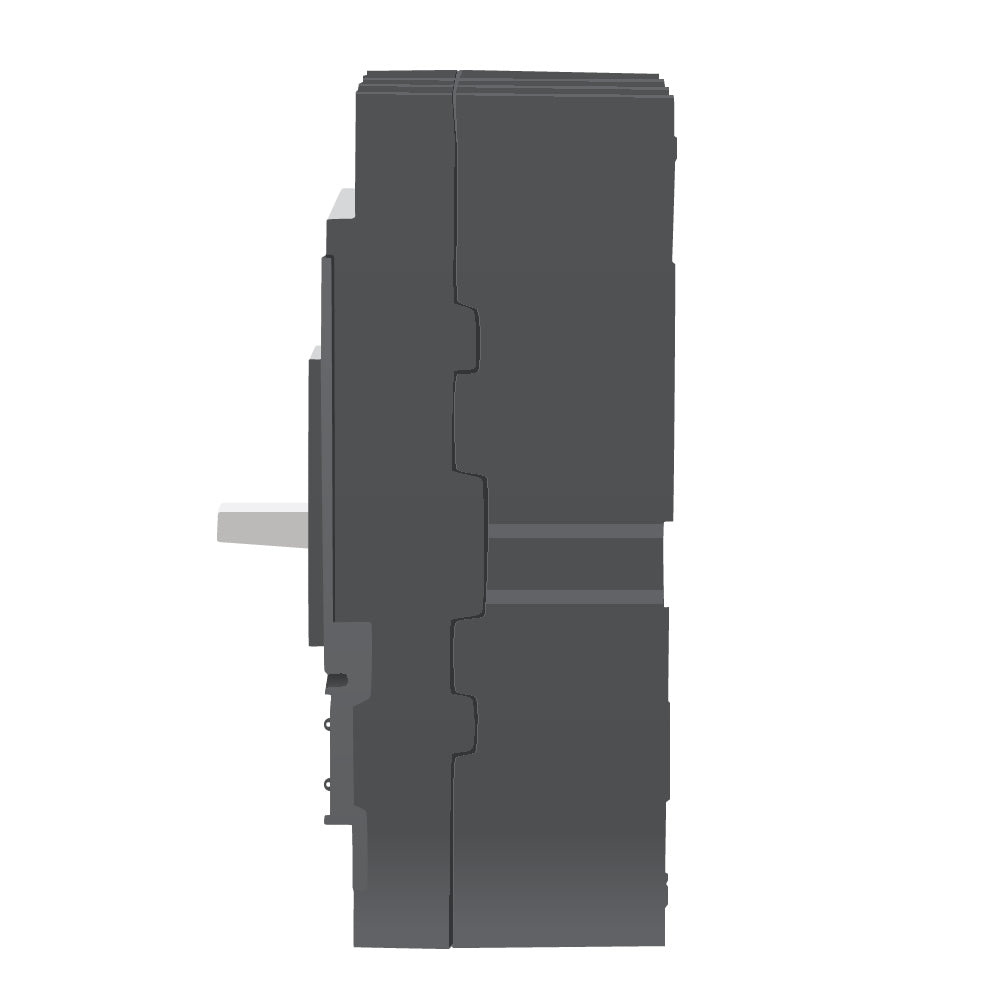

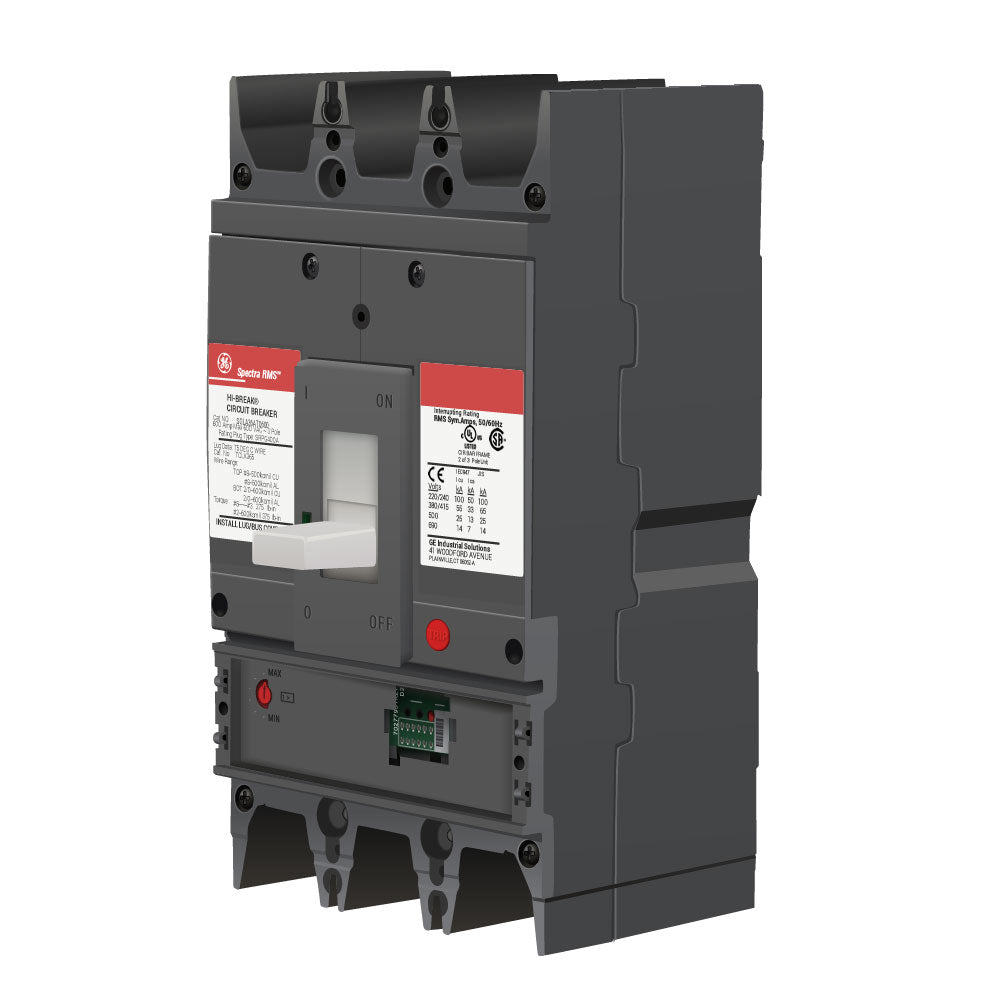

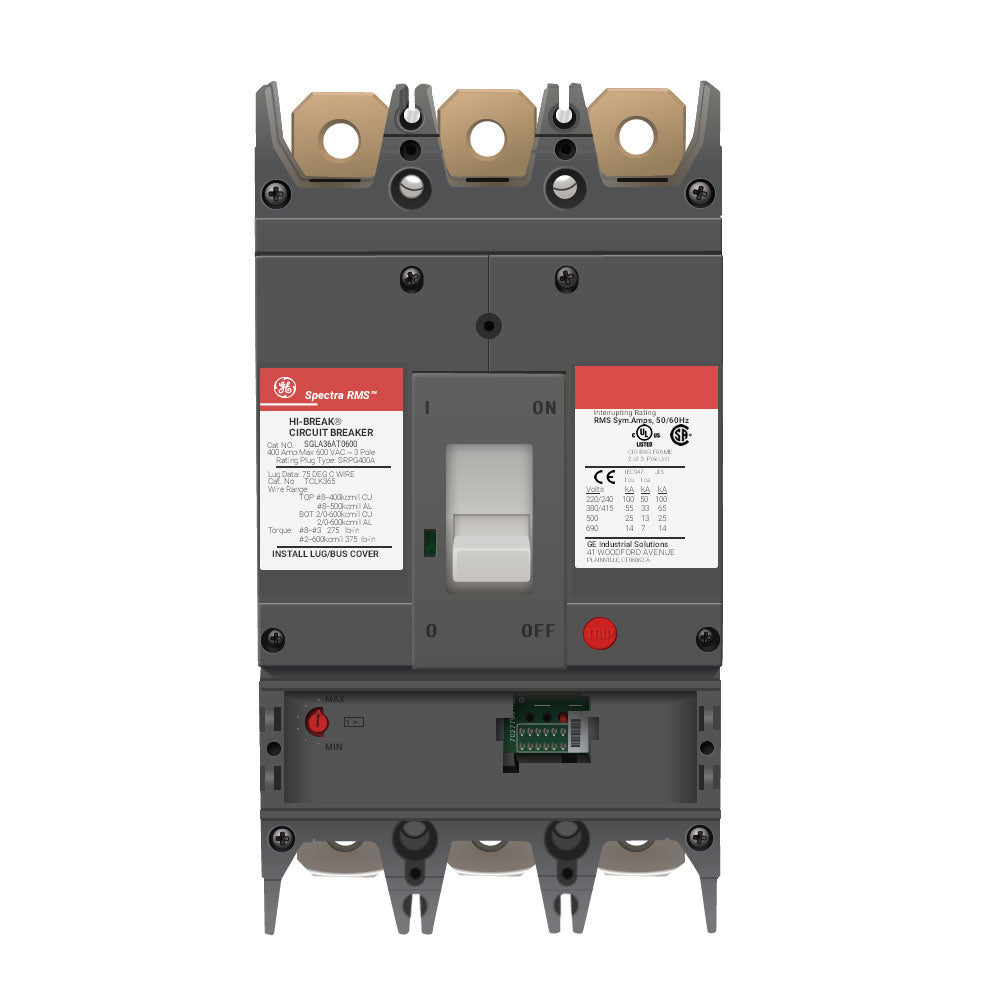

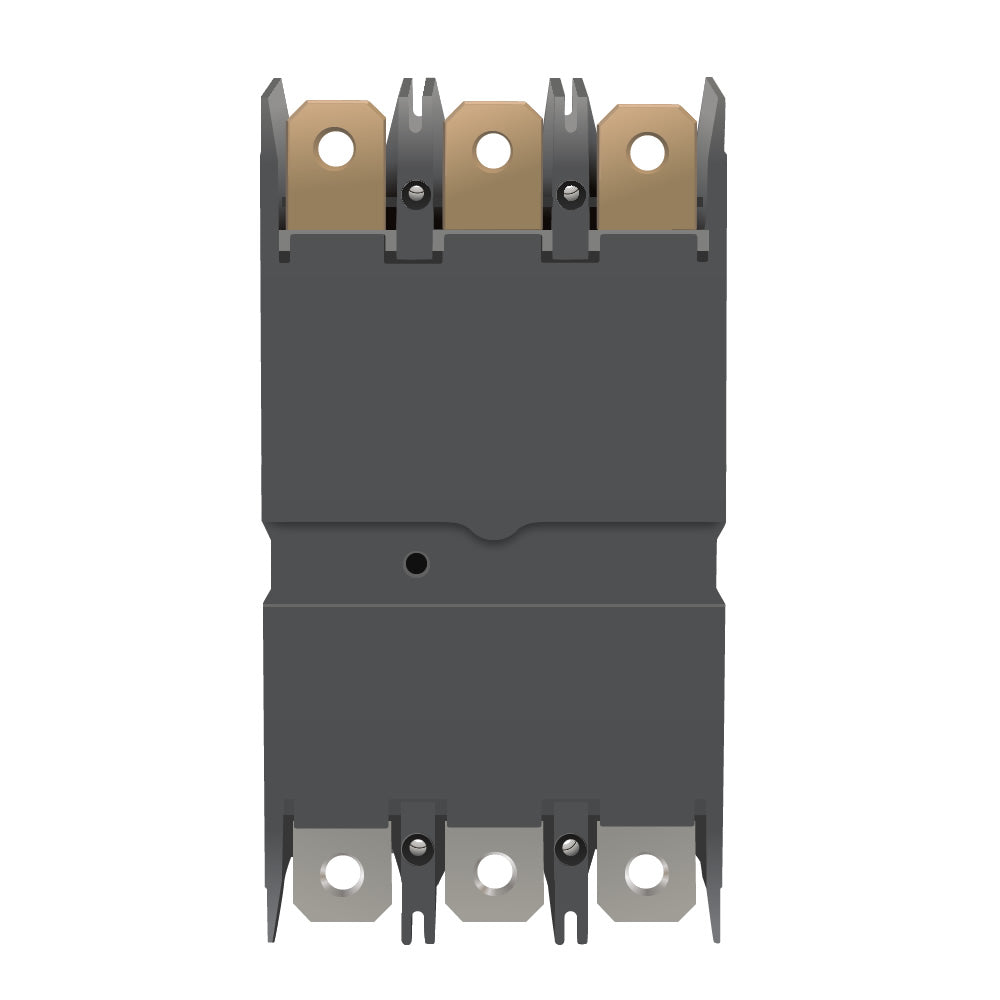

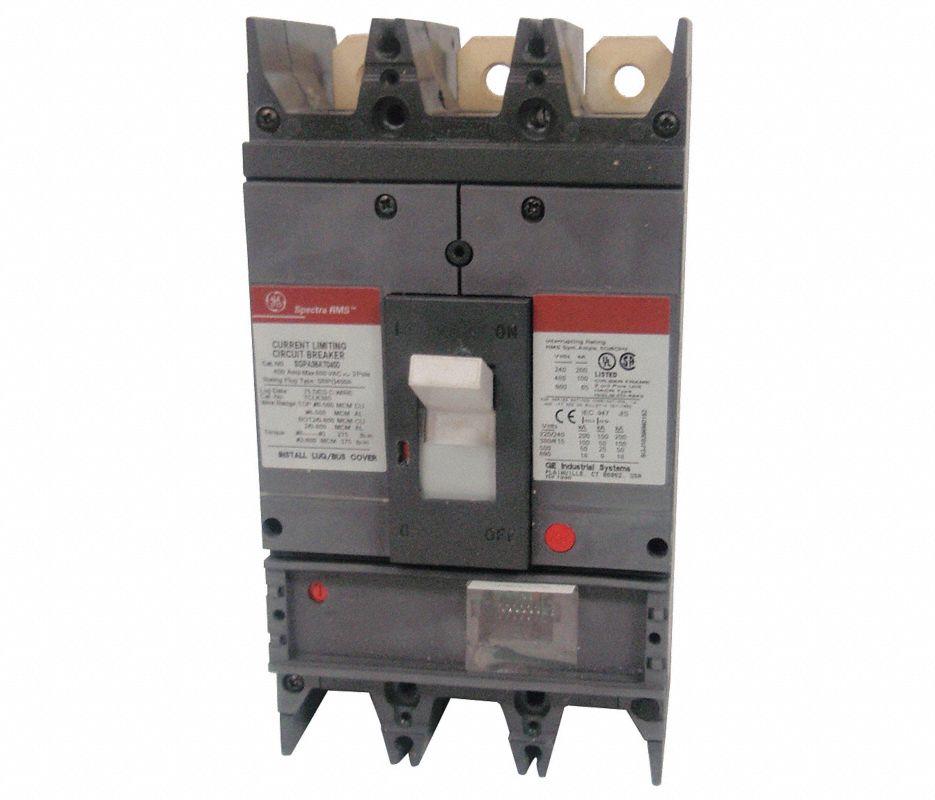

SGLA36AT0600 is a General Electric 3-pole molded case circuit breaker rated for 600 amps and 600 volts AC. This SGLA frame breaker features a bolt-on mounting type and a solid state electronic RMS sensing trip unit with adjustable long time, short time, and instantaneous trip functions. It offers a high interrupting capacity of 65kA at 480V and is suitable for reverse feed applications. The breaker is current limiting and includes interchangeable trip units for flexible protection settings. Lugs are not included.
- Key Specifications
- Manufacturer: General Electric
- Part Number: SGLA36AT0600
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Frame Type: SGLA
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Trip Unit: Solid State RMS Electronic, Interchangeable
- Trip Functions: Long Time, Short Time, Instantaneous
- Current Limiting: Yes
- Suitable for Reverse Feed: Yes
- Certifications: HACR
- Part Number: SGLA36AT0600
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time, Short Time and Instantaneous Trip
- Protection : Solid State
- UPC : 783164211689
- GTIN : 00783164211689
- Dimensions : 5.5" X 3.81" X 10.09"
- Weight : 20 lb
