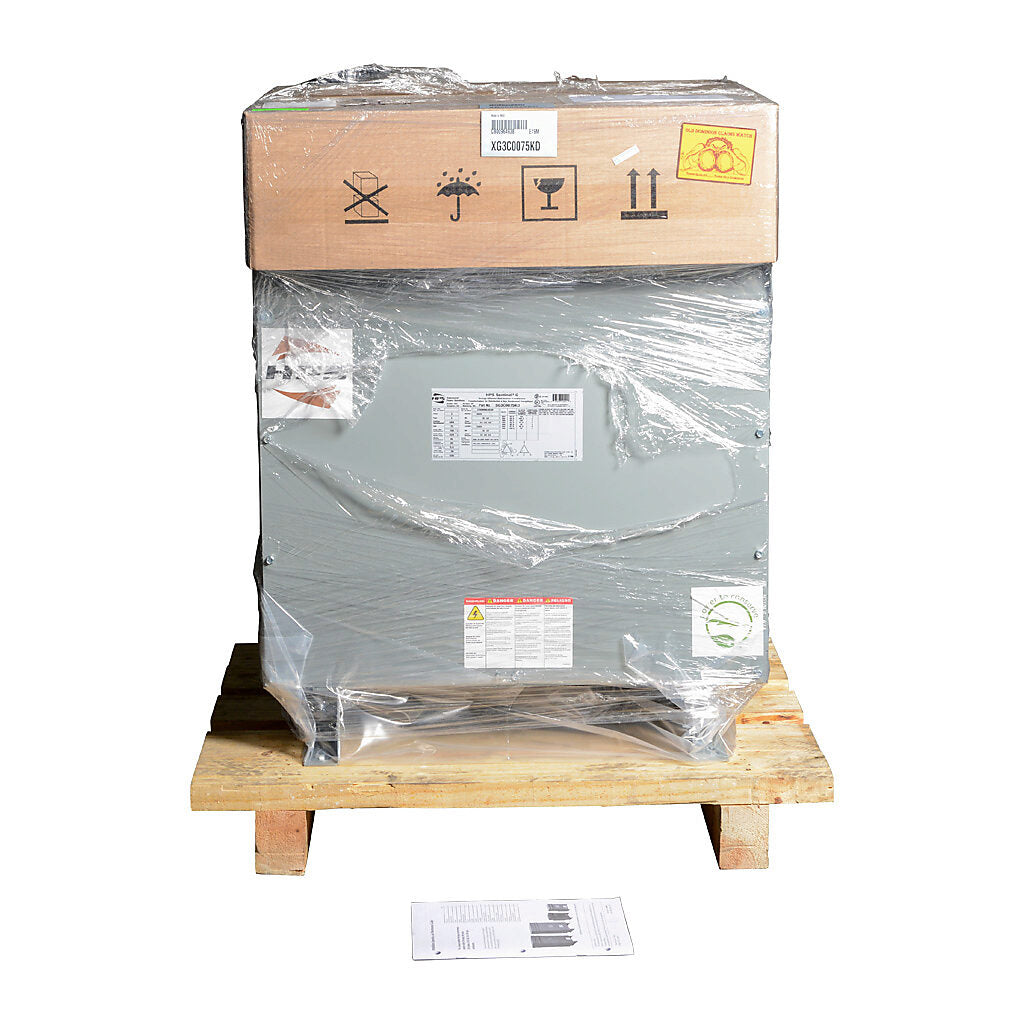

SG3C0075KD - Hammond Power Solutions Sentinel G 3-Phase 75kVA 480V Delta/240V Delta 120V Center Tap Aluminum 60Hz NEMA 3R

SG3C0075KD

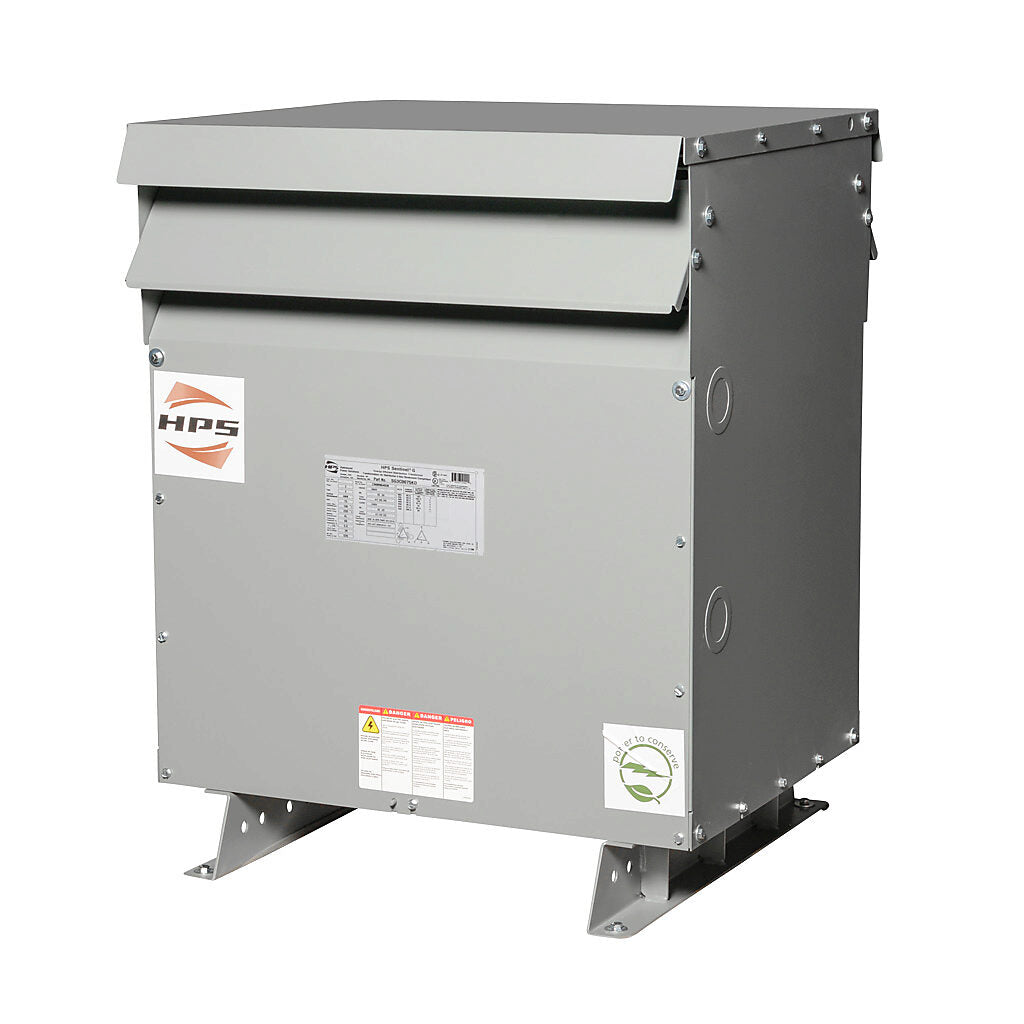

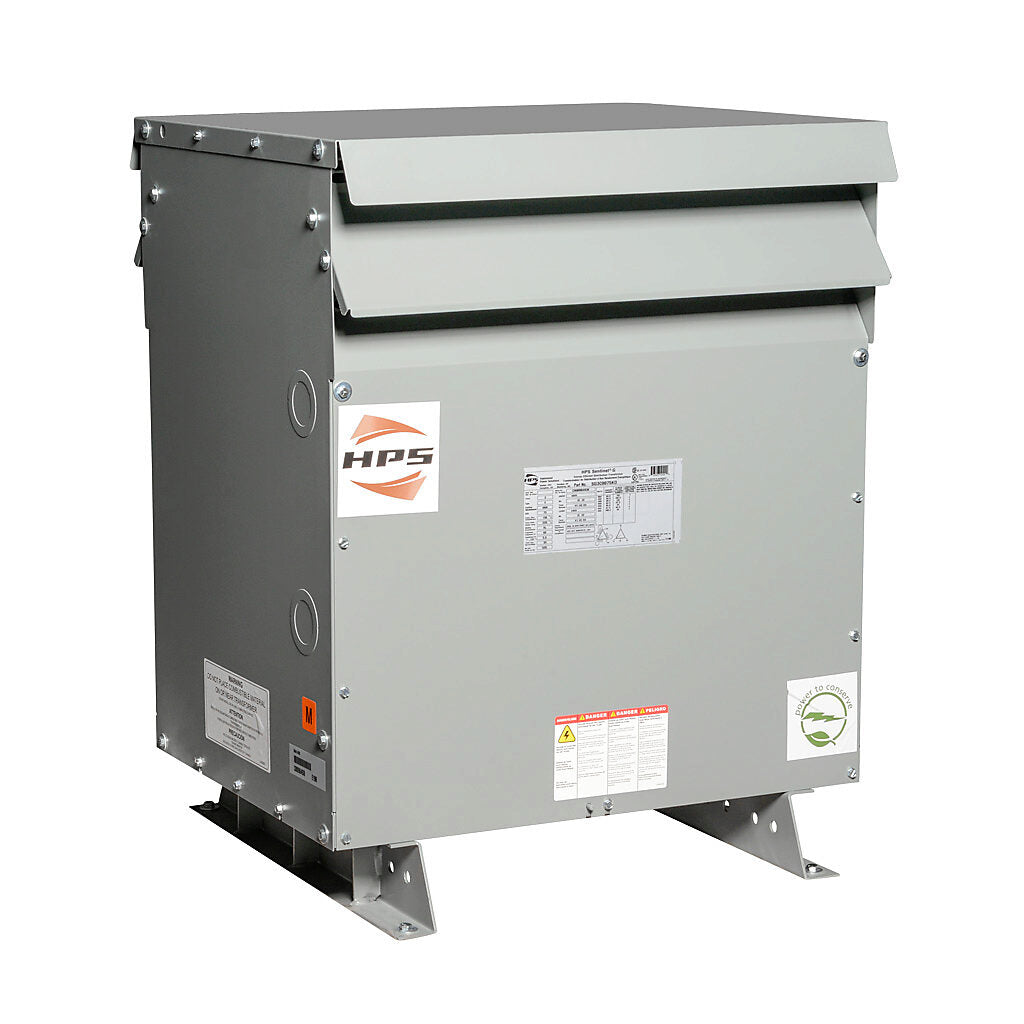

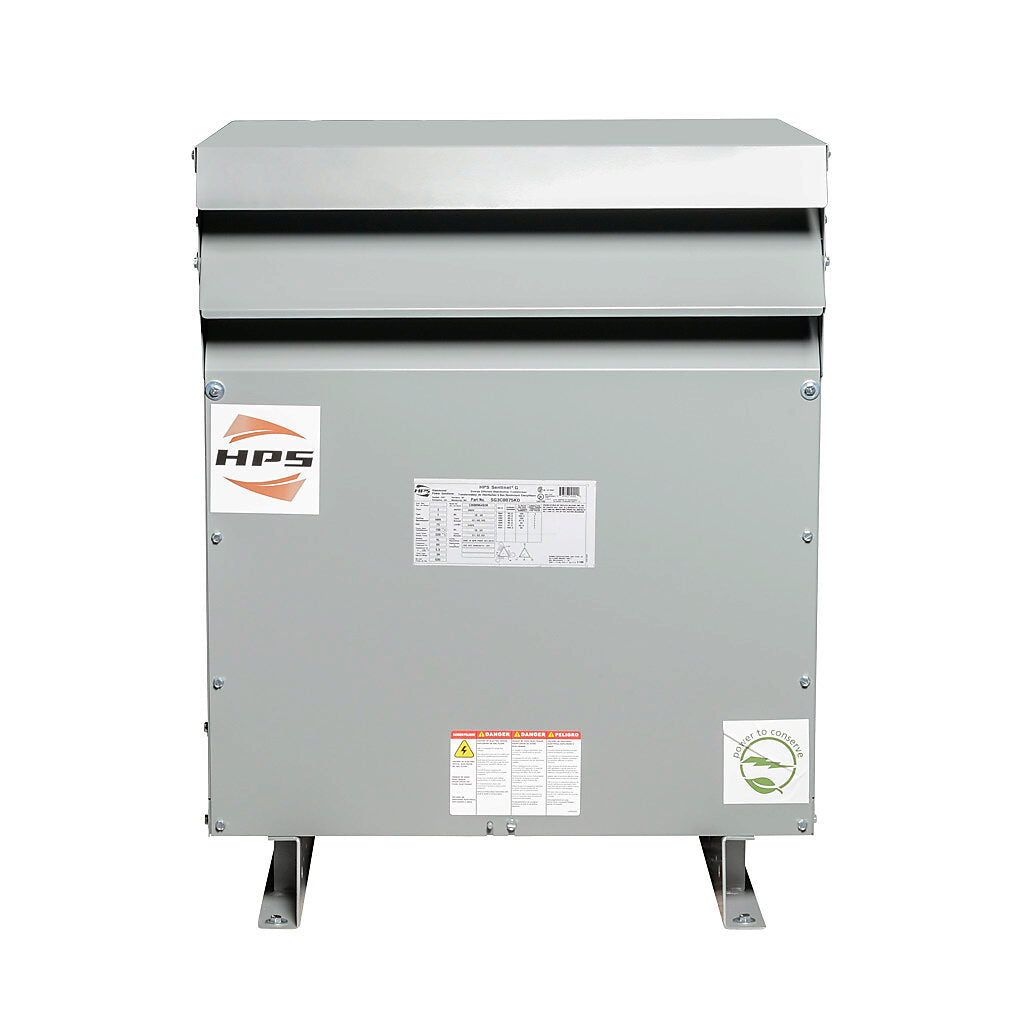

SG3C0075KD is a Hammond Power Solutions Sentinel G Series 3-phase energy-efficient distribution transformer with a 75kVA rating, designed for general duty applications. This open core, ventilated transformer features a NEMA 3R enclosure for indoor or outdoor use, with floor, wall, or ceiling mounting options. It is constructed with aluminum windings and meets the latest DOE 2016, NRCan 2019, and NMX 2021 efficiency standards. The unit is UL and CSA listed, suitable for 600V class systems, and provides a 480V delta primary and 240V delta/120V center tap secondary configuration.

• Manufacturer: Hammond Power Solutions
• Series: Sentinel G (Gen. 3)
• Phase: 3-Phase
• Power Rating: 75 kVA
• Primary Voltage: 480V Delta
• Secondary Voltage: 240V Delta/120V Center Tap
• Mounting: Floor, Wall, Ceiling
• Enclosure: NEMA 3R (Type 3R)
• Frequency: 60 Hz
• Insulation Class: Class R
• Approvals: UL, CSA
• Efficiency: DOE 2016, NRCan 2019, NMX 2021
• Weight: 510 lbs
• Construction: Ventilated, Open Core
• Winding Material: Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SG3C0075KD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Distribution Equipment
• Item Subcategory : Transformers
• Section : Dry Type
• Family : Sentinel G
• Phase : 3
• Enclosure Grade : Standard
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 480D
• Primary Connection : Delta
• Primary FCAN (NPL) : 2x2.5%
• Primary FCBN (NPL) : 4x2.5%
• Secondary Voltage : 240/120
• Material : Aluminum
• Temperature Rise : 150°C
• Insulation Class : 220°C
• EKVA : 75
• Efficiency Regulation : DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 50 dBA (NEMA ST-20)
• Impedance (Std) : 2.5% - 6.5%
• Secondary Termination (NPL) : Mechanical Lugs
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : DH3-N3R
• Enclosure Dimensions : 36in/915mm(H), 28.25in/718mm(W), 27in/686mm(D)

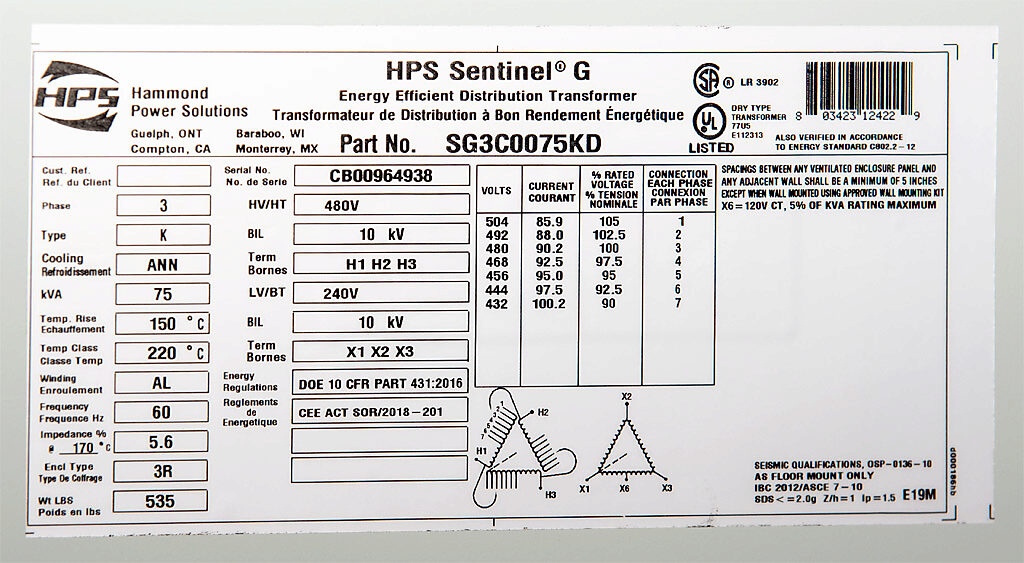

• Nameplate : Standard
• Standard kVA : 75
• Vector Configuration : Dd0 (0°)
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423124229
• Dimensions : 27 in L x 28.3 in W x 36 in H 36 in H x 28.3 in W x 27 in D
• Weight : 565
• Certification : CSA, UL
