Hammond Power Solutions SG3A0750BB0C - 3-Phase Transformer 750kVA (208D-208Y/120V)

SG3A0750BB0C

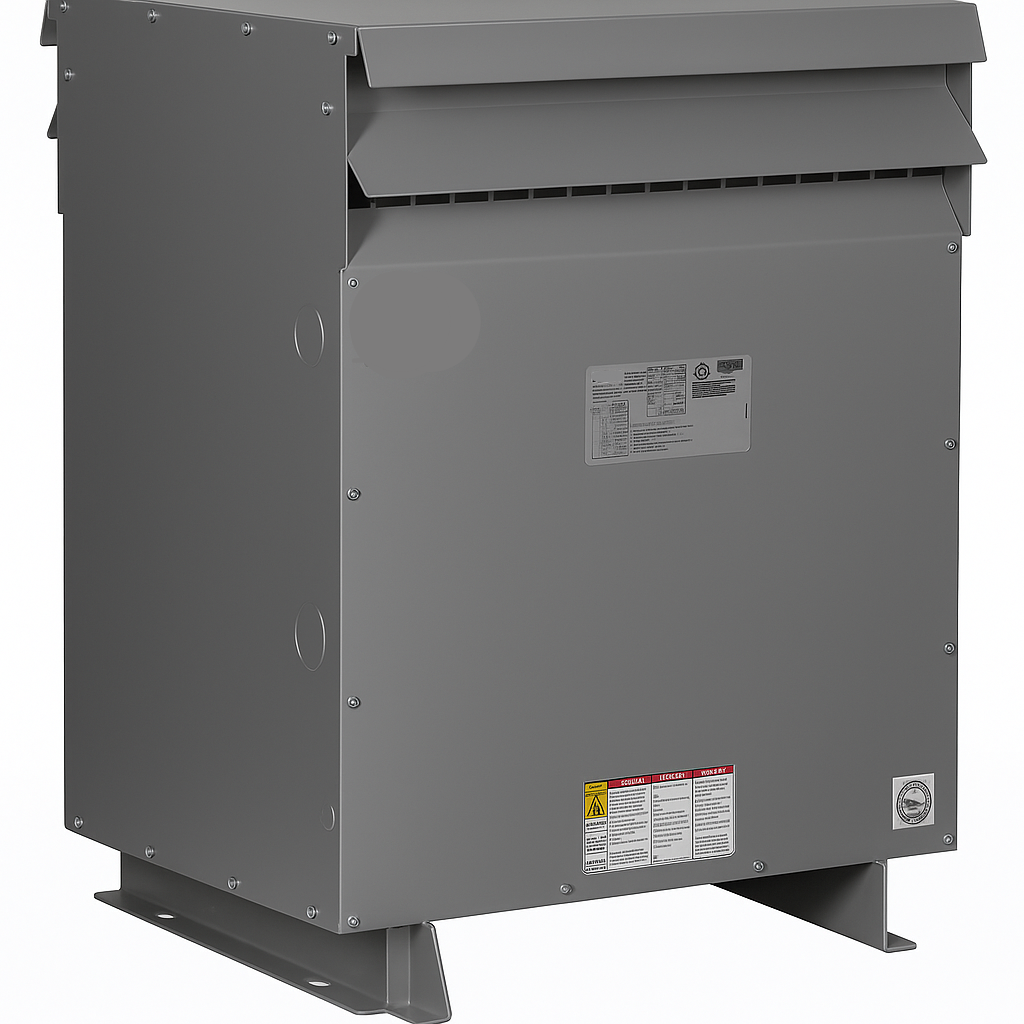

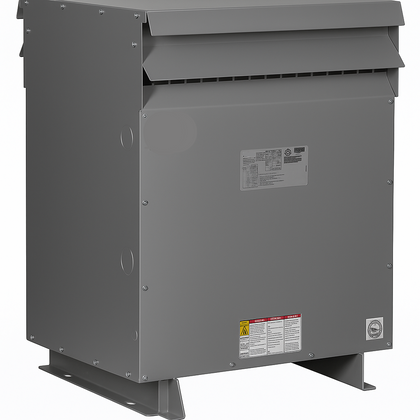

Hammond Power Solutions SG3A0750BB0C is a three-phase general duty transformer designed for industrial power distribution applications. This 750 kVA unit operates at 208V delta primary to 208Y/120V secondary configuration with 60Hz frequency, featuring a 150°C temperature rise and 220°C insulation class. The transformer is housed in a Type 3R/IP24 enclosure with ANSI 61 grey finish, measuring 64"H × 49"W × 39"D, and produces 64 dBA maximum sound levels. It complies with DOE 2016, NRCAN 2019, and NMX 2021 efficiency regulations while meeting IBC 2018 seismic standards (Sds=2.0, z/h=0, lp=1.5). Typical applications include industrial facilities, commercial buildings, and utility power distribution systems requiring reliable three-phase power conversion. Key Features & Specifications

• Type: Three-Phase General Duty Transformer
• Voltage: 208V Delta Primary / 208Y/120V Secondary
• Current: 750 kVA Capacity
• Frequency: 60Hz
• Temperature Rise: 150°C
• Insulation Class: 220°C
• Impedance: 4% - 7.5%
• Enclosure: Type 3R / IP24, ANSI 61 Grey
• Dimensions: 64"H × 49"W × 39"D
• Sound Level: 64 dBA (NEMA ST-20)
• Efficiency Standards: DOE 2016, NRCAN 2019, NMX 2021
• Seismic Compliance: IBC 2018 (Sds=2.0)
• Vector Configuration: Dyn1 (-30°)

Specifications

• Part Number: SG3A0750BB0C
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 3
• Enclosure Grade : Standard
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 208D
• Primary Connection : Delta
• Secondary Voltage : 208Y/120
• Secondary Connection : Wye-N
• Temperature Rise : 150°C
• Insulation Class : 220°C
• EKVA : 750
• Efficiency Regulation : DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
• Sound Level : 64 dBA (NEMA ST-20)
• Impedance (Std) : 4% - 7.5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure Dimensions : 64in/1626mm(H), 49in/1245mm(W), 39in/991mm(D)
• Nameplate : Standard
• Standard kVA : 750
• Vector Configuration : Dyn1 (-30°)
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=0
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary FCAN (Std) : None
• Primary Termination (Std) : Mounting Pads

Product Data

• UPC : 803423127343
• Weight : 1600
• Certification : CSA, UL
