Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
SFE-30

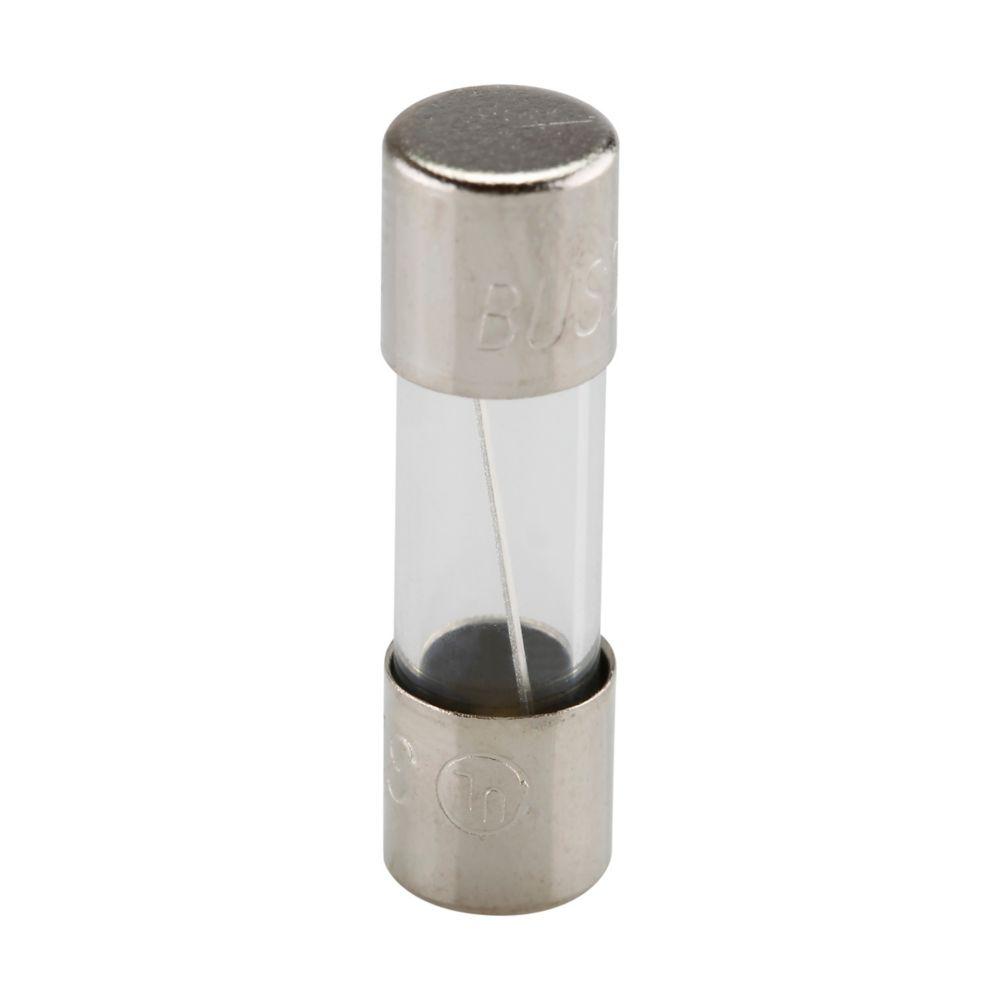

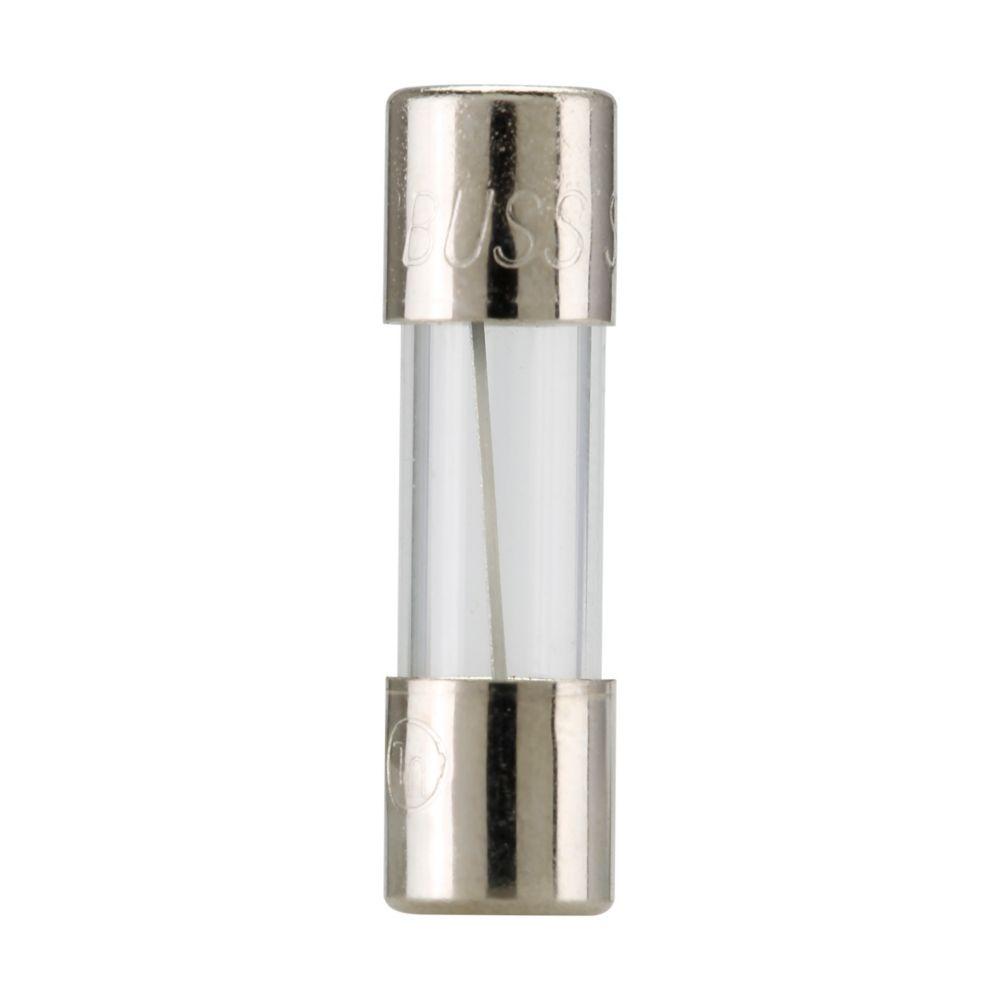

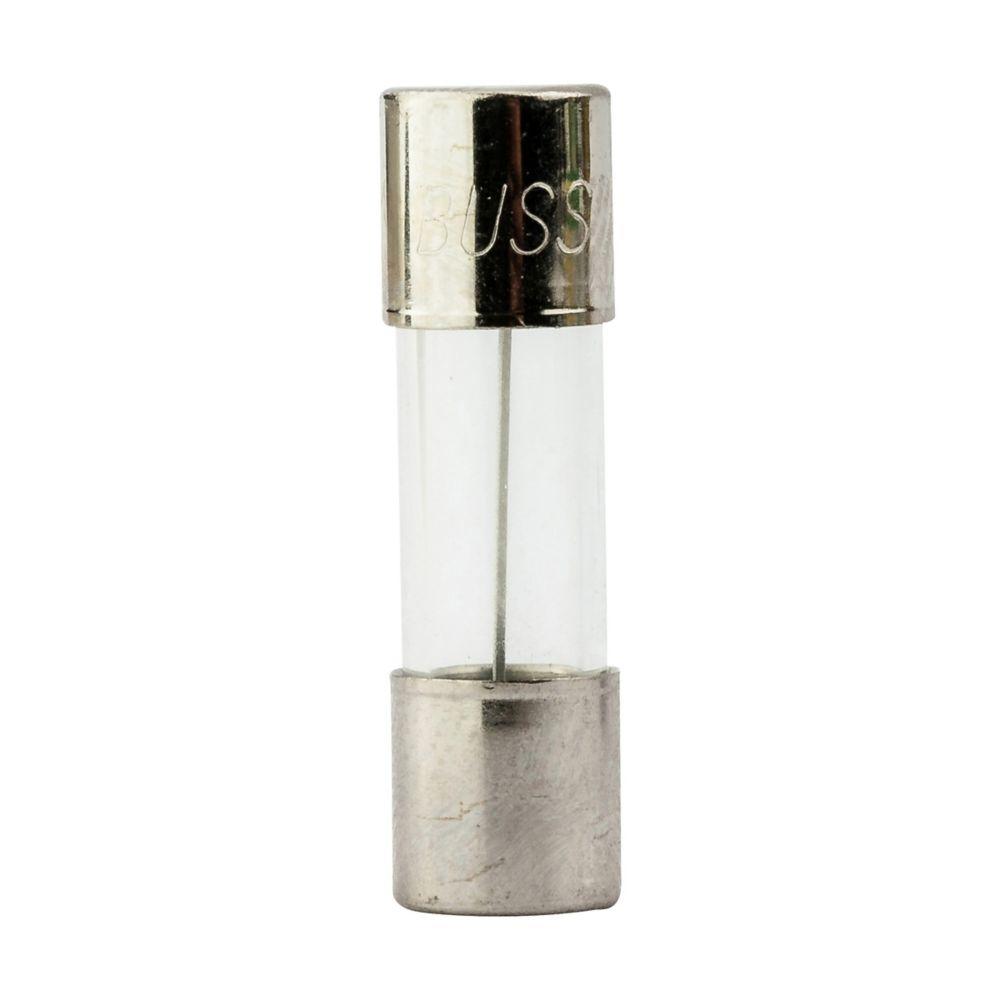

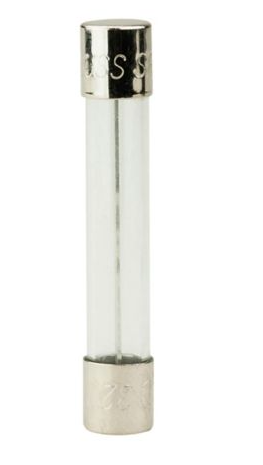

SFE-30 is an Eaton Bussmann series fast-acting automotive glass fuse rated for 30 amperes at 32 volts or less. This fuse is designed for automotive circuits and features visual indicating glass tubing to help identify blown fuses at a glance. The SFE-30 is manufactured to SAE specifications and is compatible with in-line fuseholders and 1/4 inch clips for secure mounting in automotive electrical systems. Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 32 V AC/DC
- Fuse Type: Fast-Acting (Fast Blow)
- Fuse Size/Group: 9AG
- Material: Visual Indicating Glass Tubing
- Length: 1-7/16 inches (36.5 mm)
- Connection Type: Ferrule End x Ferrule End
- Mounting: In-line Holders and 1/4 inch Clips
- Standards: SAE Specifications
- Carton Quantity: 100 Fuses
Specifications
- Part Number: SFE-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 32
- Amperage : 30
- Diameter : 0.25
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
Product Data
- UPC : 005171272986
- GTIN : 00051712729864
- Dimensions : 0.25 in x 0.25 in x 0.25 in (Length/Depth x Height x Width)
- Weight : 0.02
