Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SEPA36AT0030

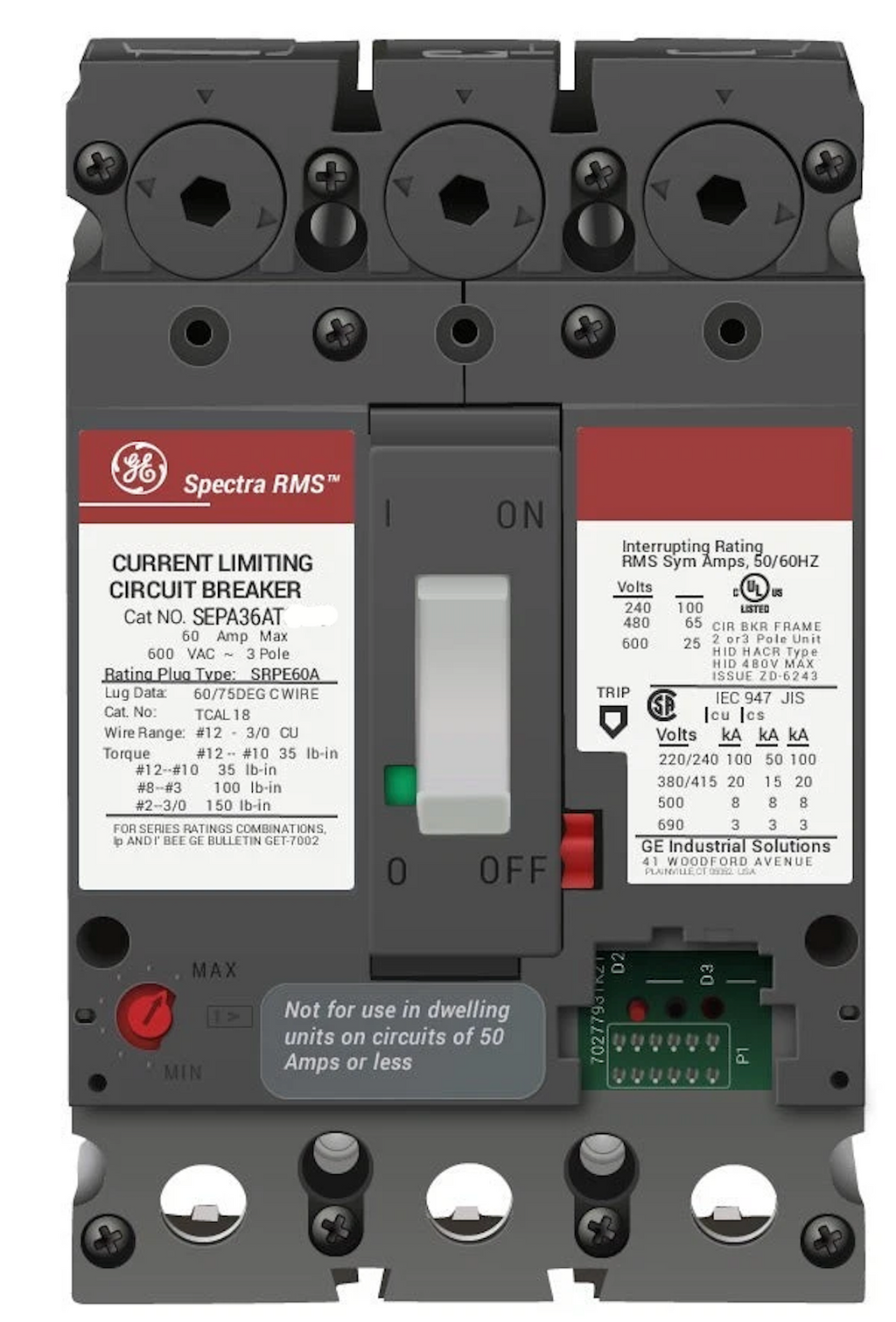

SEPA36AT0030 is a General Electric 30 ampere, 3-pole molded case circuit breaker with a SE frame and digital solid-state RMS trip unit designed for power distribution applications.This circuit breaker supports a maximum system voltage of 600 VAC (UL/CSA) and 690 VAC (IEC), with a high interrupting rating of up to 100 kA at 240 VAC and 25 kA at 600 VAC. It features thermal magnetic trip protection with long time, short time, and instantaneous trip functions, providing reliable current limiting and enhanced safety. The breaker is UL and CE certified and measures 6.31 inches high by 4.12 inches wide by 3.38 inches deep.
- Key Specifications
- Manufacturer: General Electric
- Part Number: SEPA36AT0030
- Amperage: 30 Amps
- Poles: 3
- Frame: SE Frame
- Voltage Rating: 600 VAC (UL/CSA), 690 VAC (IEC)
- Interrupting Rating: 100 kA at 240 VAC, 25 kA at 600 VAC (UL)
- Trip Unit: Digital Solid-State RMS Trip
- Mounting Type: Molded Case
- Certifications: UL, CE
- Dimensions: 6.31" H x 4.12" W x 3.38" D
Specifications
- Part Number: SEPA36AT0030
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SEPA
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 78316422707
- GTIN : 00783164227079
- Weight : 7
