SEC5 - Edison Fuses 5 Amp 480V Class G Time Delay Fuse

Save $27.21
SKU: SEC5-New
Condition: New
Price:
$16.83 $44.04
Stock:
20 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

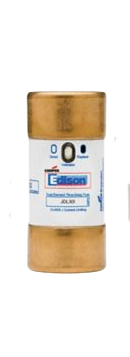

EDISON SEC5; EFSE 5A 480V CLASS G FUSE - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EDISON SEC5; EFSE 5A 480V CLASS G FUSE - Essential Electric Supply

Description

SEC5


SEC5 is a 5 amp, 480 volt Class G time delay fuse designed for reliable circuit protection.This Edison Fuses SEC5 fuse features a compact design with a 0.41 inch diameter and 1.31 inch length. It is rated for 480 VAC operation with a 100 kA interrupting rating, making it suitable for branch circuit protection. The fuse has time delay (time lag) characteristics to prevent nuisance blowing on temporary overloads. It is UL and CSA C22.2 approved, ensuring compliance with safety standards.
    Key Specifications
    • Amperage: 5 Amp
    • Voltage Rating: 480 VAC
    • Fuse Type: Class G
    • Time Delay (Time Lag) Characteristics
    • Interrupt Rating: 100,000 Amps (100 kA)
    • Dimensions: 0.41 inch diameter, 1.31 inch length
    • Approvals: UL, CSA C22.2
    • Compact size with varying length rejection feature
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: SEC5
    • Brand : Edison Fuses

    Product Data

    • UPC : 78263480234
    • GTIN : 00782634802341
    • Dimensions : 1.31 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
    • Weight : 0.001
