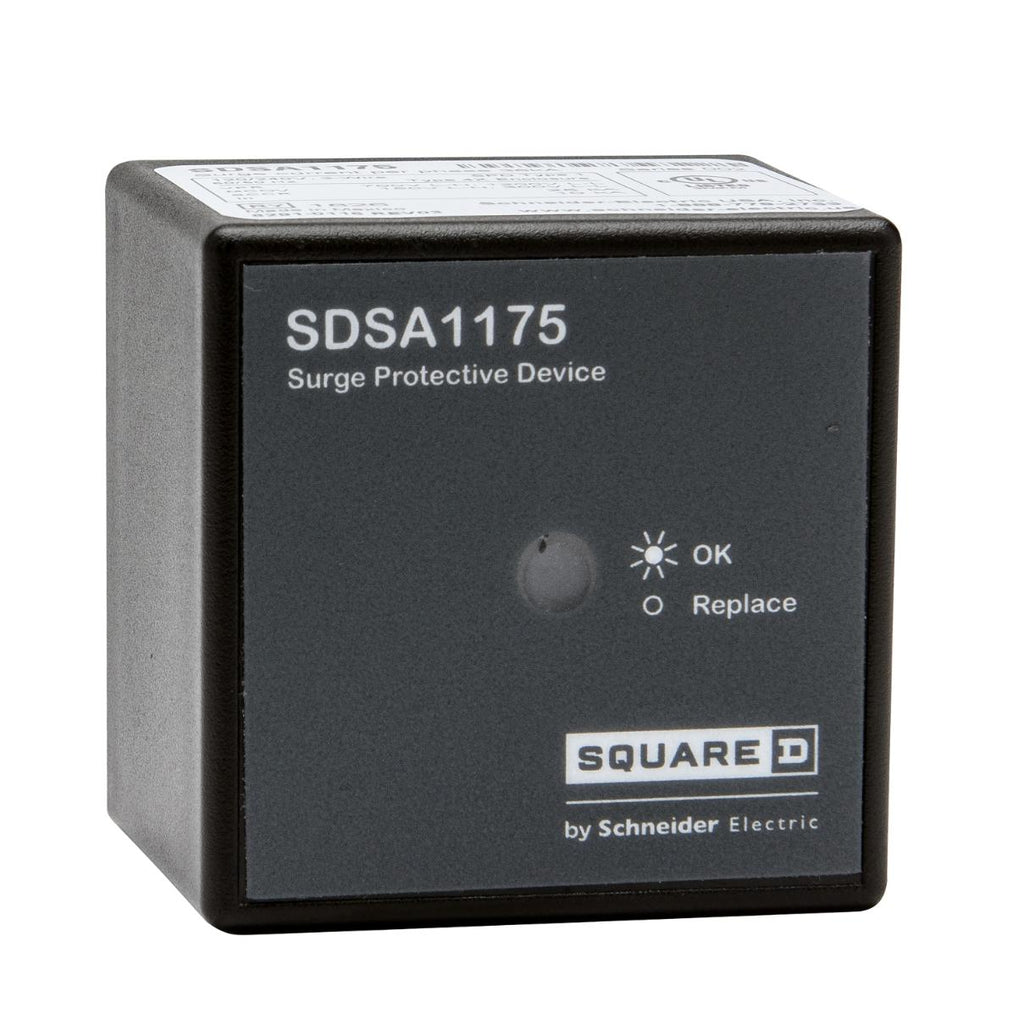

SDSA1175 - Square D Surge Protection Device 36kA 120/240VAC 1P 3W NEMA 4X

SDSA1175

SDSA1175 is a Square D Surgelogic Series Type 1 Surge Protective Device designed for 120/240 VAC single-phase, three-wire services. This compact surge arrester provides reliable protection for sensitive electrical equipment and is suitable for indoor or outdoor installation. The SDSA1175 features a maximum continuous operating voltage (MCOV) of 150V L-N, 300V L-L, and a surge current rating of 36kA per phase. It is rated for a short circuit current of 25kA and is constructed with a NEMA 4X enclosure for durability in harsh environments. The device is easy to install with parallel connection using 14 AWG solid wire and is suitable for mounting adjacent to power panels or inside control cabinets.

• Part Number: SDSA1175
• Manufacturer: Square D
• Series: Surgelogic
• Type: Type 1 Surge Protective Device
• System Voltage: 120/240 VAC
• Phases: 1 Phase
• Wiring Configuration: 3-Wire
• Surge Current: 36kA per phase
• SCCR: 25kA
• MCOV: 150V L-N, 300V L-L
• Enclosure Rating: NEMA 4X
• Mounting: Back Nipple
• Approvals: UL 1449 4th Edition, CSA
• Connection: 14 AWG solid wire, parallel
• Warranty: 2 years

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SDSA1175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : SDS
• Voltage : 120/240 AC

Product Data

• UPC : 785901210870
• GTIN : 00785901210870
• Country of Origin : Mexico
• Dimensions : 2.25 in (57.15 mm) x 2.25 in (57.15 mm) x 2.7 in (68.6 mm) (Height x Width x Depth)
• Weight : 0.73
• Standards : UL 1449:ed. 4: type I, NEC 285, CSA C22.2 No 8
• Certification : CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
