Product Info
- Manufacturer:Fuji
- Sub-Category:Contactor
Description

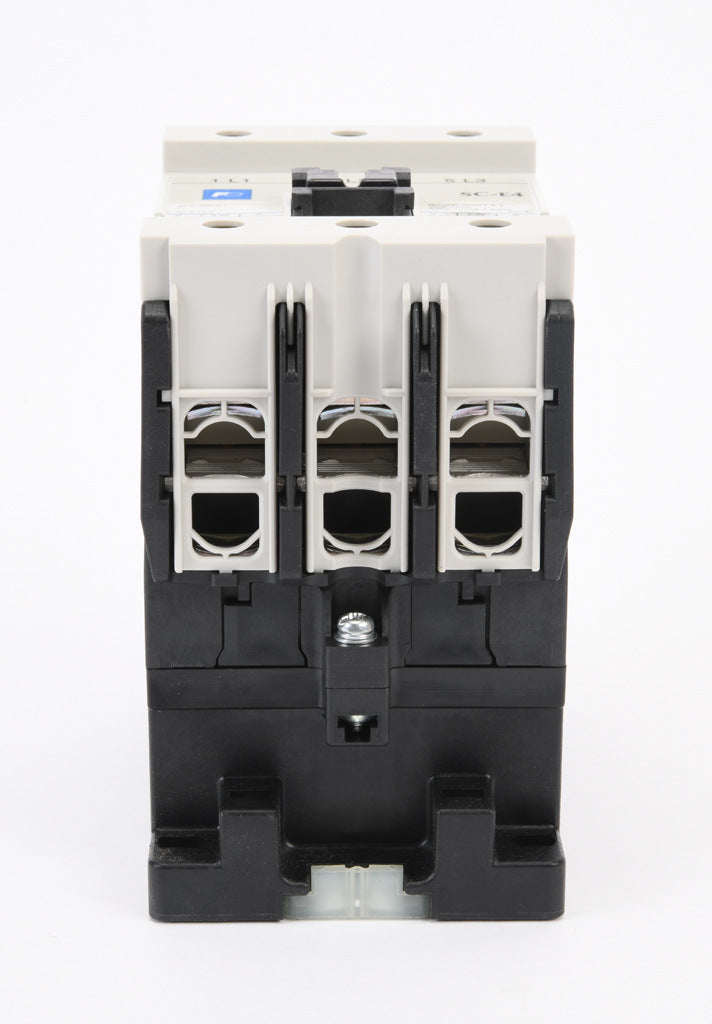

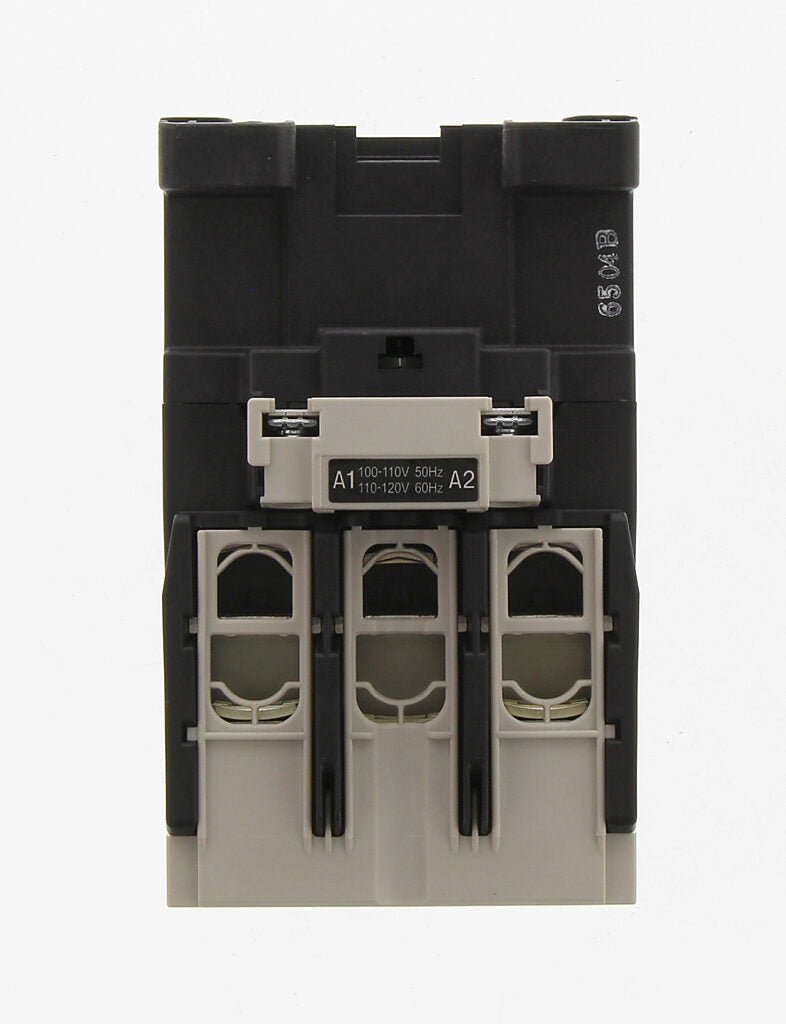

SC-E4-110VAC

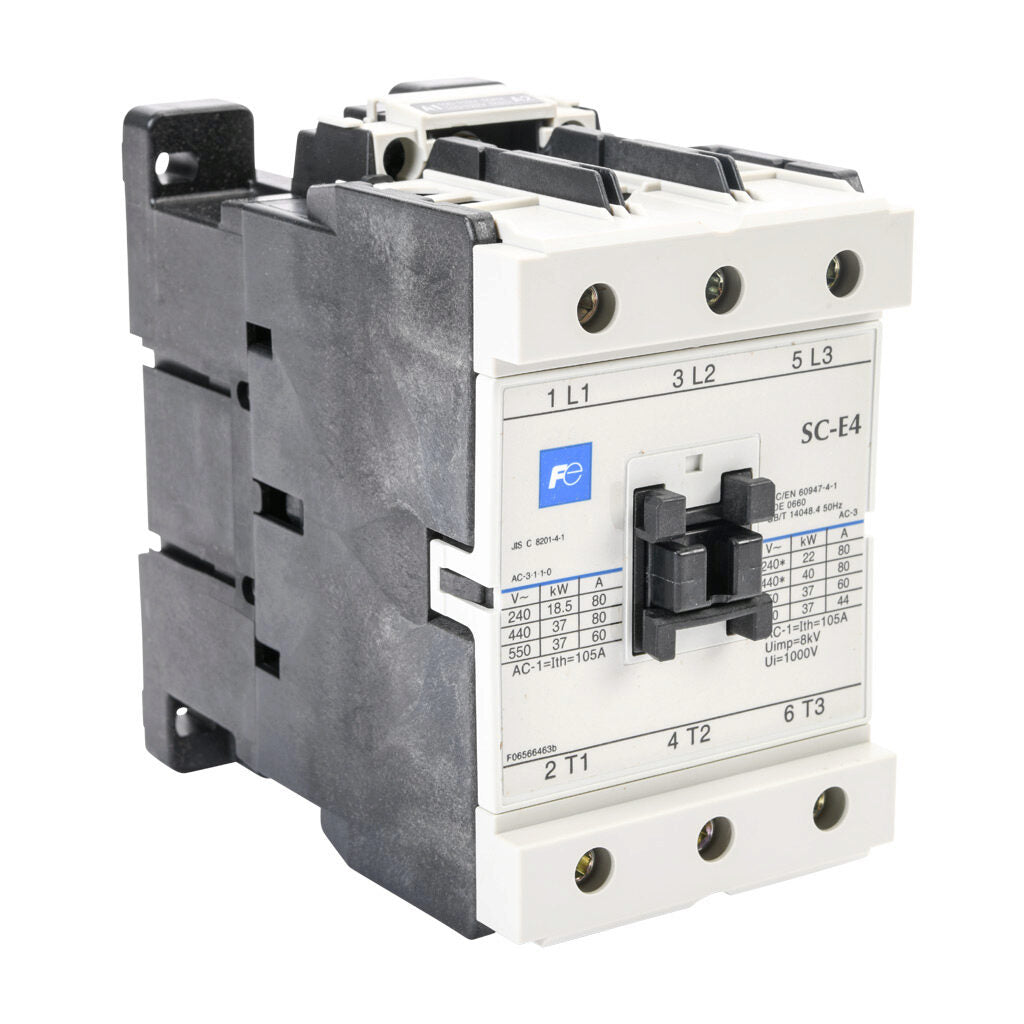

SC-E4-110VAC is a Fuji Electric IEC contactor designed for motor control applications with an 80A rating and a 110VAC coil voltage.This 3-pole, non-reversing contactor features a 67mm frame width and is suitable for controlling motors up to 80 amps. It operates on a 110VAC coil (50Hz) or 120VAC coil (60Hz) and complies with IEC 60947-4-1 and UL 508 standards. The contactor is compact, reliable, and manufactured in Japan, with auxiliary contacts sold separately.
- Key Specifications
- Rated Current: 80 Amps
- Poles: 3 Normally Open Power Poles

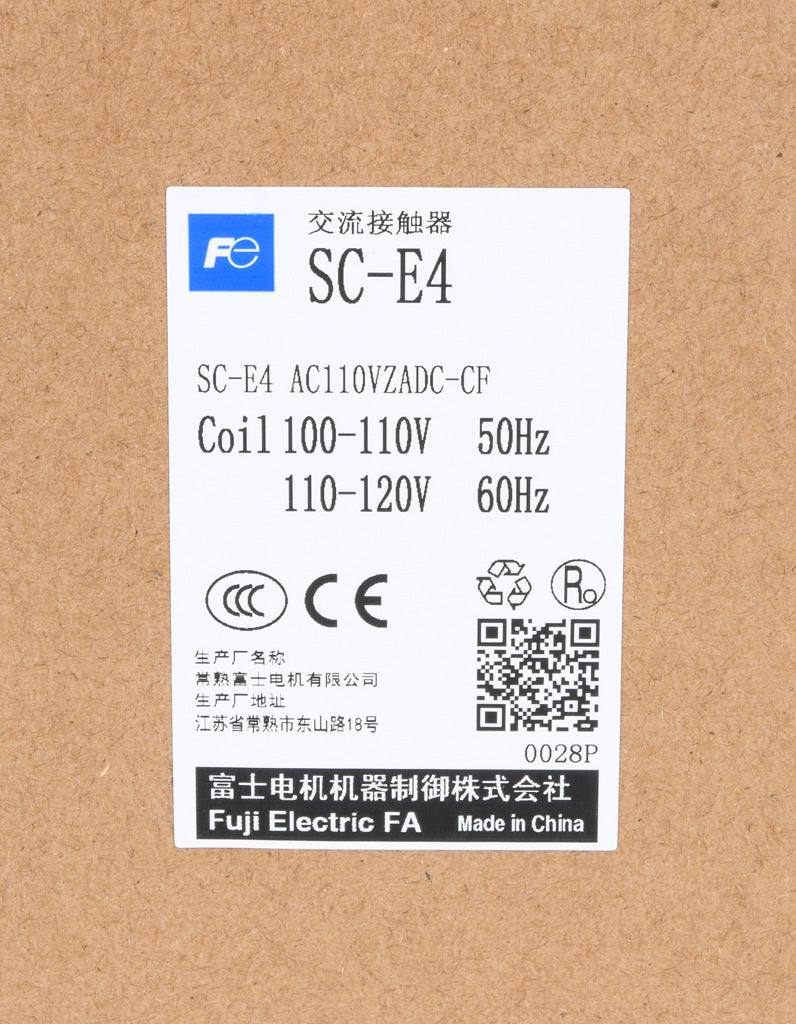

- Coil Voltage: 110VAC (50Hz) / 120VAC (60Hz)
- Frame Width: 67mm
- Mounting Type: DIN Rail / Panel Mount
- Interrupt Rating: Meets IEC 60947-4-1 and UL 508
- Non-Reversing Contactor
- Country of Origin: Japan
- Certifications: cULus, CSA, CE, JIS, IEC
- Auxiliary Contacts: Sold Separately
- Part Number: SC-E4-110VAC
- Manufacturer : Fuji
- Category : Motor Control
- Item Subcategory : Contactor
- Family : SC-E Series
- Type : SC-E
- Voltage : 690
- Amperage : 80
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
- Weight : 1
