Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

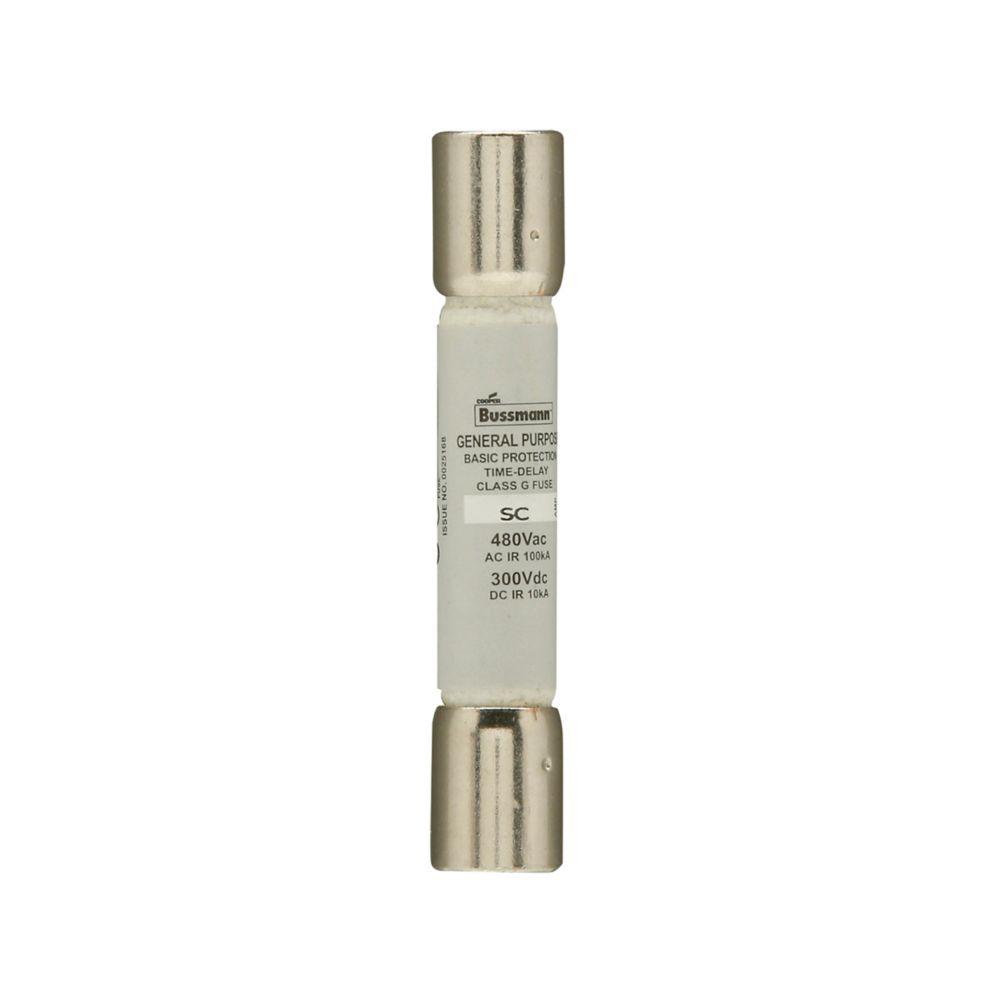

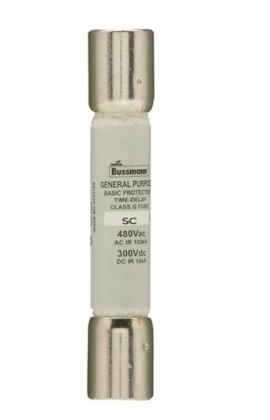

SC-50
SC-50 is a 50 Amp, 480 Volt Class G time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This SC Series fuse provides size-rejecting, current-limiting protection with a 100kA interrupting rating at 480 Vac and 10kA at 300 Vdc. It features a time-delay characteristic suitable for circuits requiring temporary overload tolerance. The fuse is UL Listed to Standard 248-5 and CSA Certified, ensuring compliance with industry safety standards.
- Amperage: 50 Amps
- Voltage Rating: 480 Vac / 300 Vdc
- Fuse Type: Class G
- Time-Delay Characteristic
- Interrupting Rating: 100kA AC, 10kA DC
- Size-Rejecting Design
- UL Listed, CSA Certified
- Physical Size: 0.41" x 2.25"
- Current Limiting
- RoHS Compliant
Specifications
- Part Number: SC-50
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : SC Series
- Type : SC
- Voltage : 480
- Amperage : 50
- AIC rating : 100kA@480V
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 051712250504
- GTIN : 00051712250504
- Country of Origin : Mexico
- Dimensions : x 2-1/4 in x
- Weight : 1
- Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
