SC-40 - Bussmann Eaton Cooper Bussmann 40A 480V Class G Time Delay Fuse

SC-40

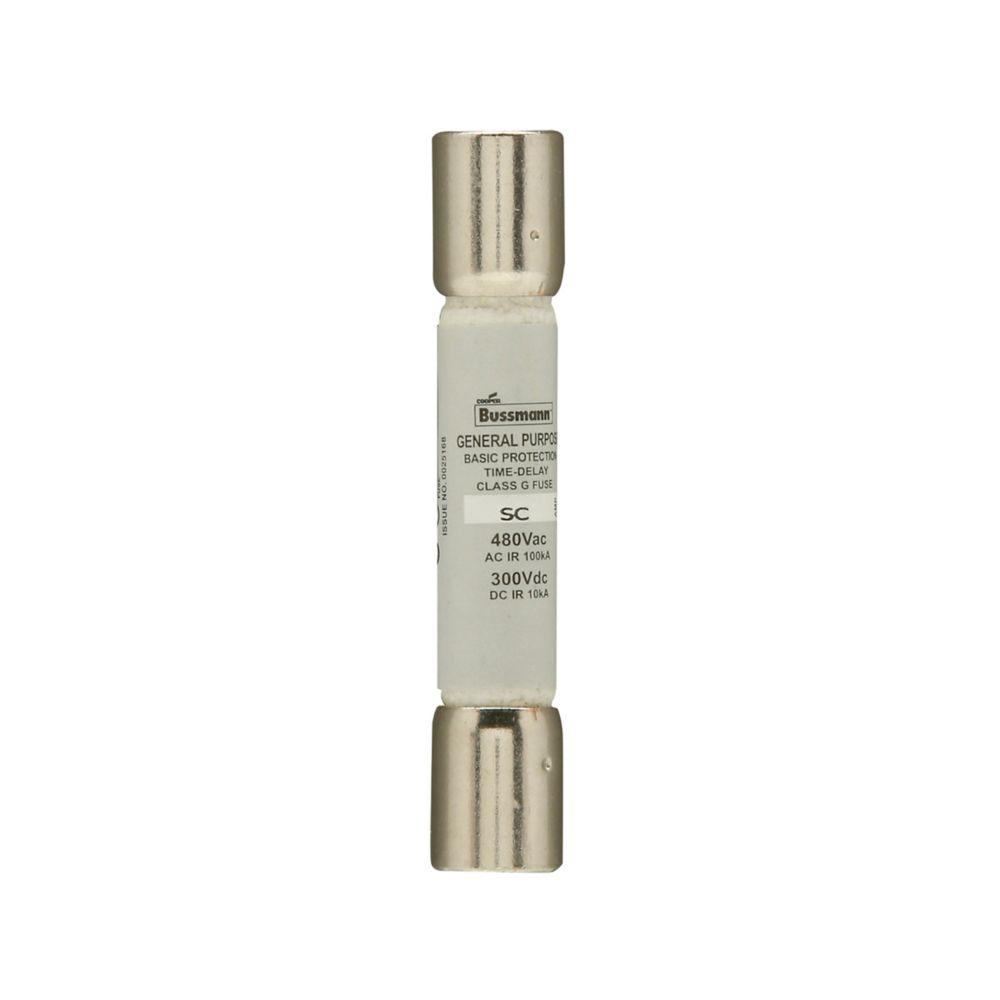

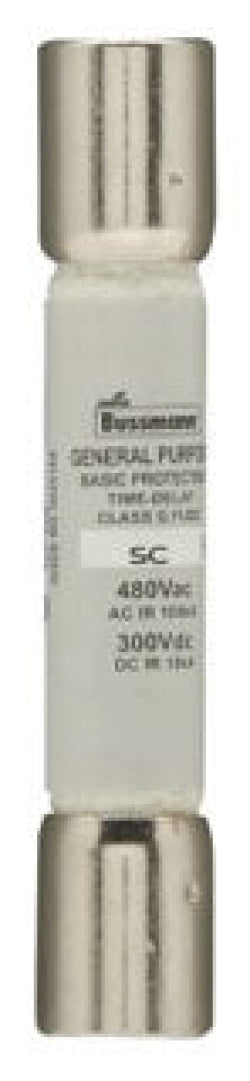

SC-40 is a 40 Amp, 480 Volt AC Class G time delay fuse by Bussmann, Eaton, and Cooper Bussmann designed for reliable circuit protection.This SC-40 fuse features current limiting and time delay characteristics suitable for protecting circuits with transient surges. It has a physical size of 0.41" x 2.25", ferrule end connections, and is UL Listed to Std. 248-5 Class G standards. The fuse supports an interrupting rating of 100,000 AIC RMS at 480 VAC and 10,000 A at 170 VDC. It is CSA certified and RoHS compliant, making it suitable for industrial and commercial applications requiring dependable overcurrent protection.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 480 VAC / 300 VDC
• Fuse Class: Class G
• Time Delay: Yes
• Interrupting Rating: 100,000 AIC RMS @ 480 VAC
• Interrupting Rating DC: 10,000 A @ 170 VDC
• Physical Size: 0.41" x 2.25"
• Mounting Type: In-line fuse holder compatible
• End Type: Ferrule
• Certifications: UL Listed, CSA Certified, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-40
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 480
• Amperage : 40
• AIC rating : 100kA@480V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250405
• GTIN : 00051712250405
• Country of Origin : China
• Dimensions : 2.25 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
