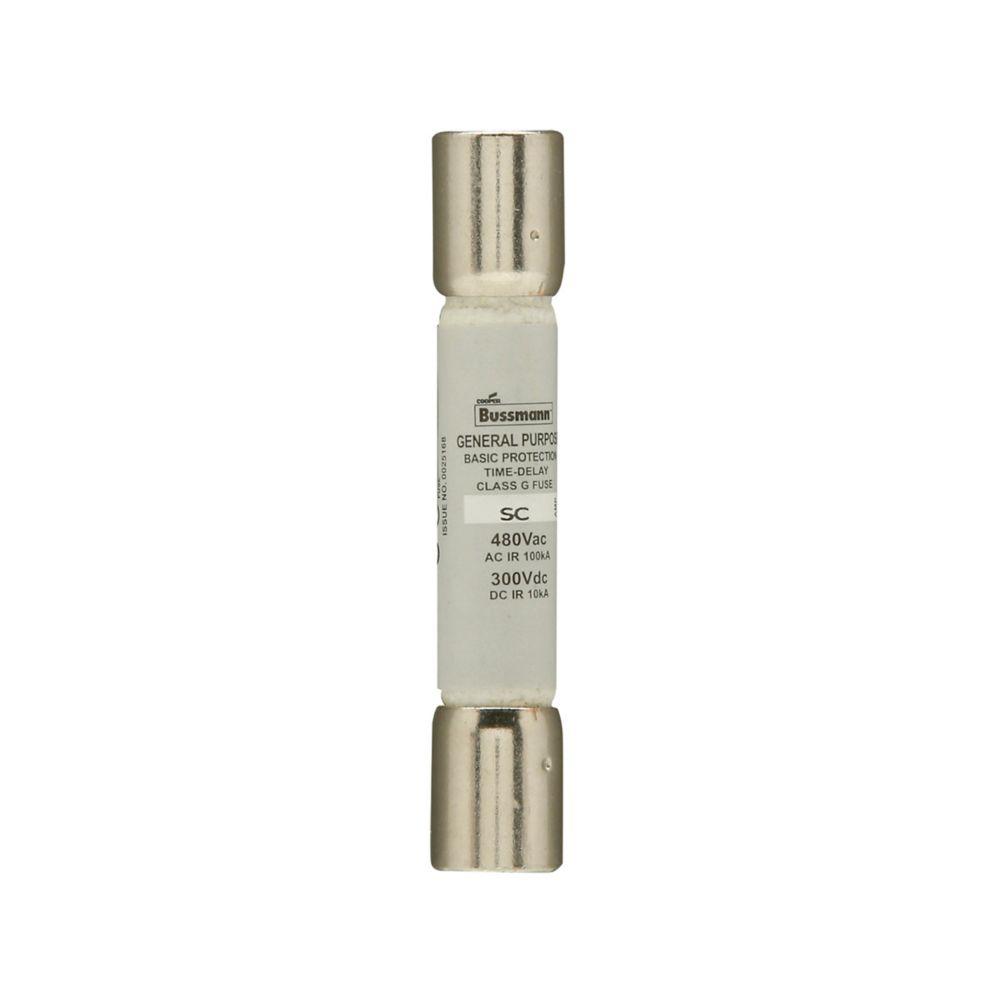

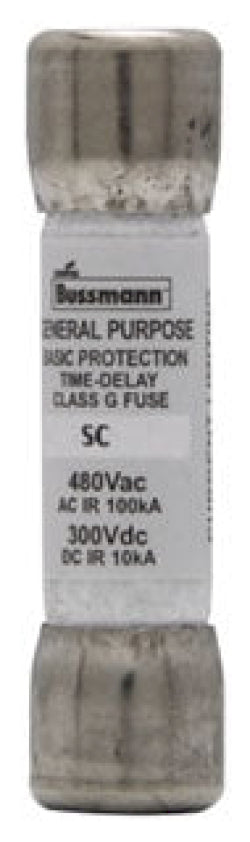

SC-35 - Eaton Bussmann 35A 480VAC/300VDC Class G Time-Delay Fuse, Current Limiting, Size-Rejecting

SC-35

SC-35 is a 35 Amp, Class G time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This SC series fuse features current-limiting, size-rejecting design with a voltage rating of 480VAC and 300VDC. It provides time-delay operation suitable for motor and transformer protection with a minimum interrupt rating of 100kA at 480VAC and 10kA at 300VDC. The fuse is UL listed, CSA certified, and RoHS compliant, ensuring safety and environmental standards.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 480VAC / 300VDC
• Fuse Type: Time-Delay (Current Limiting)
• Class: G
• Interrupting Rating: 100kA AC / 10kA DC
• Mounting Type: Size-Rejecting
• Agency Certifications: UL Listed, CSA Certified, RoHS Compliant
• Physical Size: 0.41" x 2.25"
• Non-indicating, ferrule end x ferrule end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-35
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 480
• Amperage : 35
• AIC rating : 100kA@480V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250351
• GTIN : 00051712250351
• Country of Origin : China
• Dimensions : 0.41 in x 2.25 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
