SC-25 - Bussmann Eaton Cooper Bussmann 25A 480V Class G Time Delay Fuse

SC-25

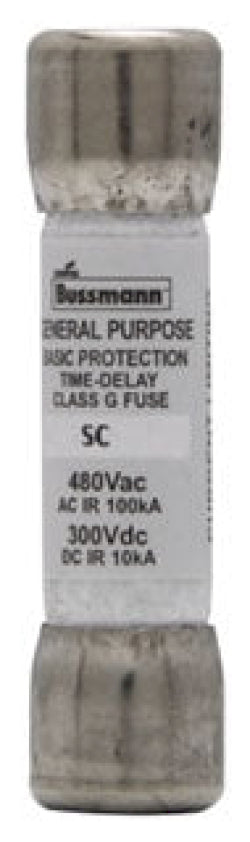

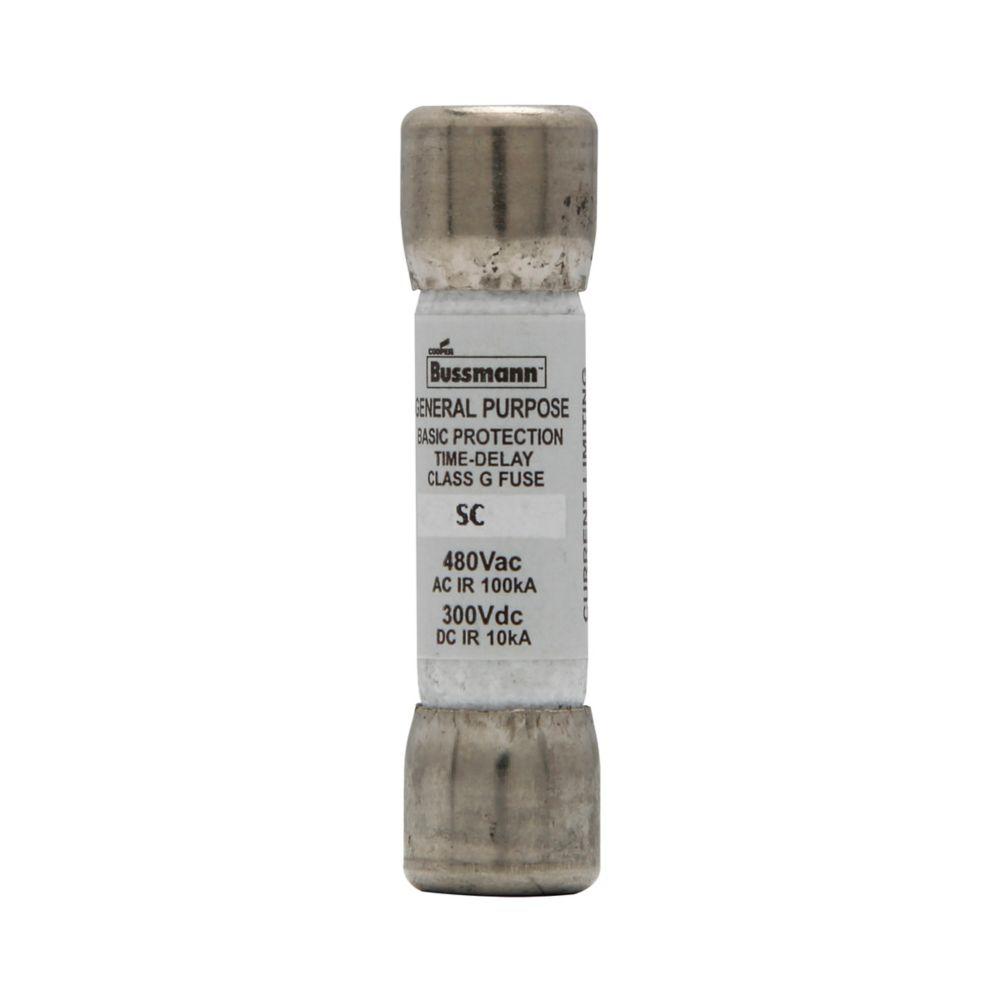

SC-25 is a 25 Amp, 480 Volt AC Class G time delay fuse from Bussmann, Eaton, and Cooper Bussmann designed for reliable circuit protection.This SC-25 fuse features a current-limiting, time-delay design suitable for protecting circuits up to 480VAC and 300VDC. It has a physical size of 0.41" x 1.62", a high interrupting rating of 100,000 AIC RMS at 480VAC, and 10,000A at 170VDC. The fuse is UL Listed to Standard 248-5, CSA Certified, and meets Class G requirements with a rejection style to prevent overfusing.

Key Specifications
• Amperage: 25 Amps
• Voltage Rating AC: 480 Volts
• Voltage Rating DC: 300 Volts
• Fuse Type: Time Delay (Slow Blow)
• Interrupting Rating: 100,000 AIC RMS @ 480VAC
• Interrupting Rating DC: 10,000 A @ 170VDC
• Class: UL Class G
• Physical Size: 0.41" x 1.62"
• Mounting Type: Size-rejecting, ferrule end x ferrule end
• Certifications: UL Listed, CSA Certified
• Series: Bussmann SC Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 480
• Amperage : 25
• AIC rating : 100kA@480V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250252
• GTIN : 00051712250252
• Country of Origin : Mexico
• Dimensions : 1.62 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
