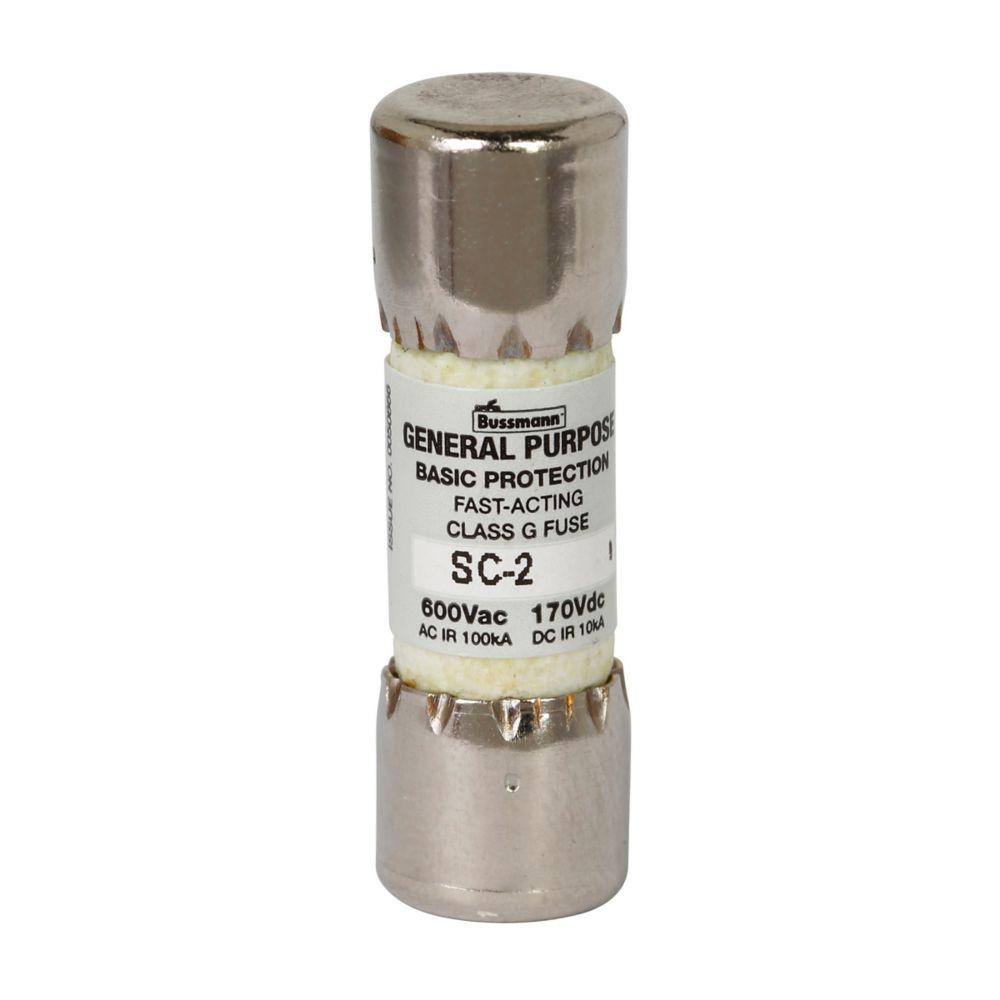

SC-2 - Eaton Bussmann 2A 600V Class G Fast-Acting Fuse with 100kA Interrupt Rating

SC-2

SC-2 is a Eaton Bussmann Class G fast-acting fuse rated at 2 amps and 600 volts AC for reliable circuit protection.This SC-2 fuse features a current limiting design with a 100 kA interrupt rating at 600 VAC and 10 kA at 170 VDC. It has ferrule end connections, is non-indicating, and complies with UL Class G standards. The fuse is size-rejecting to prevent overfusing and is RoHS compliant and CE marked.

• Amperage: 2 A
• Voltage Rating: 600 VAC, 170 VDC
• Interrupt Rating: 100 kA at 600 VAC, 10 kA at 170 VDC
• Class: UL Class G
• Fuse Type: Fast-acting, current limiting
• Connection: Ferrule end x ferrule end
• Physical Size: 1.31 in length x 0.41 in diameter
• Non-indicating fuse
• Mounting Type: Size-rejecting
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 600
• Amperage : 2
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250023
• GTIN : 00785023143742
• Country of Origin : Mexico
• Dimensions : 1.31 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
