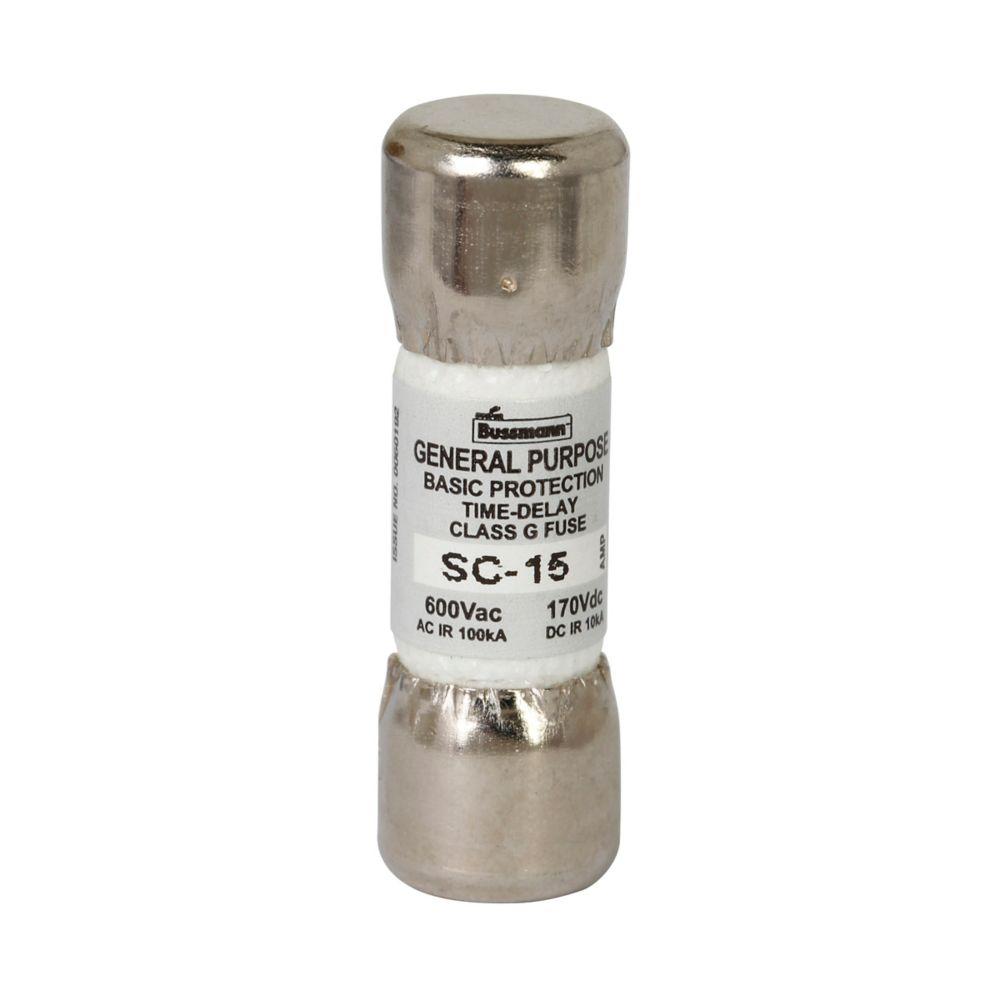

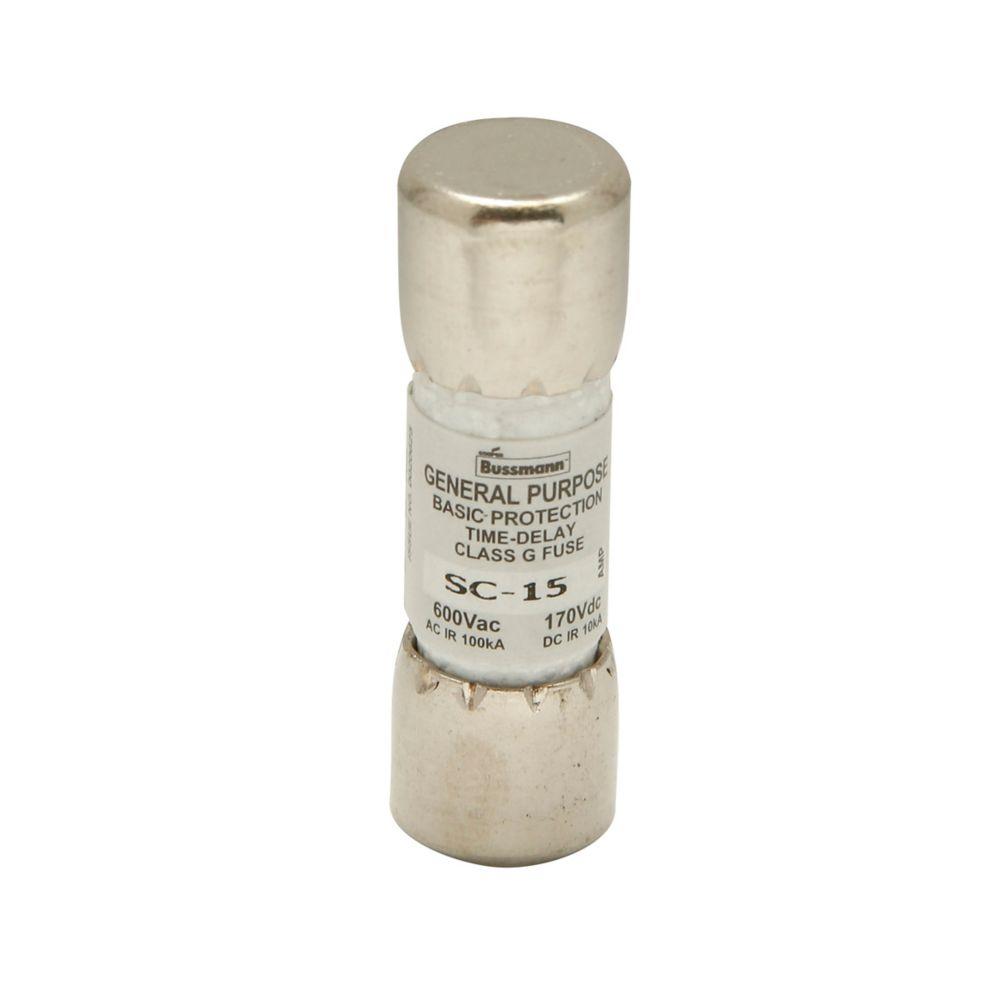

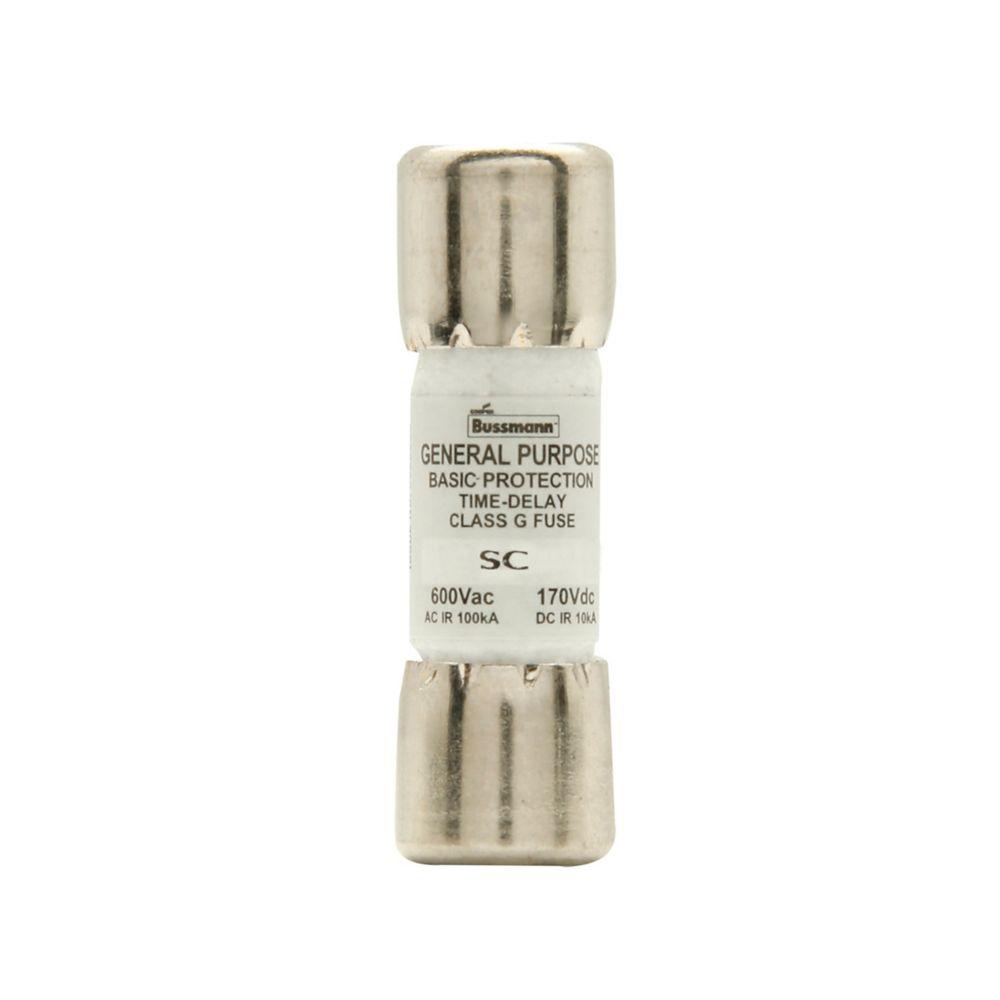

SC-15 - Eaton Bussmann 15A 600V Class G Time Delay Fuse

SC-15

SC-15 is a 15 Amp, 600 Volt AC Class G time delay fuse from Eaton Bussmann designed for reliable circuit protection.This SC series fuse features current limiting and time-delay characteristics, with a physical size of 0.41" diameter by 1.31" length. It has an interrupting rating of 100,000 AIC RMS at 600 VAC and 10,000 A at 170 VDC. The fuse is UL Listed to Standard 248-5, Class G, and CSA Certified, providing trusted safety and performance.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 600 VAC, 170 VDC
• Fuse Class: G
• Time Delay: Yes
• Interrupting Rating: 100,000 AIC @ 600 VAC, 10,000 A @ 170 VDC
• Physical Size: 0.41" x 1.31"
• Mounting Type: Ferrule end x ferrule end
• UL Listed, CSA Certified
• Current Limiting
• Series: SC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-15
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 600
• Amperage : 15
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250153
• GTIN : 00051712250153
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.31 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
