SBS5 - Mersen 5 Amp 600 Volt Fast Acting Midget Fuse, 100kA Interrupt Rating, Cartridge Mount

SBS5

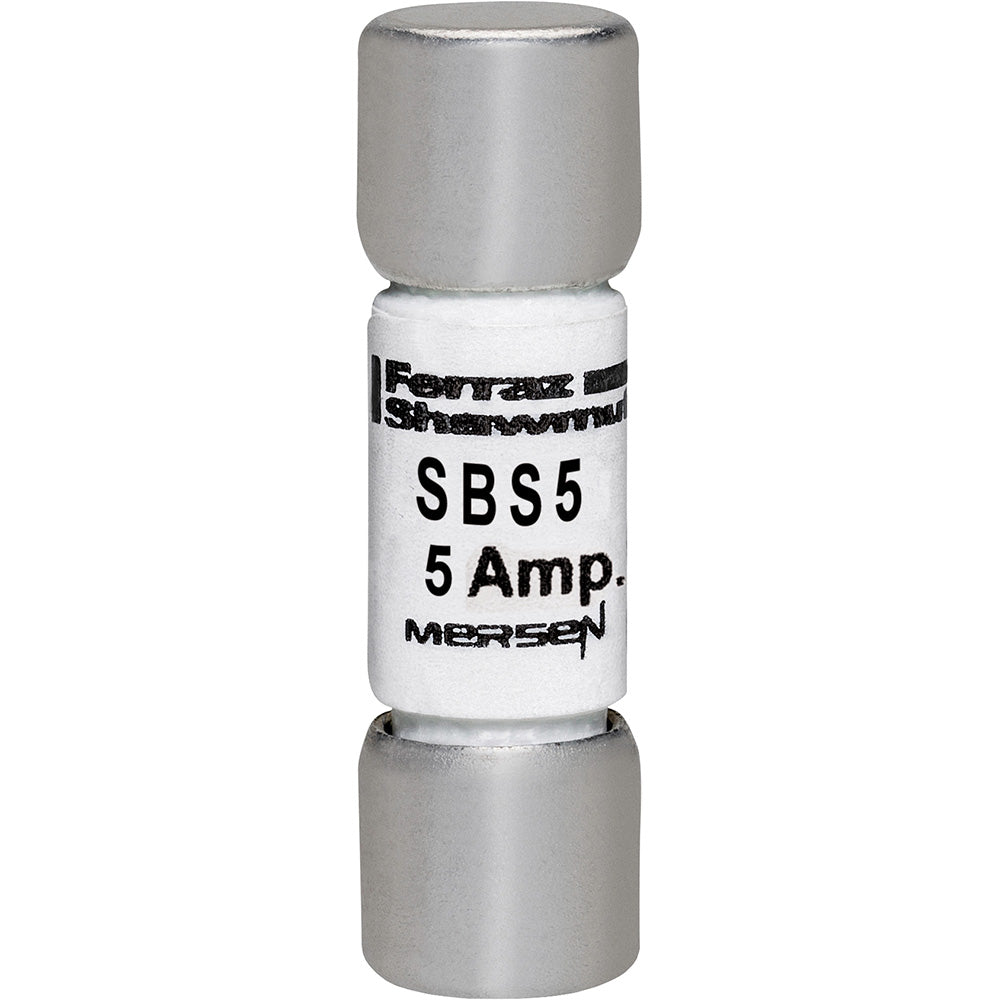

SBS5 is a 5 Amp, 600 Volt AC fast acting midget fuse from Mersen designed for general purpose circuit protection.SBS5 features a fiberglass body with unique small dimensions (13/32" x 1 3/8") for maximum design flexibility. It has a cartridge mounting type and a high interrupting rating of 100,000 AIC at 600 VAC. This fuse is UL Listed to standard 248-14 and CSA Certified to C22.2 No. 248.14, making it suitable for demanding electrical applications. It is compatible with UltraSafe™ fuse holders and can replace Littelfuse BLS and Bussmann BBS fuses.

Key Specifications
• Amperage: 5 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Fast Acting Midget
• Mounting Type: Cartridge
• Interrupt Rating: 100,000 AIC @ 600 VAC
• Body Material: Fiberglass
• Dimensions: 13/32" diameter x 1 3/8" length
• Certifications: UL 248-14, CSA C22.2 No. 248.14
• Series: SBS Midget Fuse
• Replaces: Littelfuse BLS, Bussmann BBS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SBS5
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SBS
• Type : SBS
• Voltage : 600
• Amperage : 5
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : Ferrule
• Barrels : 1

Product Data

• UPC : 782001907808
• GTIN : 00782001907808
• Weight : 1
