Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
SBS10

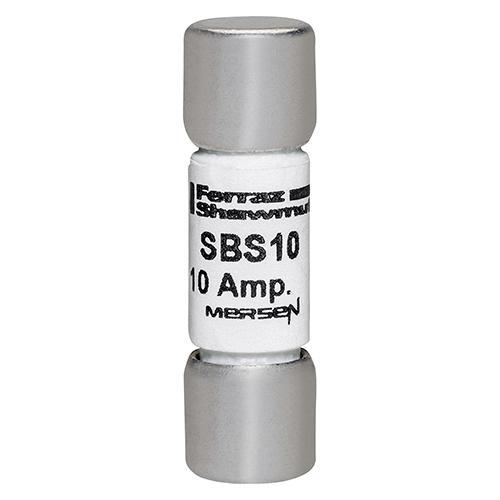

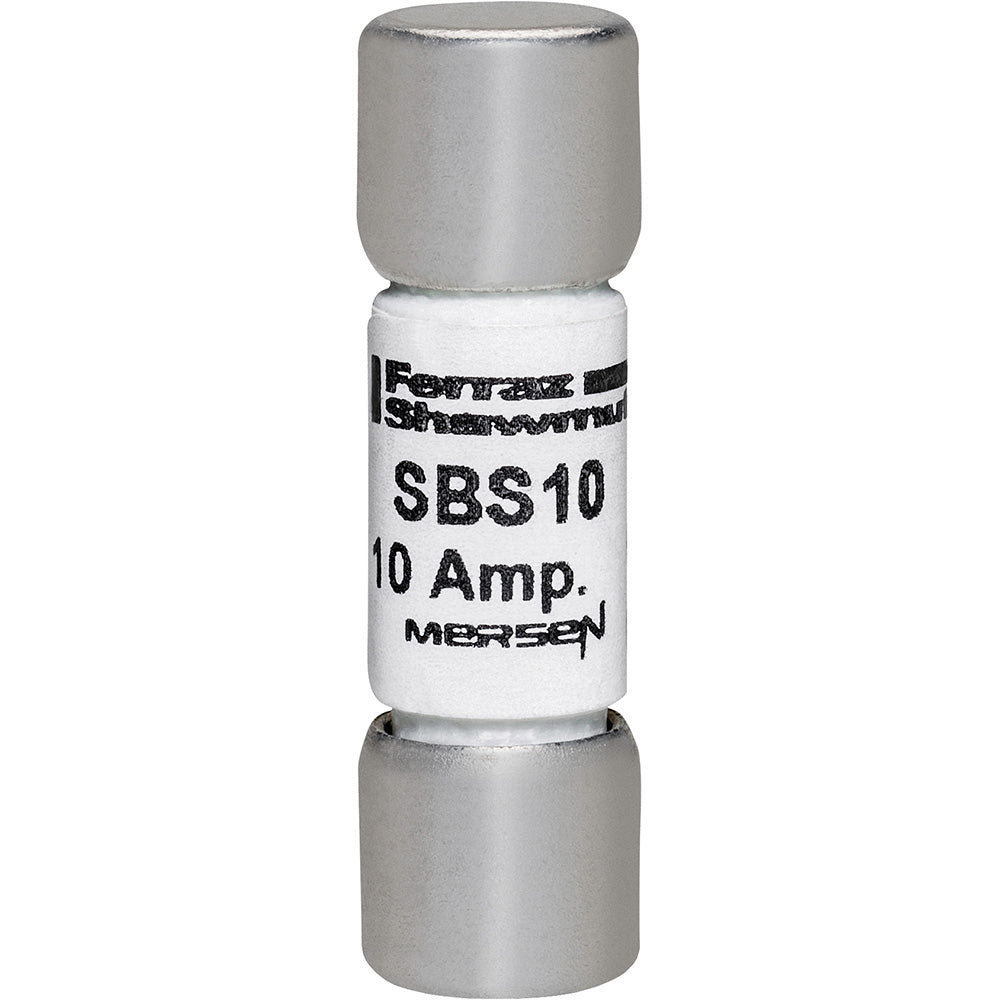

SBS10 is a 10 amp fast acting midget fuse from Mersen Ferraz Shawmut designed for low voltage applications up to 600 volts.SBS10 features a fiberglass cylindrical body with dimensions of approximately 13/32 inch diameter by 1 3/8 inch length. It offers a high interrupting rating of 100 kiloamps AC, meeting UL 248-14 and CSA C22.2 No. 59.2 certifications for safety and reliability. This fuse is ideal for general purpose circuit protection requiring fast response.
- Key Specifications
- Amperage: 10 Amps
- Voltage Rating: 600 Volts AC
- Fuse Type: Fast Acting
- Body Material: Fiberglass
- Body Size: 13/32 inch diameter x 1 3/8 inch length
- Interrupting Rating: 100,000 Amps (100 kA)
- Fuse Class: Midget
- Certifications: UL 248-14, CSA C22.2 No. 59.2
- Mounting Type: Cartridge style
- Manufacturer: Mersen Ferraz Shawmut
Specifications
- Part Number: SBS10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : SBS
- Type : SBS
- Voltage : 600
- Amperage : 10
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
Product Data
- UPC : 782001907846
- GTIN : 00782001907846
- Country of Origin : Mexico
- Dimensions : x 1.38 in x
- Weight : 0.01
