Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
SBS1-6/10

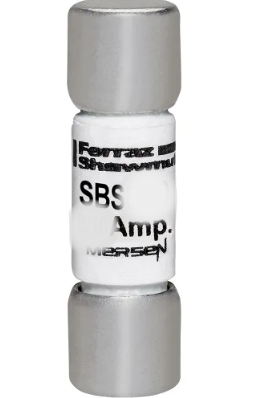

SBS1-6/10 is a Mersen Ferraz Shawmut fast acting midget fuse rated for 1.6 amps and 600 volts AC with a 100kA interrupt rating.This SBS1 series fuse features a single pole design with a fiberglass body and clip mounting for secure installation. It is constructed with a GMG insulating material and tin-plated copper terminals, ensuring durability and reliable electrical performance. The fuse is UL and CSA certified and RoHS compliant, suitable for low voltage AC applications requiring fast-acting protection.
- Amperage: 1.6A
- Voltage Rating: 600V AC
- Interrupt Rating: 100kA
- Poles: 1
- Mounting Type: Clip
- Fuse Type: Fast Acting Midget
- Body Material: Fiberglass (GMG)
- Terminal Material: Tin Plated Copper
- Frame/Series: SBS1
- Frequency: 50/60 Hz
- Certifications: UL Listed, CSA Certified, RoHS Compliant
Specifications
- Part Number: SBS1-6/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : SBS
- Type : SBS
- Voltage : 600
- Amperage : 1
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
Product Data
- UPC : 78200190775
- GTIN : 00782001907754
- Weight : 5
