Product Info
- Manufacturer:Eaton
- Sub-Category:Soft Start
Description

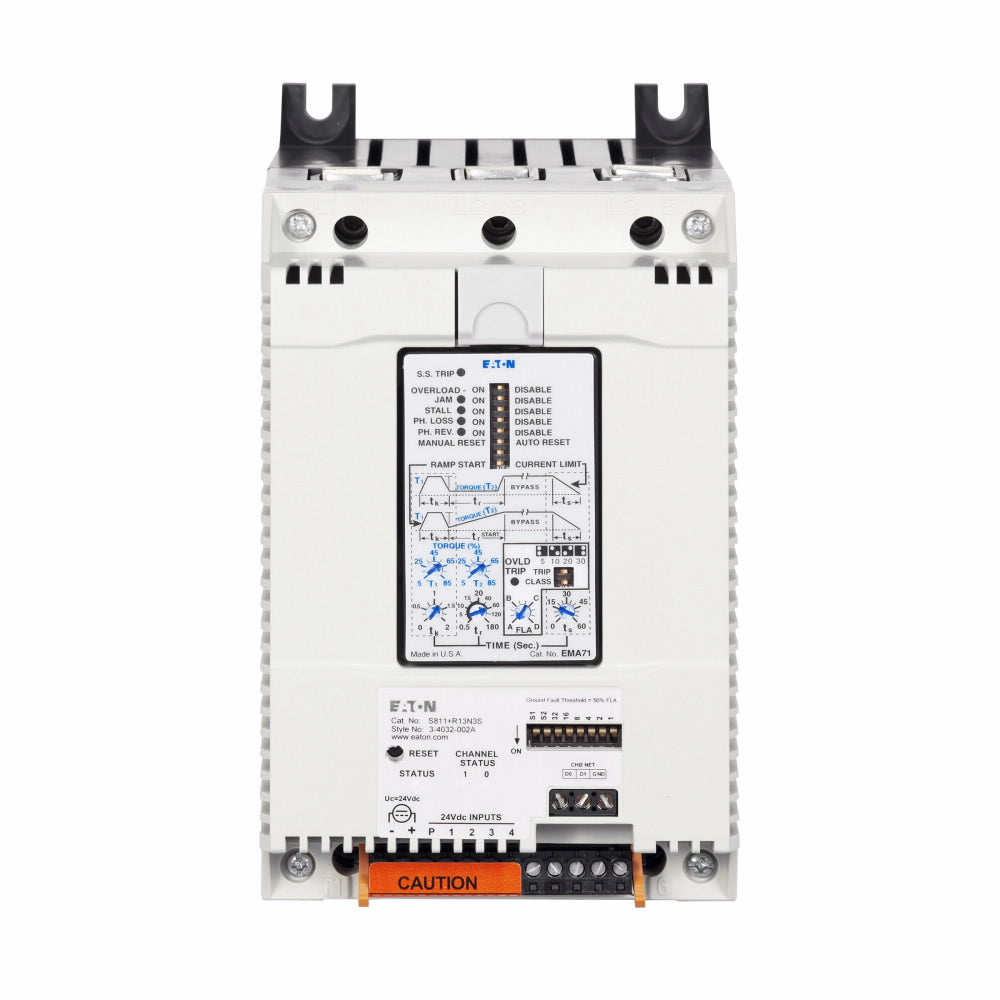

S801+R13N3S
S801+R13N3S is an Eaton S801+ series soft starter designed for smooth, controlled starting and stopping of three-phase motors. This unit features advanced electronic protection and a compact R-frame design for efficient panel integration. The S801+R13N3S soft starter utilizes six SCRs in a full wave power bridge to control voltage and torque applied to the motor, reducing mechanical stress and electrical inrush. It supports a wide operating voltage range and includes features such as electronic overload protection, phase loss detection, and Modbus RTU communication for remote monitoring and control.
- Amperage Rating: 135A
- Operating Voltage: 200-600V AC
- Number of Poles: Three-pole
- Frame Size: R-frame
- Frequency Rating: 47-63 Hz
- Power Supply: 24 Vdc
- Display: LCD
- Communication: Modbus RTU
- Module Interface: CIM
- NEMA Rating: NEMA 0
- Operating Temperature: -30°C to 50°C
- Certifications: CE Marked, CSA Certified, ABS Certified, IEC 60947-4-2
Specifications
- Part Number: S801+R13N3S
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Soft Start
- Family : S801+
- Type : S801+
- Voltage : 600
- Amperage : 135
- Phase : 3
- Poles : 3
- Horse Power : 100
Product Data
- UPC : 786685558813
- GTIN : 00786685558813
- Country of Origin : Dominican Republic
- Dimensions : 11.1 in x 11.7 in x 8.7 in (Length/Depth x Height x Width)
- Weight : 12.4
